MAINTENANCE
SERVICE PROCEDURE
CHECK DISC BRAKE
WARNING
A small amount of oil will come out from the inspection plug hole, so do not look through the plug hole when the brake is applied.
PERIODICAL REPLACEMENT OF DISC BRAKE
Inspection: Every 12 months or 2000 hours.
Disassembly: If the disc brake has reached the wear limit or there is any problem in the brake system, judge if it is
necessary to carry out disassembly or maintenance.

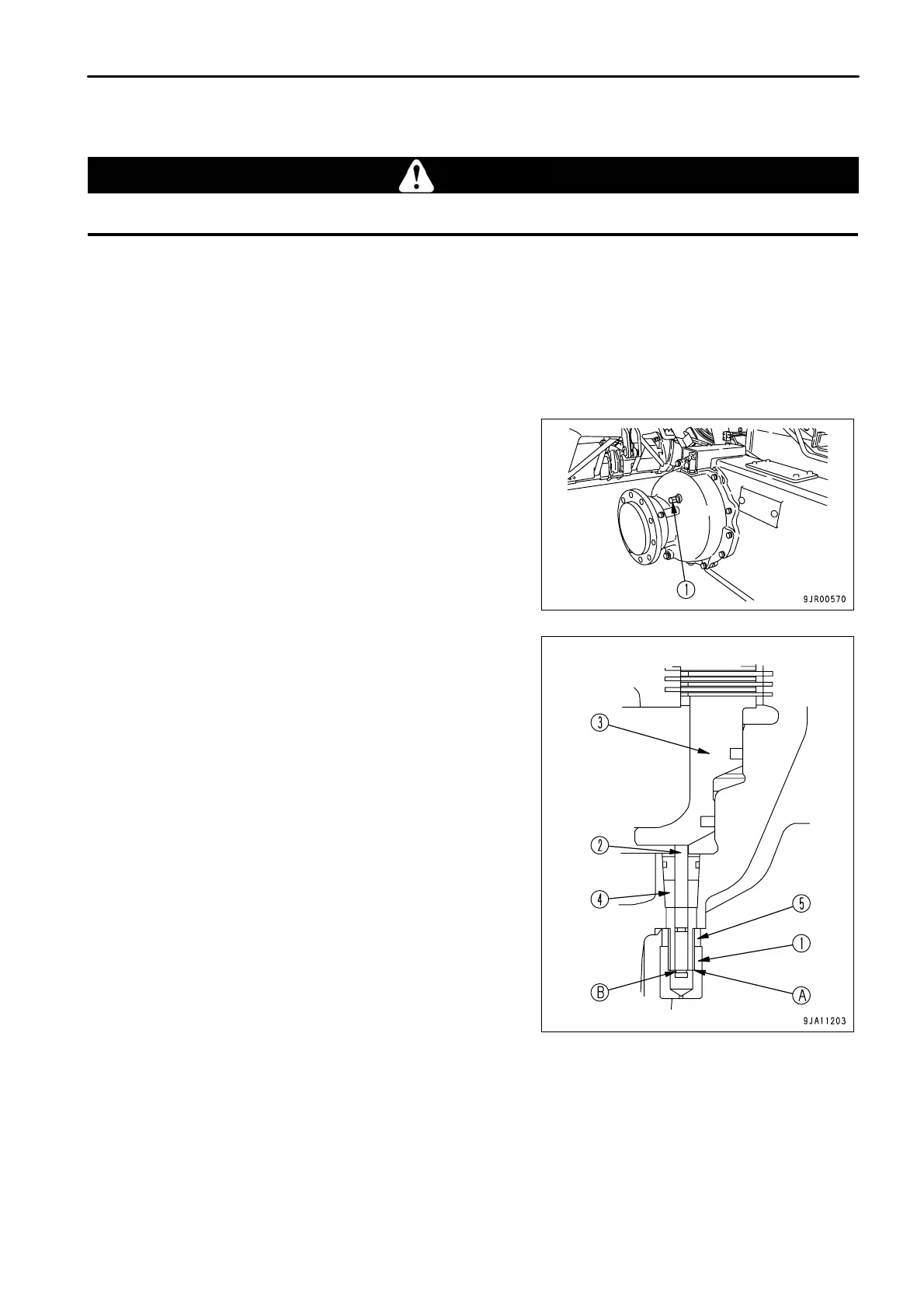

METHOD OF CHECKING BRAKE DISC WEAR
1.
Remove cap (1) from the wear indicator.
2.
Depress the brake pedal and, leaving the brake applied, thrust
down until the gauge (2) contacts piston (3).
3.
Turn guide (4) until top surface (A) of guide (4) coincides with
below-groove line (B) of gauge (2).
4. Tighten nut (5) to fix guide (4).
5.
Install cap (1).
