MAINTENANCE
SERVICE PROCEDURE
MAINTENANCE
SERVICE PROCEDURE

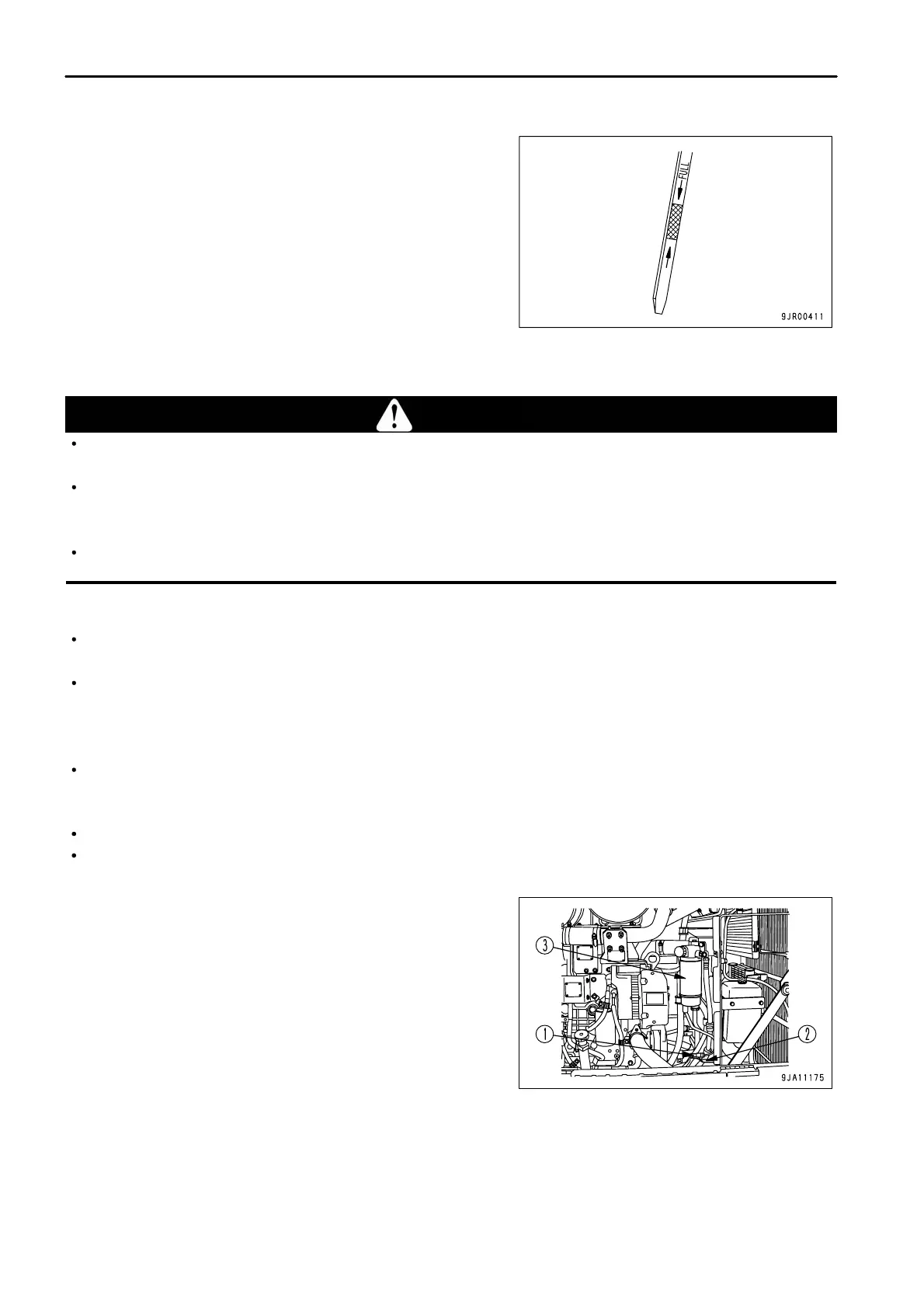

9. After replacing the filter cartridge, add engine oil through oil
filler (F) until the oil level is between the marks on the dipstick
(G).
10. Run the engine at idle for a short time, then stop the engine,
and check that the oil level is between the marks on the
dipstick. For details, see "CHECK ENGINE OIL PAN LEVEL,
ADD OIL (PAGE 3-89)".
REPLACE FUEL PREFILTER CARTRIDGE
WARNING
After the engine has been operated, all parts are at high temperature, so do not replace the filter immediately. Wait for all parts
to cool down before starting the operation.
High pressure is generated inside the engine fuel piping system when the engine is running.
When replacing the filter, wait for at least 30 seconds after stopping the engine to let the internal pressure go down before
replacing the filter.
Do not bring any fire or flame close.
NOTICE
Genuine Komatsu fuel filter cartridges use a special filter that has highly efficient filtering ability. When replacing the filter
cartridge, always use a genuine Komatsu part.
The common rail fuel injection system used on this machine consists of more precise parts than the conventional injection
pump and nozzle.
If any part other than a genuine Komatsu filter cartridge is used, dust or dirt may get in and cause problems with the injection
system. Always avoid using substitute parts.
When carrying out inspection or maintenance of the fuel system, pay more attention than normal to the entry of dirt. If dirt is
stuck to any part, use fuel to wash it off completely.
Container to catch the fuel
Prepare a filter wrench
1.
Open the engine side cover on the left side of the machine.
2. The fuel prefilter forms 1 unit with the water separator and is at
the rear of the engine.
3.
Remove connector (1) and clamp(2).
After removing the connector, cover the connector terminals
with a vinyl bag or tape to protect them and prevent them from
becoming dirty.
4. Set the container under the filter cartridge (3) to catch the
drained oil.
4 - 58
