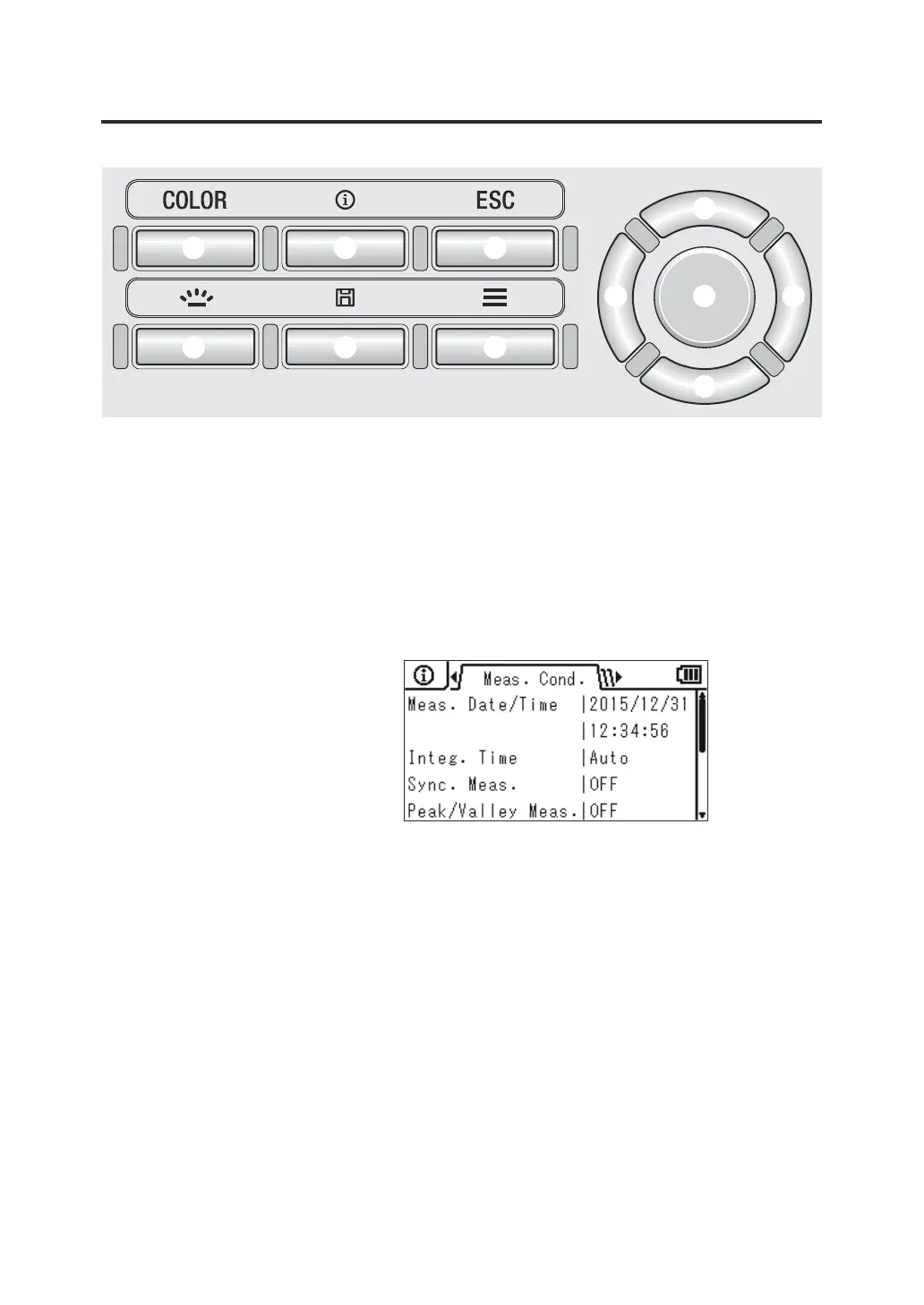

Key Panel
①②③
⑨
⑦
⑦
⑧⑧
④⑤⑥
Major Functions of Keys
1.
COLOR
key
(LS:
DATA
key)
Press this key while the measurement screen is displayed to change
the color space.
(Lv,x,y→Lv,u',v'→Lv,Tcp,duv→X,Y,Z→Lv,λd,Pe→Lv,x,y); With the LS,
pressing this key displays the stored measurement result. (page 36)
2.
INFO
key
Press this key to toggle the screen between the measurement
screen and setting check screen (measurement condition, target,
user calibration data).
3.
ESC
key
While the menu, setting, or setting check screen is displayed,
press this key to return to the measurement screen. During setting,
press this key to return to the previous screen. During value input,
press this key to cancel the setting.
4.
BACKLIGHT
key
Press this key to turn the backlight of the LCD screen ON/OFF. (page 49)
5.
SAVE
key
While the measurement screen is displayed, press this key to save
the displayed measurement data into the memory.
6.
MENU
key
Press this key to toggle the screen between the measurement
screen and setting screen.
7.
UP/DOWN
keys
Press these keys to move to the upper/lower items or to increase/
decrease the setting value.
8.
LEFT/RIGHT
keys
Press these keys to select the left/right tab or to move to the item
on the left/right.
9.
ENTER
key
Select a menu item and press this key to enter the setting screen for that item.
During value input or setting, press this key to conrm the current setting.
13
To Next Page
