Chapter 2 Before the Repair
2-3

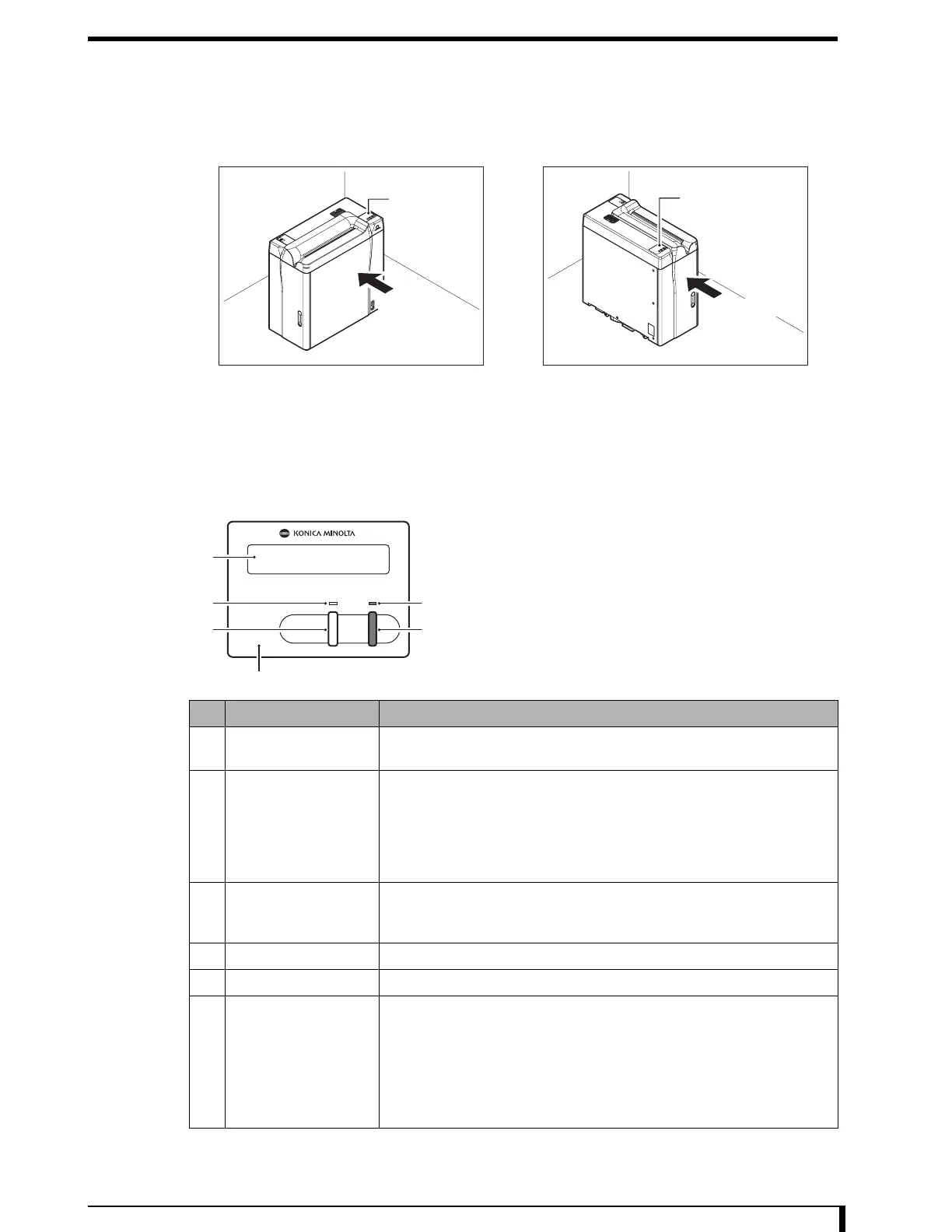

Vertical Positioning
The front side (user's access direction) of the equipment can be changed by switching the operation
panel position.
Horizontal positioning: First front side will be the front. (This is the factory default.)
Vertical positioning: Second front side will be the front.
Position of the operation panel needs to be changed to install in vertical positioning.
Operation Panel
Horizontal Positioning (Factory Default) Vertical Positioning
Access
direction
Operation
panel
Access
direction
Operation
panel
operation erase
4 2
1
5 3
6
No. Name Function
1 Message display
window
Displays the status and errors of the REGIUS MODEL 110.
2 “operation” lamp Turns on when “operation” switch is turned ON.
• Off: Stopped
• Green light on: Starting up, running, idling
• Green light on: Stopping
• Green flashing slowly: Sleeping
3 “operation” switch Press to turn ON/OFF the REGIUS MODEL 110.
Also, by pressing simultaneously with “erase” switch, it goes into optical
unit maintenance (user maintenance) mode.
4 “erase” lamp Turns on during erase mode.
5 “erase” switch Press to erase the image information on the plate.
6 Speaker Alarm will beep according to the operation status.
• Beep: Going into or coming out of idling state
• Beepbeep Beepbeep...: Ejecting cassette
• Bong Bong...: Erasing
• Beepbeepbeep: Warning occurred
• Pingpong: Error occurred
