Chapter 5 Disassembly and Assembly
5-126

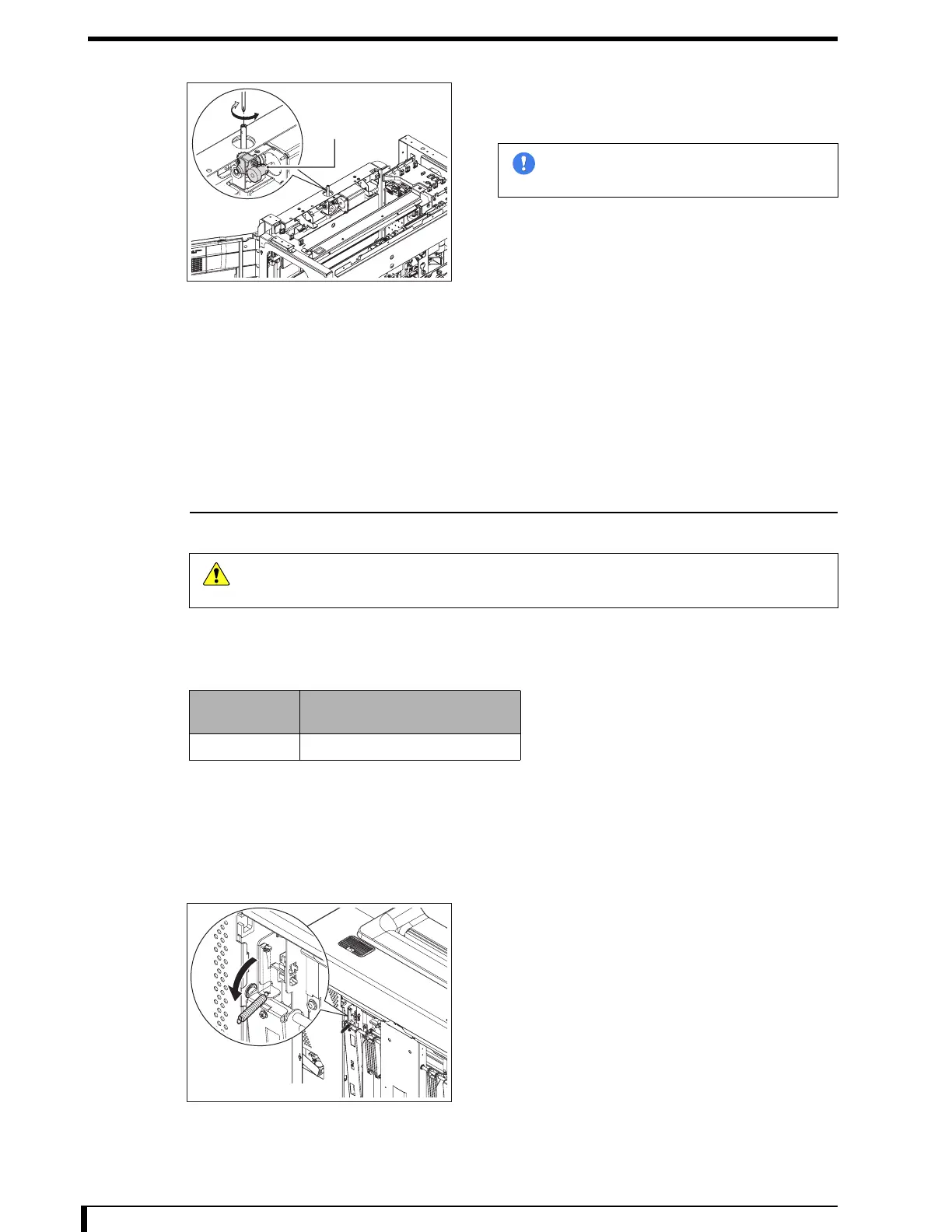

17 Apply grease to the transporter motor unit
assembly gear mechanism unit.
•
Grease: Plusguard No. 2 by Kyodo Yushi
Apply grease on entire area by turning the transporter
lead screw using a screw driver.
18 Install the exterior frame (back) that was removed
in Step 2.
•
9 screws (M4 x 8)
19 See "îš„ Installation Procedures (Page 5-8)" in "5.2.3 Removing/Installing the Exterior Panel
and Insertion Unit" to install the insertion unit and exterior panel.
Now, you have finished with the procedures to replace the transporter motor.
5.10.7 Replacing the Back Plate Absorption Detection Sensor
This section describes the instructions on how to replace the back plate absorption detection sensor.
Work outline
Listed below are the number of people and the rough standard of work hours required for performing the
works described in this section.
Requirements
The works in this section can be performed using only the standard tools.
1 See "îš„ Removal Procedures (Page 5-6)" of the "5.2.3 Removing/Installing the Exterior Panel
and Insertion Unit", and remove the first font back panel.
2 Remove the spring from the bracket assembly on
the back plate detection unit.
Transporter Motor
Unit Assembly
Gear Mechanism
Im
ortant
Always use the specified grease.
Caution
Be sure to turn off the power supply circuit breaker and unplug the power cable from the
equipment whenever you disassemble/assemble the equipment.
Personnel
Number
Work Hours (steps 2 to 8)
1
First Front Back Side
To Next Page
