TUNING THE CHASSIS 41

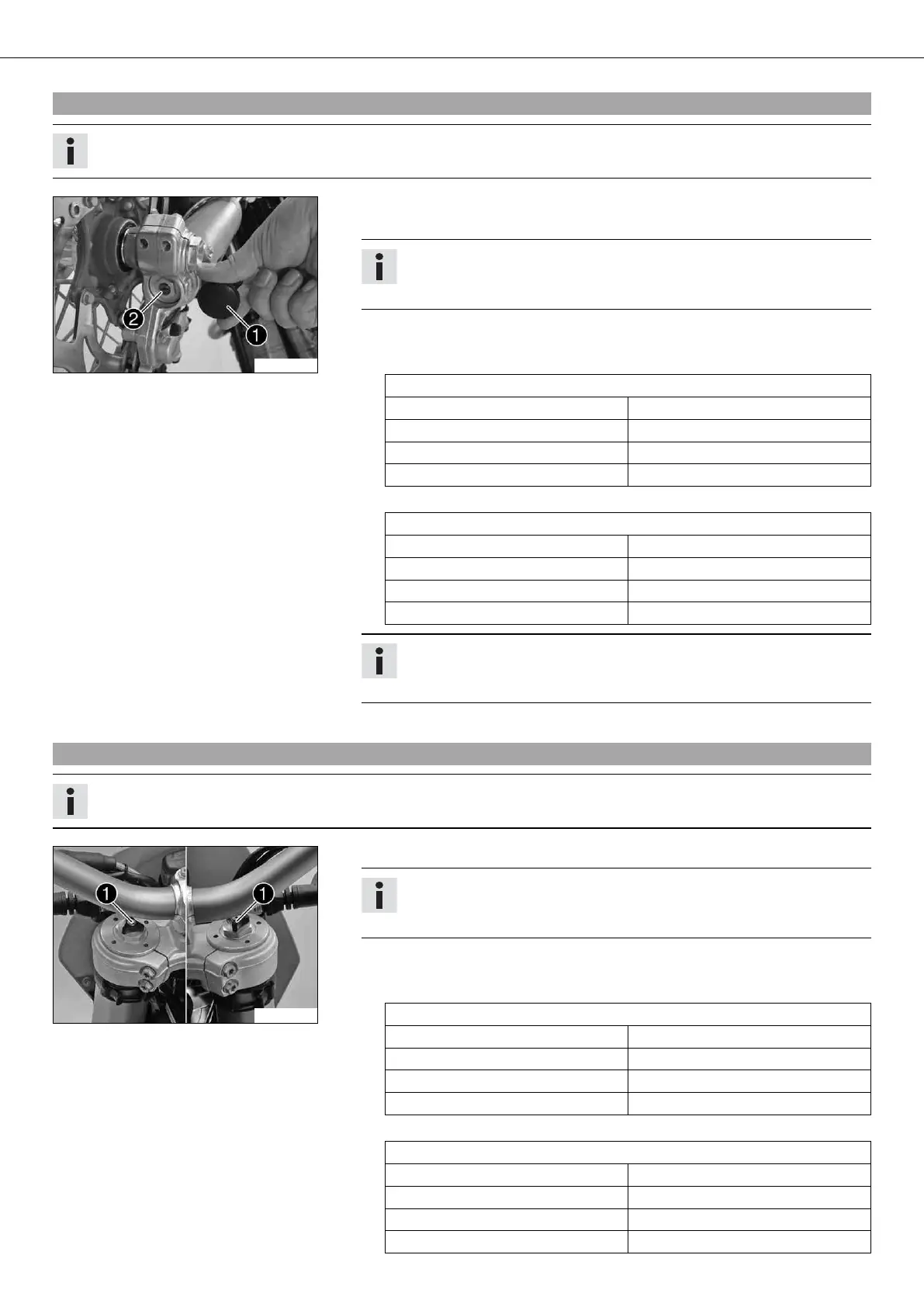

9.12Adjusting the compression damping of the fork
Info
The hydraulic compression damping determines the fork suspension behavior.
100020-10
– Remove protection covers .
– Turn adjusting screws clockwise all the way.
Info
Adjusting screws are located at the bottom end of the fork legs.
Make the same adjustment on both fork legs.
– Turn back counterclockwise by the number of clicks corresponding to the fork type.
Guideline
(All 125/200 models)
Compression damping
Comfort 24 clicks
Standard 22 clicks
Sport 20 clicks
Full payload 20 clicks
(All 250/300 models)
Compression damping
Comfort 24 clicks
Standard 22 clicks
Sport 20 clicks
Full payload 20 clicks
Info
Turn clockwise to increase damping; turn counterclockwise to reduce damp-
ing.
– Mount protection covers .
9.13Adjusting the rebound damping of the fork
Info
The hydraulic rebound damping determines the fork suspension behavior.
800017-10
– Turn adjusting screws clockwise all the way.
Info
Adjusting screws are located at the top end of the fork legs.
Make the same adjustment on both fork legs.
– Turn back counterclockwise by the number of clicks corresponding to the fork type.
Guideline
(All 125/200 models)
Rebound damping
Comfort 22 clicks
Standard 20 clicks
Sport 18 clicks
Full payload 18 clicks
(All 250/300 models)
Rebound damping
Comfort 22 clicks
Standard 20 clicks
Sport 18 clicks
Full payload 18 clicks
