12 SERVICE WORK ON THE CHASSIS 73

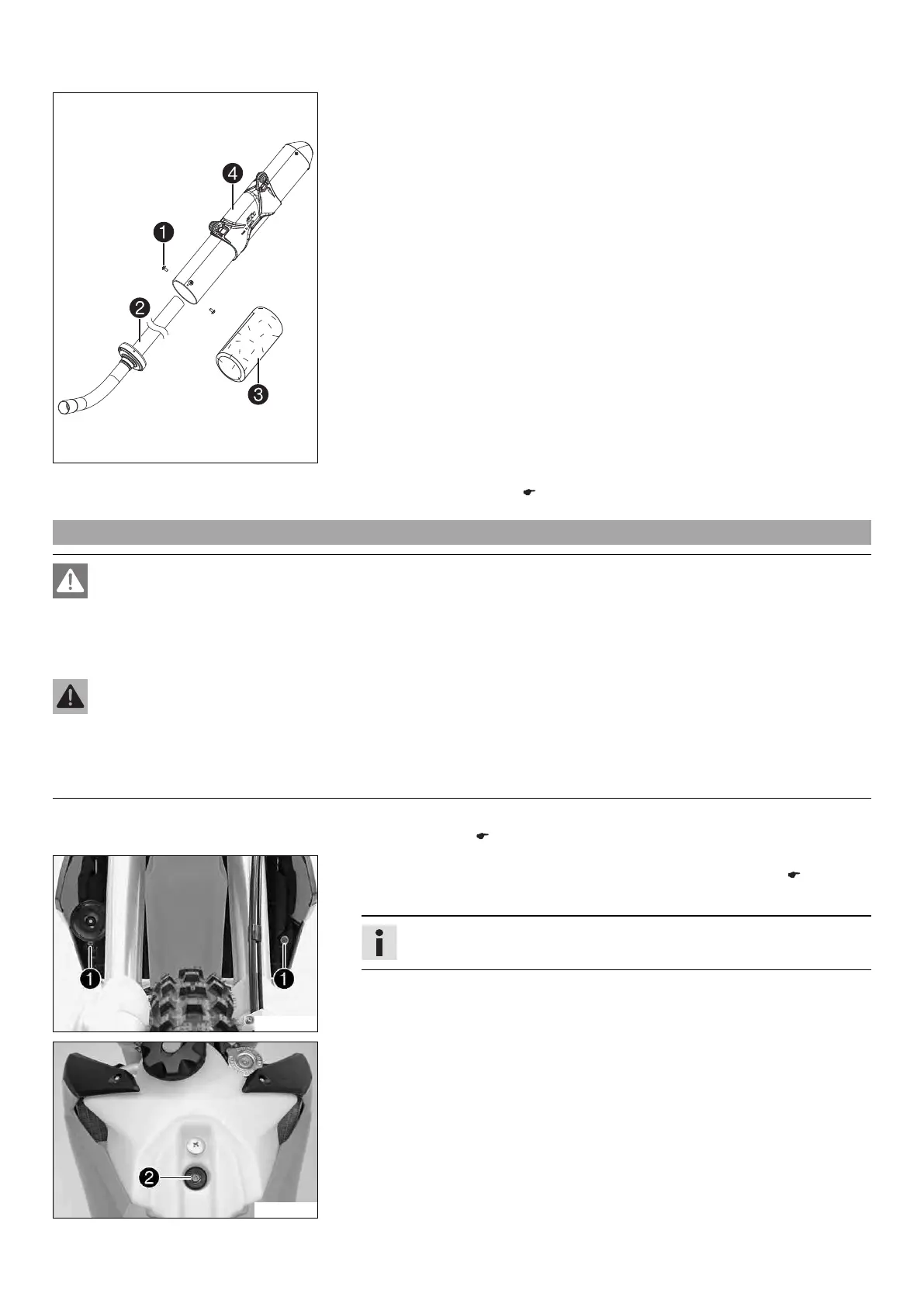

401045-10
Main work
– Remove screws 1. Pull out inner tube 2.
– Pull the glass fiber yarn filling 3 from the inner tube.
– Clean the parts that are to be reinstalled.
– Mount the new glass fiber yarn filling 3 on the inner tube.
– Slide outer tube 4 over the inner tube with the new glass fiber yarn filling.
– Mount and tighten all screws 1.
Finishing work
– Install the main silencer. ( p. 72)
12.33 Removing the fuel tank x
Danger
Fire hazard Fuel is highly flammable.
– Never refuel the vehicle near open flames or burning cigarettes, and always switch off the engine first. Be careful that no
fuel is spilt, especially on hot vehicle components. Clean up spilt fuel immediately.
– The fuel in the fuel tank expands when warm and may emerge if overfilled. Follow the instructions on refueling.
Warning
Danger of poisoning Fuel is poisonous and a health hazard.
– Fuel must not come into contact with the skin, eyes, or clothing. Do not breathe in the fuel vapors. If contact occurs with
the eyes, rinse with water immediately and contact a physician. Immediately clean contaminated areas on the skin with
soap and water. If fuel is swallowed, contact a physician immediately. Change clothing that is contaminated with fuel.
Store fuel properly in a suitable canister and keep away from children.
Preparatory work
– Remove the seat. ( p. 69)
602742-10
Main work
– Turn handle 1 of the fuel tap to the OFF position. (Figure 602702-10 p. 17)
– Pull off the fuel hose.
Info
Remaining fuel may run out of the fuel hose.
– Remove screws 1 with the collar sleeve.
(All EXC models)
– Hang the horn and horn bracket to one side.
602720-11
– Remove screw 2 with the rubber bushing.
– Remove the tube from the fuel tank vent line.
