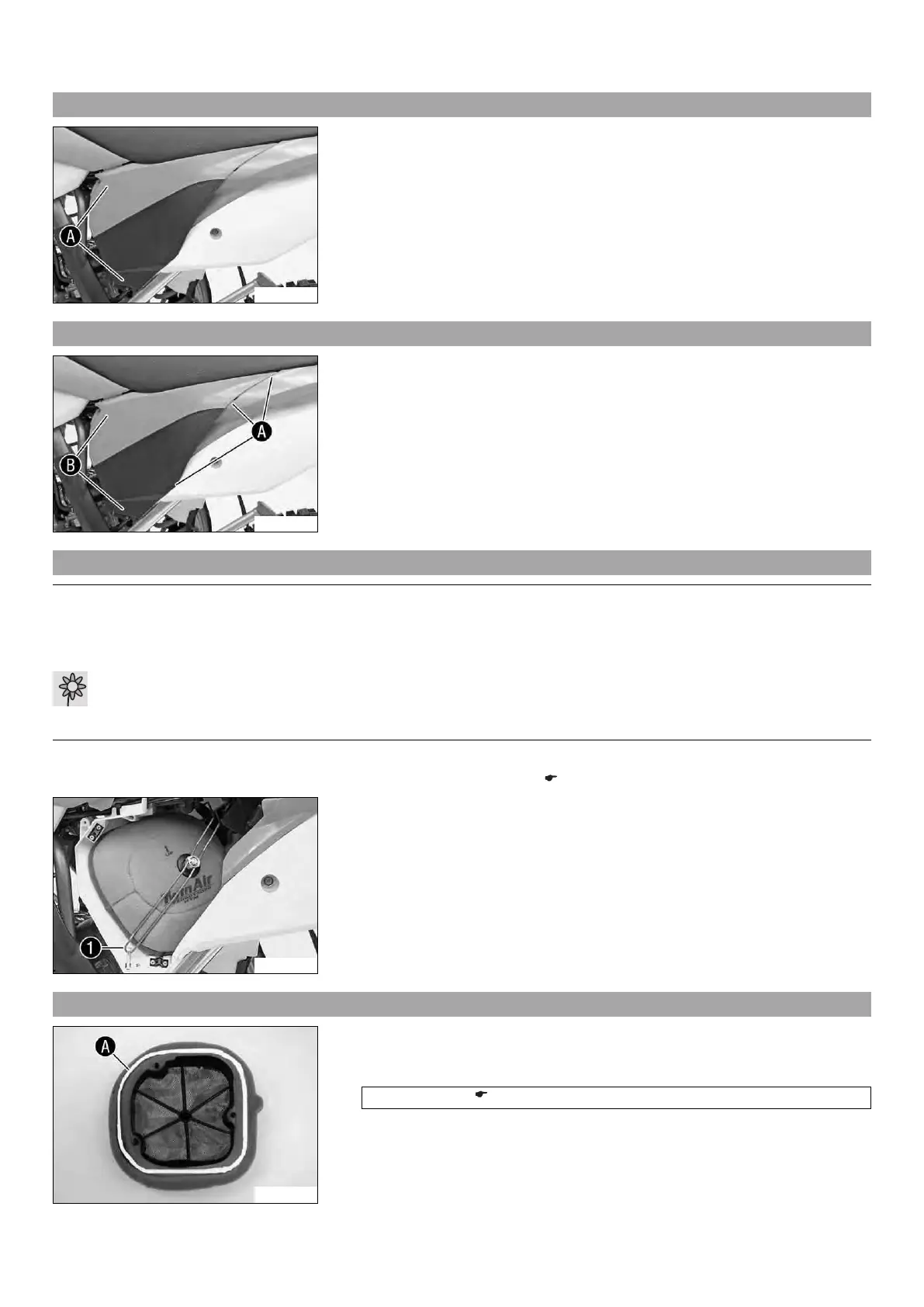

12 SERVICE WORK ON THE CHASSIS 70
12.24 Removing the air filter box lid
602716-10
– Pull off the air filter box lid in area A sideways and remove it toward the front.
12.25 Installing the air filter box lid
602716-11
– Insert the air filter box lid into the rear area A and clip it into the front area B.
12.26 Removing the air filter x
Note
Engine failure Unfiltered intake air has a negative effect on the service life of the engine.
– Never ride the vehicle without an air filter since dust and dirt can get into the engine and result in increased wear.
Warning
Environmental hazard Hazardous substances cause environmental damage.
– Oil, grease, filters, fuel, cleaners, brake fluid, etc., should be disposed of as stipulated in applicable regulations.
Preparatory work
– Remove the air filter box lid. ( p. 70)
602717-10
Main work
– Detach air filter holder 1 at the bottom and swing it to one side. Remove the air
filter with the air filter support.
– Remove the air filter from the air filter support.
12.27 Installing the air filter x
301262-10
Main work
– Mount the clean air filter on the air filter support.
– Grease the air filter in area A.
Long-life grease ( p. 142)
