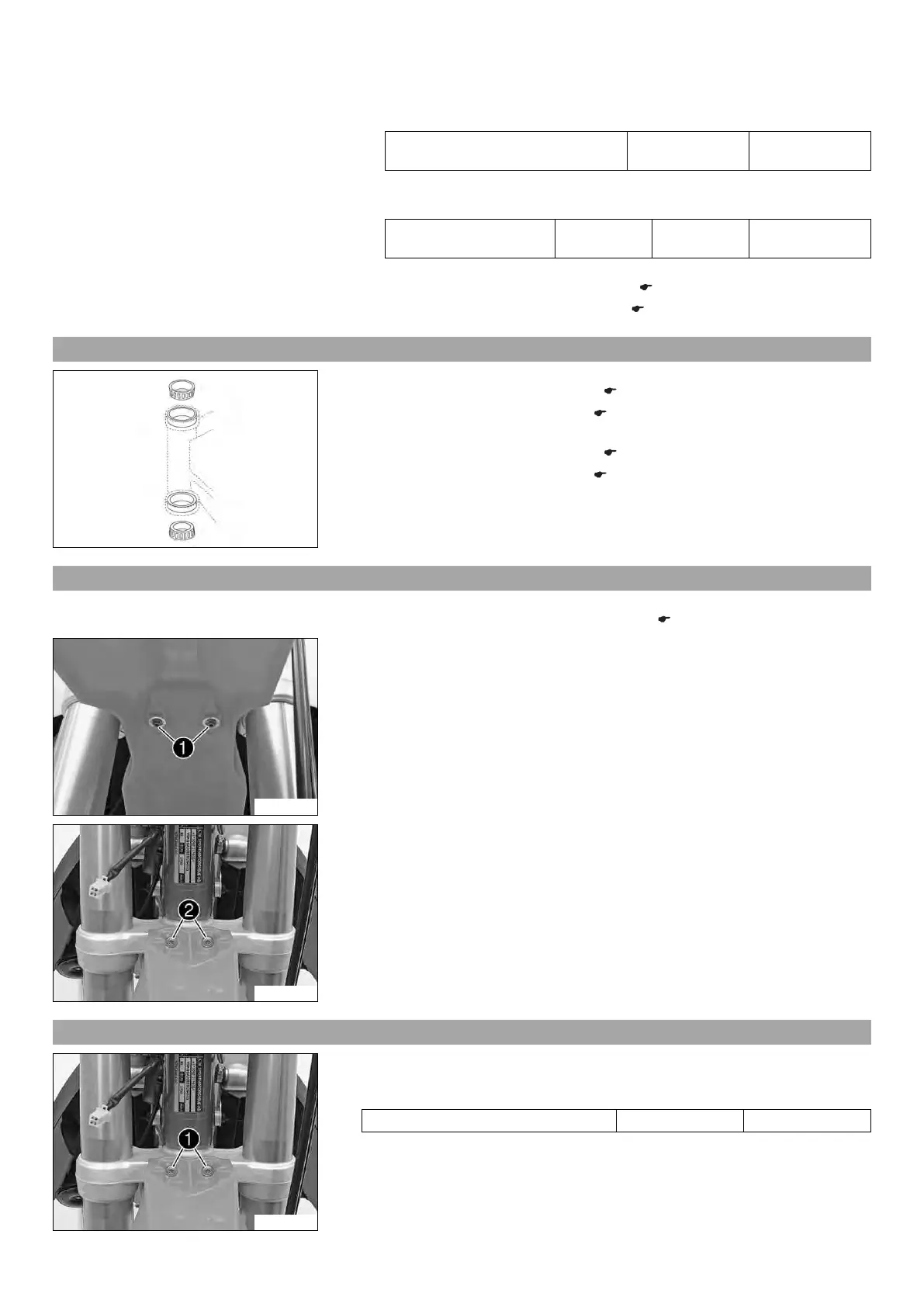

12 SERVICE WORK ON THE CHASSIS 67
– Tighten screws 1.
Guideline
Screw, top triple clamp M8 17 Nm
(12.5 lbf ft)
– Mount and tighten screw 2.
Guideline
Screw, top steering stem M8 17 Nm
(12.5 lbf ft)
Loctite
®
243â„¢
Finishing work
– Check the play of the steering head bearing. ( p. 66)
– Remove the motorcycle from the lift stand. ( p. 57)
12.17 Greasing the steering head bearing x
800010-10
(EXC, XC‑W)
–
Remove the lower triple clamp. x ( p. 61)
–
Install the lower triple clamp. x ( p. 62)
(SIX DAYS)
–
Remove the lower triple clamp. x ( p. 62)
–
Install the lower triple clamp. x ( p. 64)
12.18 Removing the front fender
Preparatory work
– Remove the headlight mask with the headlight. ( p. 101)
602712-10
Main work
– Remove screws 1.
602713-10
– Remove screws 2. Remove the front fender.
12.19 Installing the front fender
602713-11
Main work
– Position the front fender. Mount and tighten screws 1.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
