12 SERVICE WORK ON THE CHASSIS 82
B01224-10

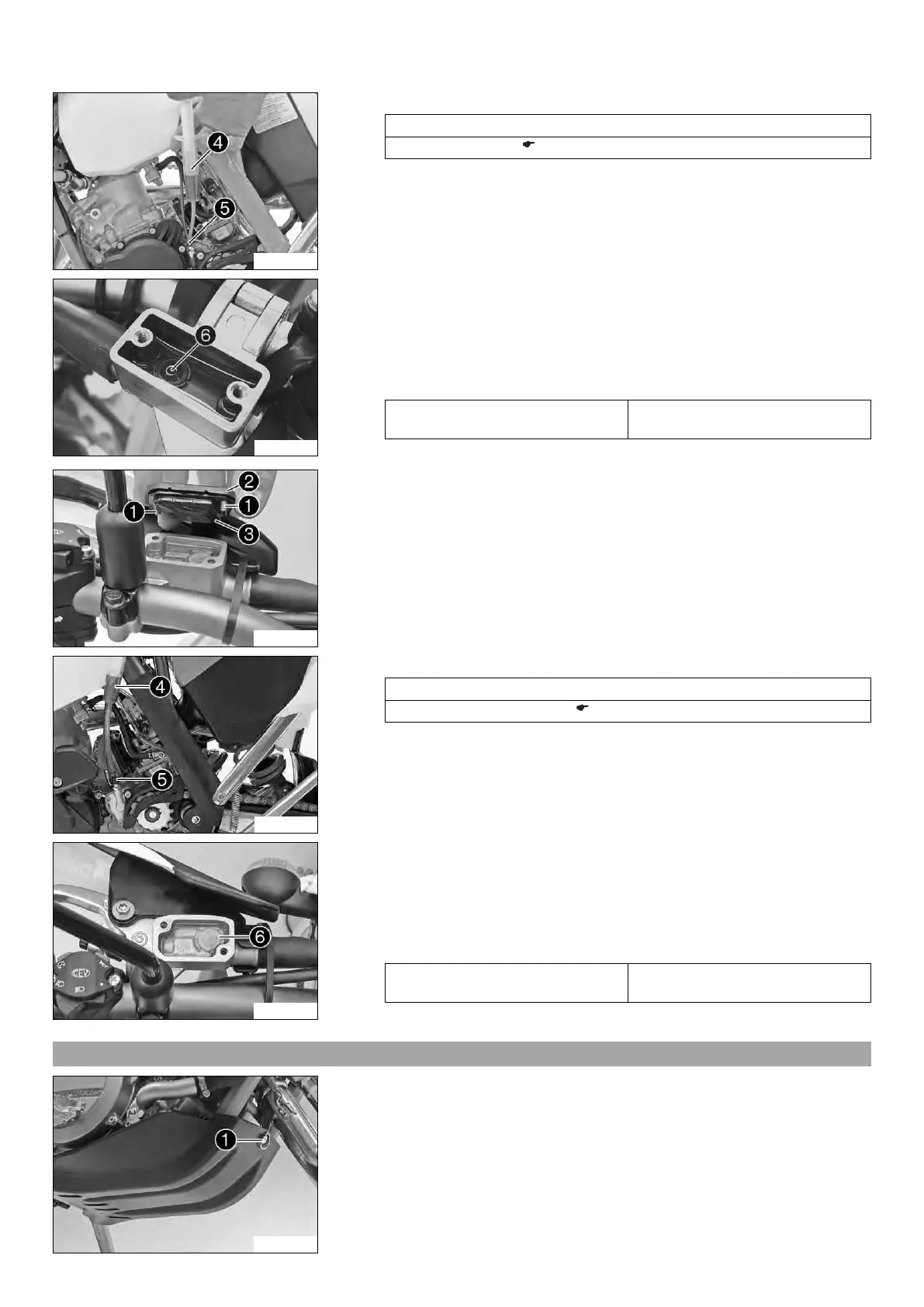

– Fill bleeding syringe 4 with the appropriate hydraulic fluid.
Bleed syringe (50329050000)
Hydraulic fluid (15) ( p. 141)
– On the slave cylinder of the clutch, remove bleeder screw 5 and mount bleed-
ing syringe 4.
400247-10
– Inject the liquid into the system until it escapes from hole 6 of the master
cylinder without bubbles.
– To prevent overflow, drain fluid occasionally from the master cylinder reservoir.
– Remove the bleeding syringe. Mount and tighten the bleeder screw.
– Correct the fluid level of the hydraulic clutch.
Guideline
Fluid level under top edge of con-
tainer
4 mm (0.16 in)
– Position the cover with the membrane. Mount and tighten the screws.
B01538-10
(All 250/300 models)
– Move the clutch fluid reservoir mounted on the handlebar to a horizontal posi-
tion.
– Remove screws 1.
– Remove cover 2 with membrane 3.
602757-10
– Fill bleeding syringe 4 with the appropriate hydraulic fluid.
Bleed syringe (50329050000)
Brake fluid DOT 4 / DOT 5.1 ( p. 140)
– On the slave cylinder of the clutch, remove bleeder screw 5 and mount bleed-
ing syringe 4.
B01540-10
– Inject the liquid into the system until it escapes from hole 6 of the master
cylinder without bubbles.
– To prevent overflow, drain fluid occasionally from the master cylinder reservoir.
– Remove the bleeding syringe. Mount and tighten the bleeder screw.
– Correct the fluid level of the hydraulic clutch.
Guideline
Fluid level under top edge of con-
tainer
4 mm (0.16 in)
– Position the cover with the membrane. Mount and tighten the screws.
12.48 Removing the engine guard (SIX DAYS)
B01204-10
– Turn quick release 1 counterclockwise until it disengages. Remove the engine
guard.
