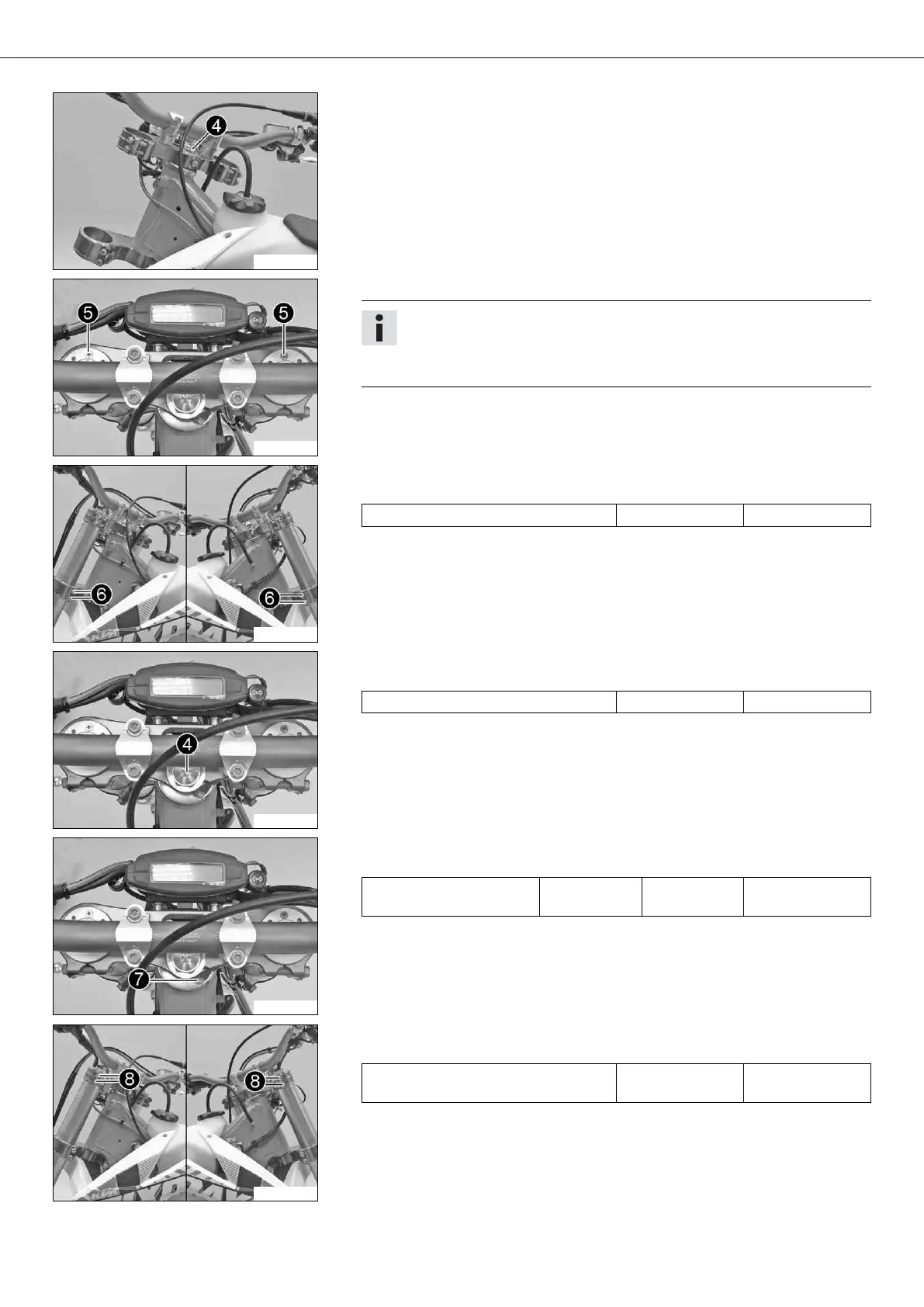

– Position the upper triple clamp with the steering.
– Mount screw  but do not tighten yet.
– Position the clutch line and wiring harness.
B00811-10
– Position the fork legs.
Info
The upper milled groove in the fork leg must be flush with the top edge of
the upper triple clamp.
Position bleeder screws  toward the front.
B00804-12
– Tighten screws .
Guideline
Screw, bottom triple clamp M8 12 Nm (8.9 lbf ft)
B00811-11
– Tighten screw .
Guideline
Screw, top steering head M20x1.5 12 Nm (8.9 lbf ft)
B00811-12
– Tighten screw .
Guideline
Screw, top steering stem M8 17 Nm
(12.5 lbf ft)
Loctite
®
243™
B00804-13
– Tighten screws .
Guideline
Screw, top triple clamp M8 17 Nm
(12.5 lbf ft)
