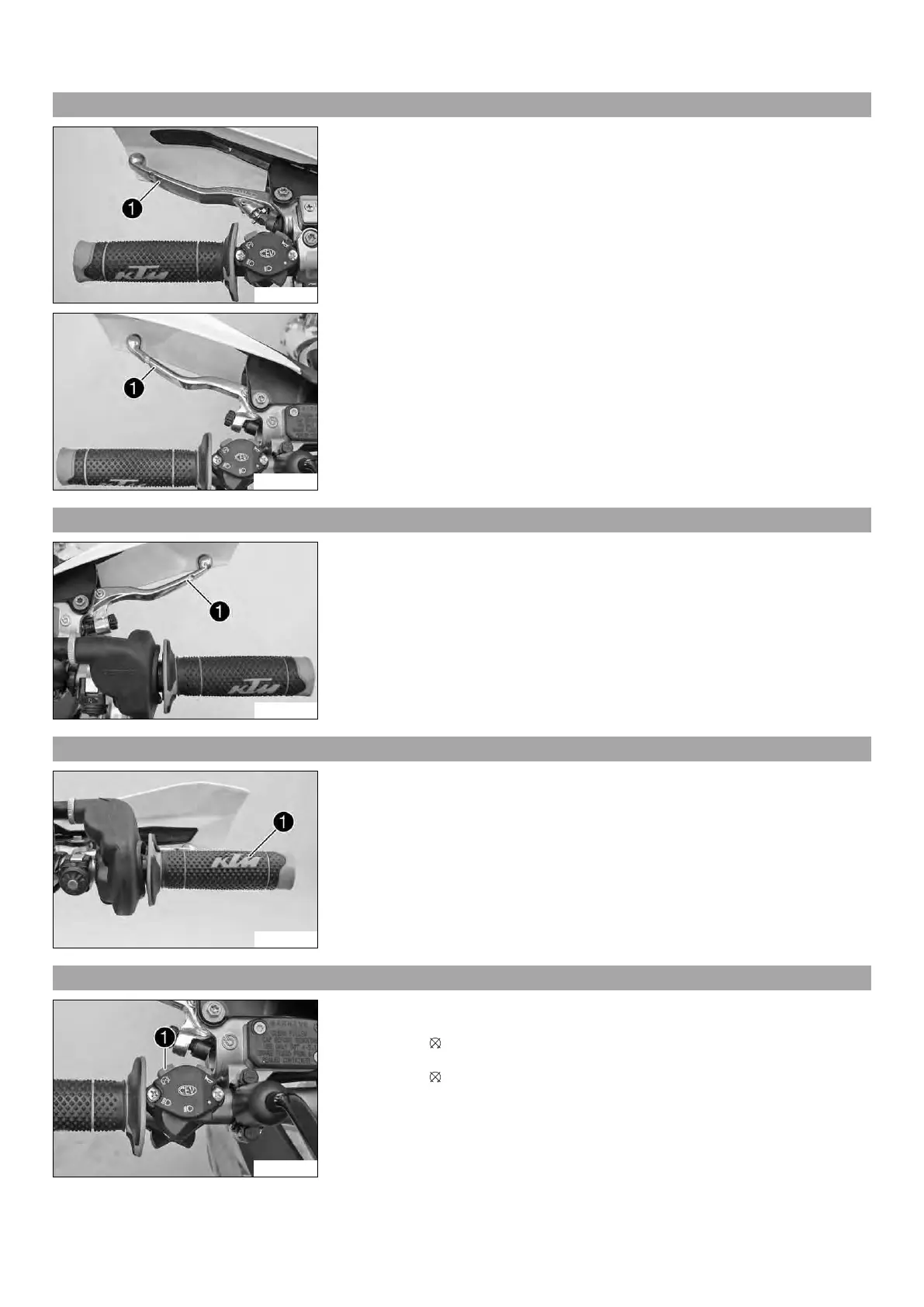

6 CONTROLS 13
6.1 Clutch lever
602726-10
(All 125/200 models)
The clutch lever 1 is fitted on the left side of the handlebar.
The clutch is hydraulically operated and self-adjusting.
B01496-10
(All 250/300 models)
The clutch lever 1 is fitted on the left side of the handlebar.
The clutch is hydraulically operated and self-adjusting.
6.2 Hand brake lever
602697-10
Hand brake lever 1 is located on the right side of the handlebar.
The hand brake lever is used to activate the front brake.
6.3 Throttle grip
602698-10
Throttle grip 1 is fitted on the right side of the handlebar.
6.4 Kill switch (All EXC models)
B01585-10
The kill switch 1 is fitted on the left side of the handlebar.
Possible states
• Kill switch in basic position – In this position, the ignition circuit is closed and
the engine can be started.
• Kill switch pressed – In this position, the ignition circuit is interrupted, a run-
ning engine stops, and a non-running engine will not start.
