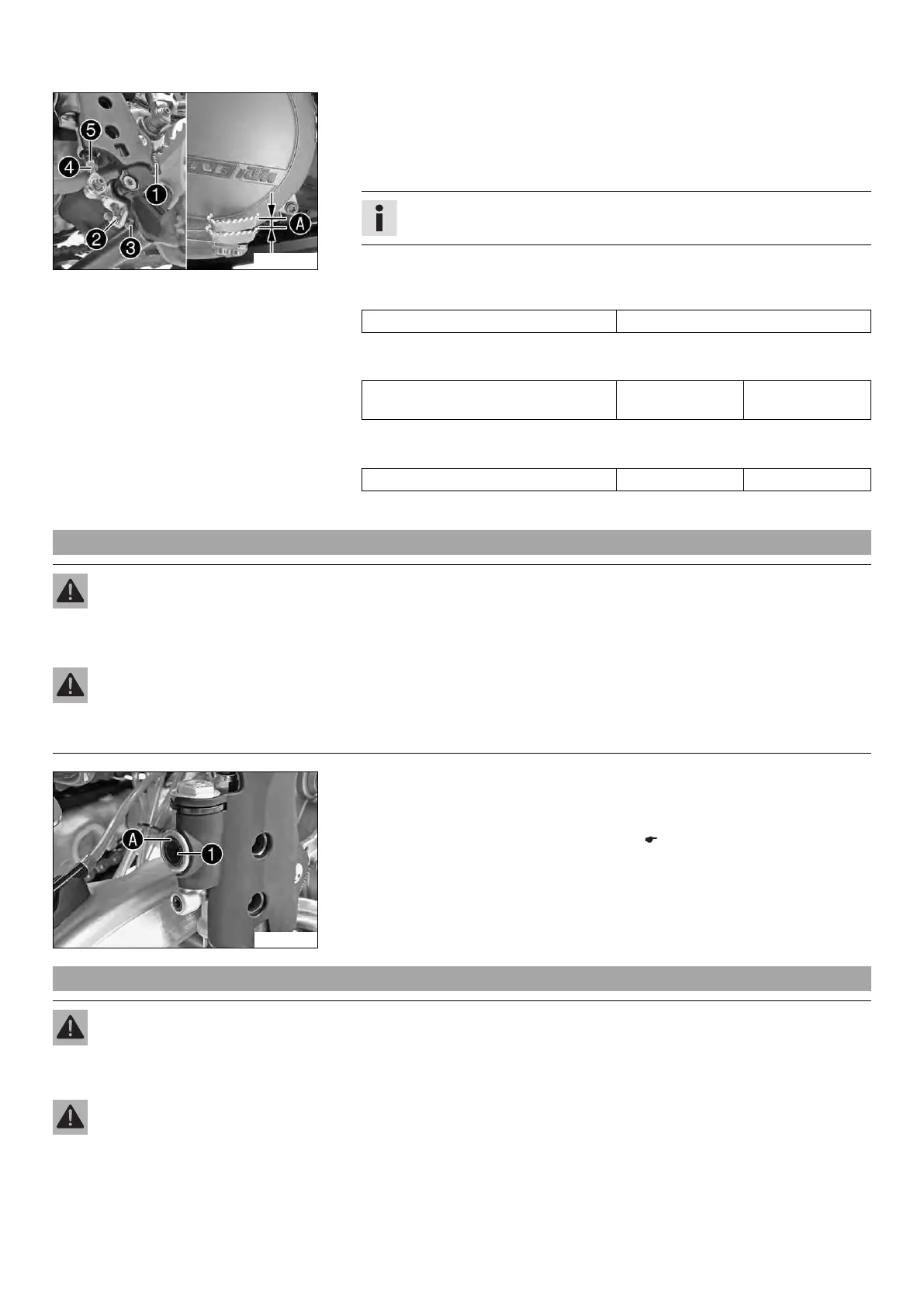

13 BRAKE SYSTEM 89
B00828-10
– Disconnect spring 1.
– Loosen nut 4 and, with push rod 5, turn it back until you have maximum free
travel.
– To adjust the basic position of the foot brake lever individually, loosen nut 2 and
turn screw 3 accordingly.
Info
The range of adjustment is limited.
– Turn push rod 5 accordingly until you have free travel A. If necessary, adjust the
basic position of the foot brake lever.
Guideline
Free travel at foot brake lever 3… 5 mm (0.12… 0.2 in)
– Hold screw 3 and tighten nut 2.
Guideline
Nut, foot brake lever stop M8 20 Nm
(14.8 lbf ft)
– Hold push rod 5 and tighten nut 4.
Guideline
Remaining nuts, chassis M6 10 Nm (7.4 lbf ft)
– Reconnect spring 1.
13.11 Checking the rear brake fluid level
Warning
Danger of accidents Failure of the brake system.
– If the brake fluid level falls below the MIN mark, this indicates a leakage in the brake system or worn-out brake linings.
Check the brake system and do not continue riding. (Your authorized KTM workshop will be glad to help.)
Warning
Danger of accidents Reduced braking efficiency due to old brake fluid.
– Change the brake fluid of the front and rear brake according to the service schedule. (Your authorized KTM workshop will
be glad to help.)
602760-10
– Stand the vehicle upright.
– Check the brake fluid level in the viewer 1.
» If the fluid has dropped below marking A in the level viewer:
–
Add brake fluid for the rear brake. x ( p. 89)
13.12 Adding brake fluid for the rear brake x
Warning
Danger of accidents Failure of the brake system.
– If the brake fluid level falls below the MIN mark, this indicates a leakage in the brake system or worn-out brake linings.
Check the brake system and do not continue riding. (Your authorized KTM workshop will be glad to help.)
Warning
Skin irritation Brake fluid can cause skin irritation on contact.
– Avoid contact with skin and eyes, and keep out of the reach of children.
– Wear suitable protective clothing and goggles.
– If brake fluid comes into contact with the eyes, flush the eyes thoroughly with water and consult a physician immediately.
