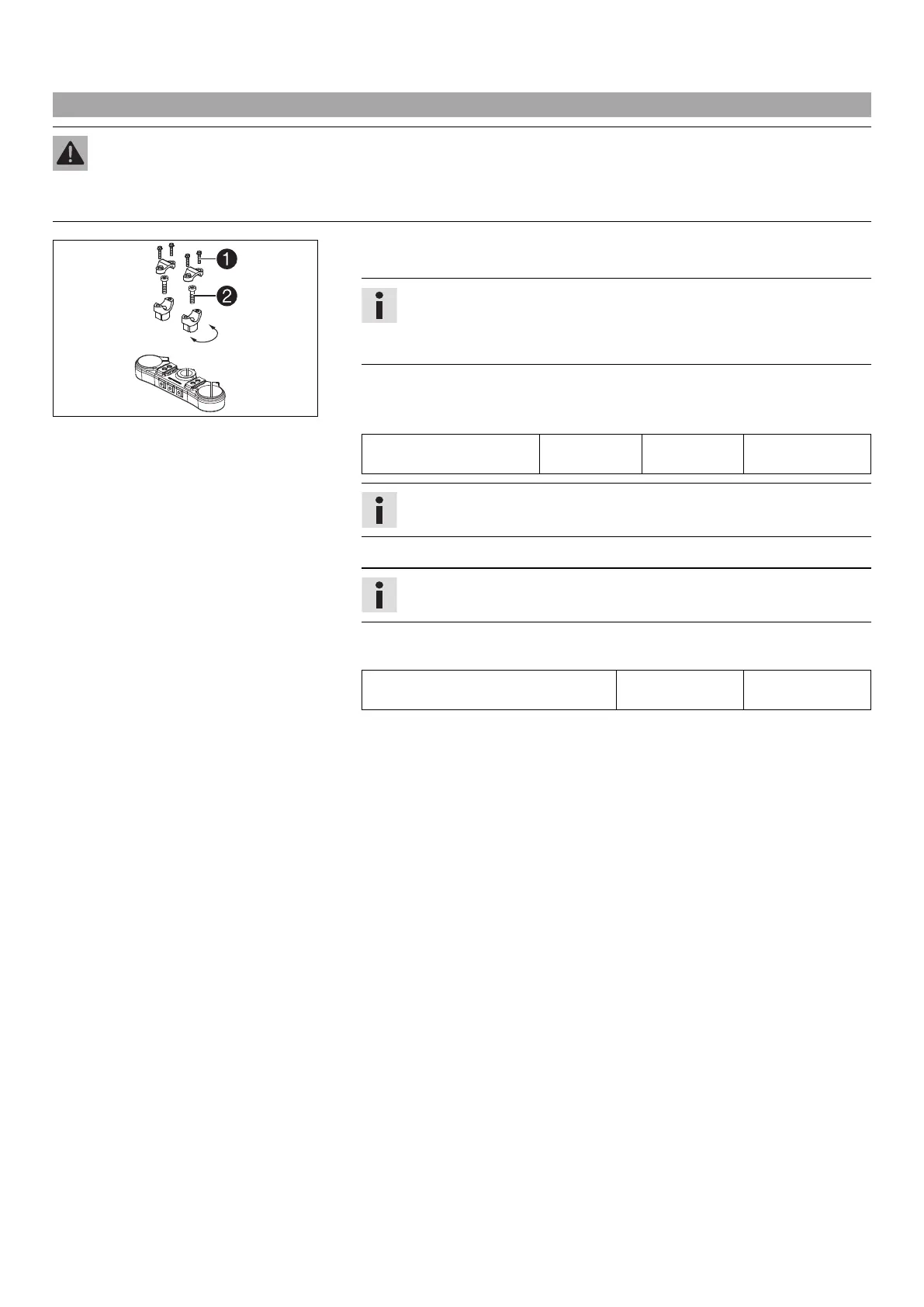

11 TUNING THE CHASSIS 56
11.16 Adjusting the handlebar position x
Warning
Danger of accidents Handlebar breakage.
– If the handlebar is bent or straightened it will cause material fatigue, and the handlebar can break. Always replace handle-
bar.
101488-10
– Remove screws 1. Remove the handlebar clamp. Remove the handlebar and lay it
to one side.
Info
Protect the motorcycle and its attachments against damage by covering
them.
Do not bend the cables and lines.
– Remove screws 2. Remove the handlebar support.
– Place the handlebar support in the required position. Mount and tighten screws 2.
Guideline
Screw, handlebar support M10 40 Nm
(29.5 lbf ft)
Loctite
®
243™
Info
Position the left and right handlebar supports evenly.
– Position the handlebar.
Info
Make sure cables and wiring are positioned correctly.
– Position the handlebar clamps. Mount screws 1 and tighten evenly.
Guideline
Screw, handlebar clamp M8 20 Nm
(14.8 lbf ft)
