KTM 500 EXC F 2024 User Manual

ELECTRICAL SYSTEM 15
117

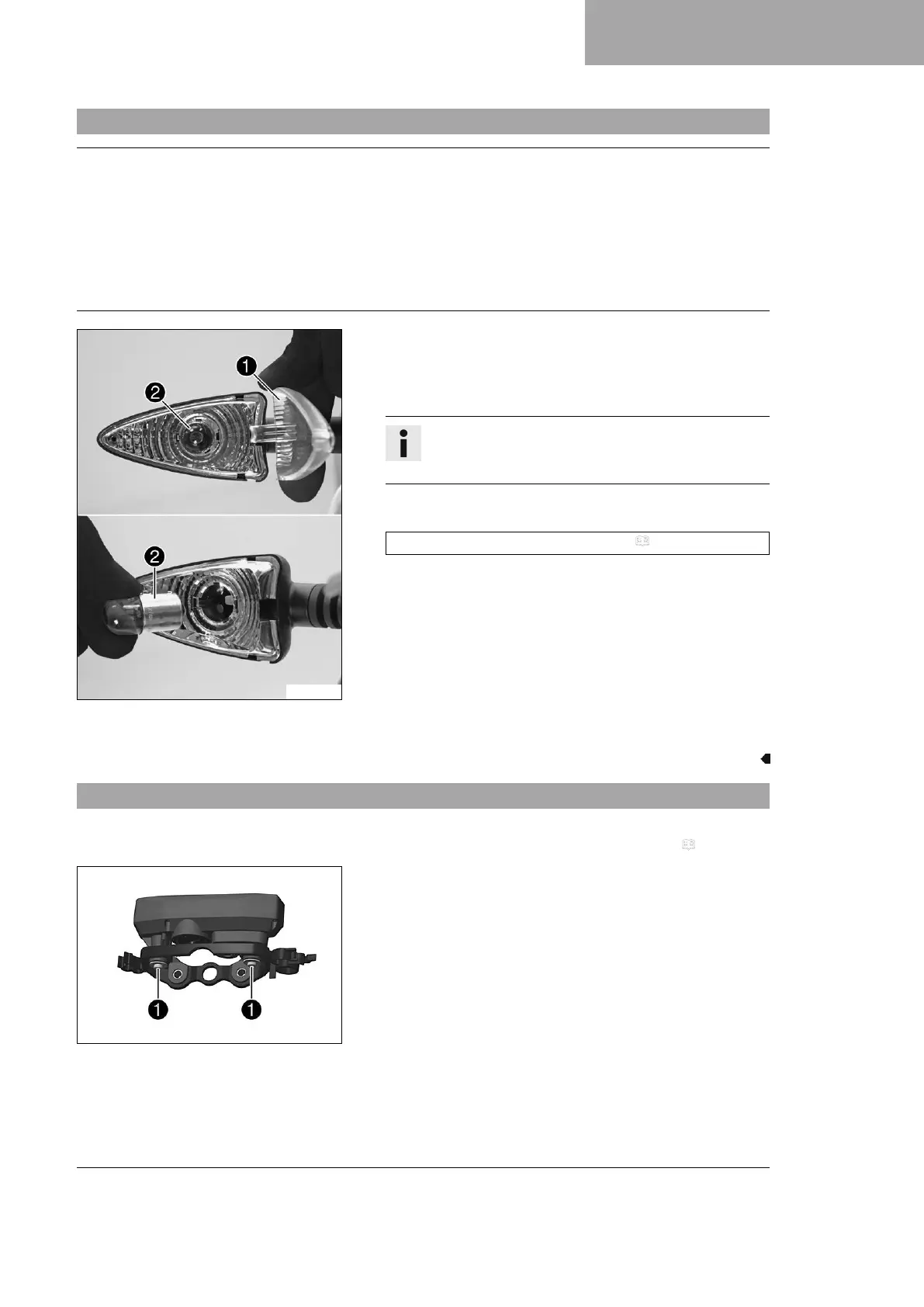

15.10 Changing the turn signal bulb
Note
Impairments to reflectors and lamps Grease on the reflector reduces the emitted light.
Grease on the bulb will evaporate due to the heat and be deposited on the reflector.
Grease residue on the bulb reduces heat dissipation and increases the heat of the bulb, thus reducing its service
life.
– Clean and degrease the bulbs before mounting.
– Do not touch the bulbs with your bare hands.
E00499-10
Main work
–
Remove the screw and carefully take off turn signal glass
1
.
–
Press the turn signal bulb
2
carefully into the socket, turn it
counterclockwise by about 30°, and pull it out of the socket.
Info
Do not touch the reflector with your fingers and keep it
free from grease.
– Press the new turn signal bulb carefully into the socket and
turn it clockwise until it stops.
Turn signal (RY10W / socket BAU15s) ( p. 148)
– Position the turn signal glass.
– Insert the screw and first turn counterclockwise until it
engages in the thread with a small jerk. Tighten the screw
lightly.
Finishing work
– Check that the turn signal system is functioning properly.
15.11 Changing the combination instrument battery
Preparatory work
– Remove the headlight mask with the headlight. ( p. 114)
V01807-10
Main work
–
Remove screws
1
with the washers.
– Pull the combination instrument upward out of the holder.

KTM 500 EXC F 2024 Specifications

General

Displacement	510.9 cm³
Bore x Stroke	95 mm x 72 mm
Starter	Electric starter
Transmission	6-speed
Cooling	Liquid cooled
Front Suspension	WP XPLOR-USD, Ø 48 mm
Rear Suspension	WP XACT Monoshock with linkage
Ground Clearance	355 mm
Seat Height	960 mm
Dry Weight	106.5 kg
ABS	No
Engine Type	Single Cylinder, 4-Stroke Engine
Fuel System	Electronic fuel injection (EFI)
Front Brake	Disc brake 260 mm
Rear Brake	Disc brake 220 mm
Fuel Tank Capacity	8.5 liters
Frame	Central double-cradle type 25CrMo4 steel
