KTM 500 EXC F 2024 User Manual

SERVICE WORK ON THE CHASSIS 12
75
W00338-10
–

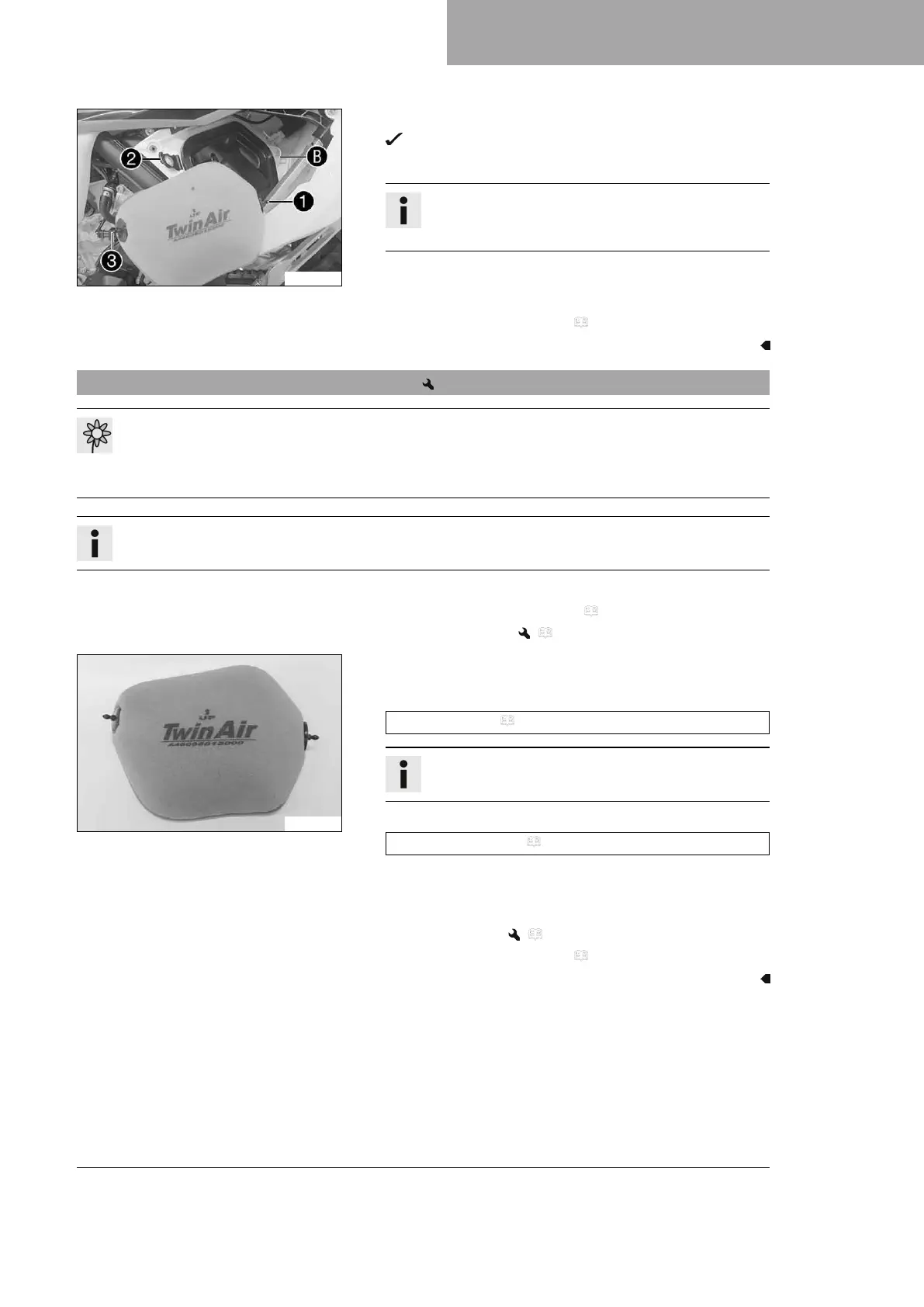

Insert air filter and position retaining pin
1
in bushing
B
.
The air filter is correctly positioned.
–
Secure the bottom retaining pin with holding tab
2
.
Info
If the air filter is not mounted correctly, dust and dirt
may enter the engine and result in damage.
Finishing work
– Install the air filter box cover. ( p. 73)
12.26 Cleaning the air filter and air filter box
Note
Environmental hazard Hazardous substances cause environmental damage.
– Dispose of oils, grease, filters, fuel, cleaning agents, brake fluid, etc., correctly and in compliance with
the applicable regulations.
Info
Do not clean the air filter with fuel or petroleum since these substances attack the foam.
Preparatory work
– Remove the air filter box cover. ( p. 73)
– Remove the air filter. ( p. 74)
W00299-10
Main work
– Wash the air filter thoroughly in special cleaning liquid and
allow it to dry properly.
Air filter cleaner ( p. 154)
Info
Only press the air filter to dry it, never wring it out.
– Oil the dry air filter with a high-grade air filter oil.
Oil for foam air filter ( p. 154)
– Clean the air filter box.
– Check the intake flange for damage and looseness.
Finishing work
– Install the air filter. ( p. 74)
– Install the air filter box cover. ( p. 73)
