KTM 500 EXC F 2024 User Manual

CONTROLS 6
19

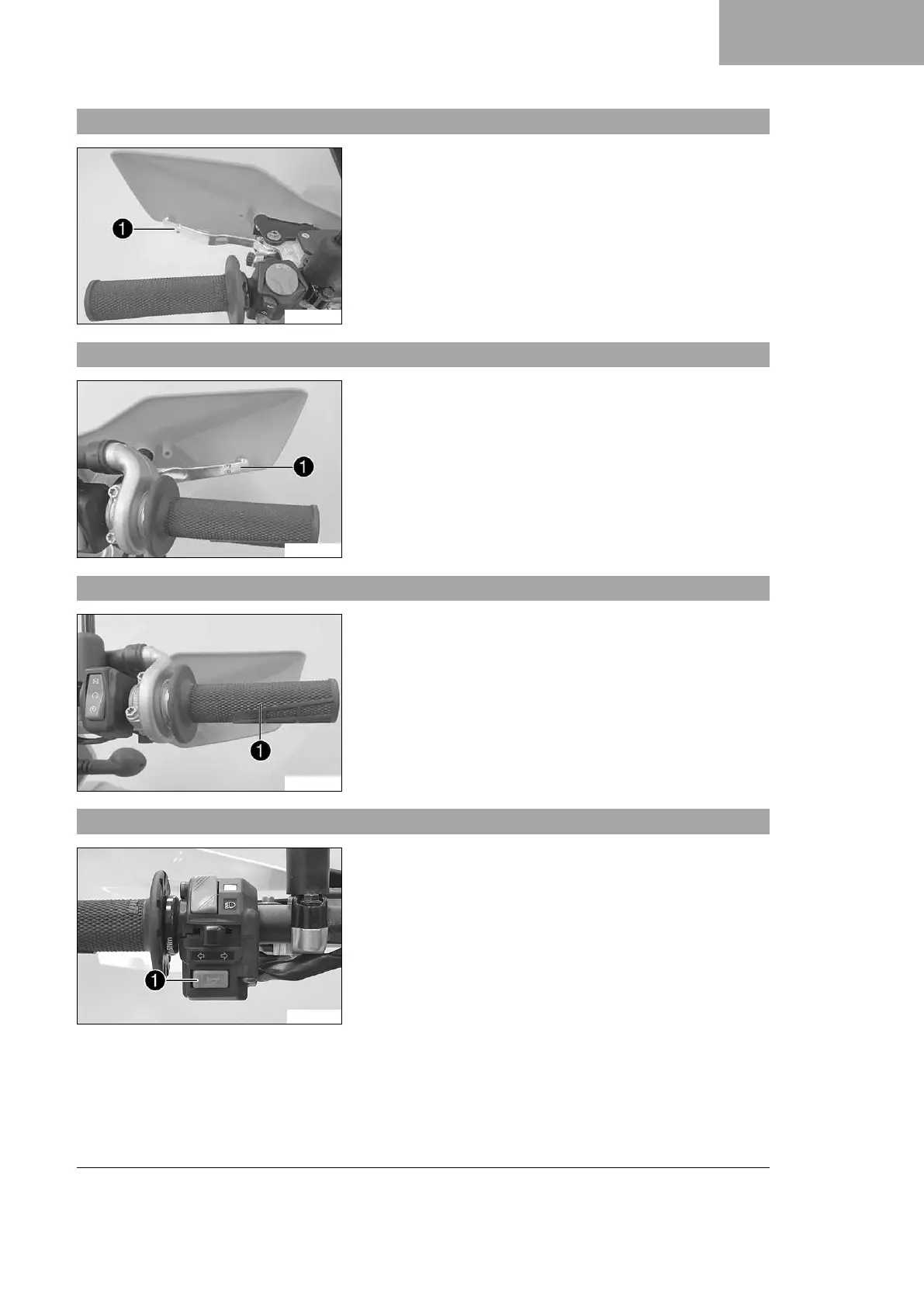

6.1 Clutch lever
W00295-10
The clutch lever
1
is fitted on the left side of the handlebar.
The clutch is hydraulically operated and self-adjusting.
6.2 Hand brake lever
W00292-10
The hand brake lever
1
is fitted on the right side of the handle-
bar.
The hand brake lever is used to activate the front brake.
6.3 Throttle grip
W00291-10
The throttle grip
1
is fitted on the right side of the handlebar.
6.4 Horn button
V00855-10
Horn button
1
is fitted on the left side of the handlebar.
Possible states
• The horn button is in the basic position
• The horn button is pressed – The horn is operated in this
position.

KTM 500 EXC F 2024 Specifications

General

Displacement	510.9 cm³
Bore x Stroke	95 mm x 72 mm
Starter	Electric starter
Transmission	6-speed
Cooling	Liquid cooled
Front Suspension	WP XPLOR-USD, Ø 48 mm
Rear Suspension	WP XACT Monoshock with linkage
Ground Clearance	355 mm
Seat Height	960 mm
Dry Weight	106.5 kg
ABS	No
Engine Type	Single Cylinder, 4-Stroke Engine
Fuel System	Electronic fuel injection (EFI)
Front Brake	Disc brake 260 mm
Rear Brake	Disc brake 220 mm
Fuel Tank Capacity	8.5 liters
Frame	Central double-cradle type 25CrMo4 steel
