KTM 500 EXC F 2024 User Manual

SERVICE WORK ON THE CHASSIS 12
61

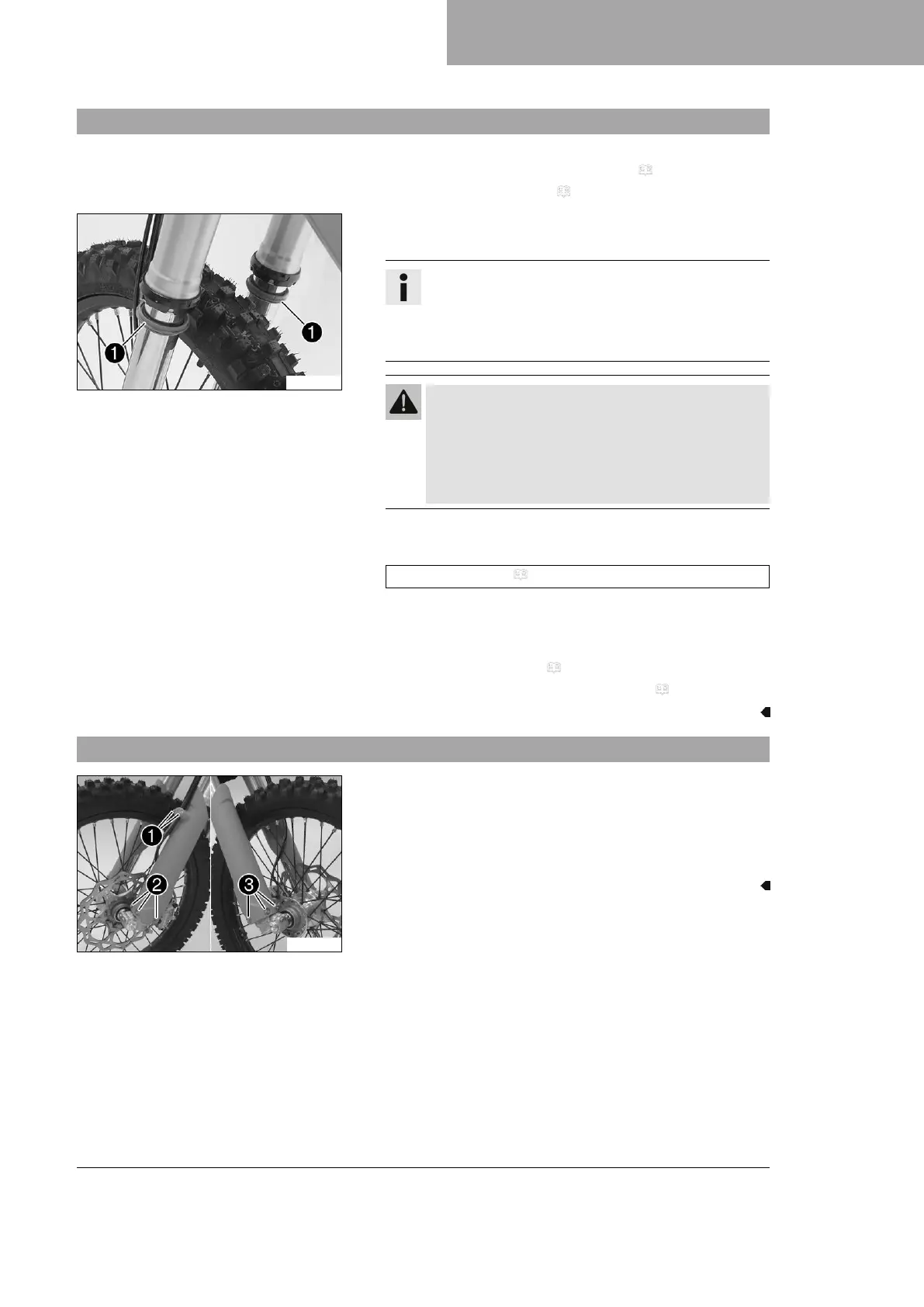

12.4 Cleaning the dust boots of the fork legs
Preparatory work
– Raise the motorcycle with the lift stand. ( p. 60)
– Remove the fork protector. ( p. 61)
K00070-10
Main work
–
Push dust boots
1
of both fork legs downward.
Info
The dust boots remove dust and coarse dirt particles
from the inside fork tubes. Over time, dirt can accumu-
late behind the dust boots. If this dirt is not removed,
the oil seals behind can start to leak.
Warning
Danger of accidents Oil or grease on the brake discs
reduces the braking effect.
– Always keep the brake discs free of oil and grease.
– Clean the brake discs with brake cleaner when nec-
essary.
– Clean and oil the dust boots and inner fork tubes of both fork
legs.
Universal oil spray ( p. 155)
– Press the dust boots back into their installation position.
– Remove excess oil.
Finishing work
– Install the fork protector. ( p. 62)
– Remove the motorcycle from the lift stand. ( p. 60)
12.5 Removing the fork protector
V00332-10
–
Remove screws
1
and take off the clamp.
–
Remove screws
2
on the left fork leg and take off the left
fork protector.
–
Remove screws
3
on the right fork leg and take off the right
fork protector.

KTM 500 EXC F 2024 Specifications

General

Displacement	510.9 cm³
Bore x Stroke	95 mm x 72 mm
Starter	Electric starter
Transmission	6-speed
Cooling	Liquid cooled
Front Suspension	WP XPLOR-USD, Ø 48 mm
Rear Suspension	WP XACT Monoshock with linkage
Ground Clearance	355 mm
Seat Height	960 mm
Dry Weight	106.5 kg
ABS	No
Engine Type	Single Cylinder, 4-Stroke Engine
Fuel System	Electronic fuel injection (EFI)
Front Brake	Disc brake 260 mm
Rear Brake	Disc brake 220 mm
Fuel Tank Capacity	8.5 liters
Frame	Central double-cradle type 25CrMo4 steel
