KTM 500 EXC F 2024 User Manual

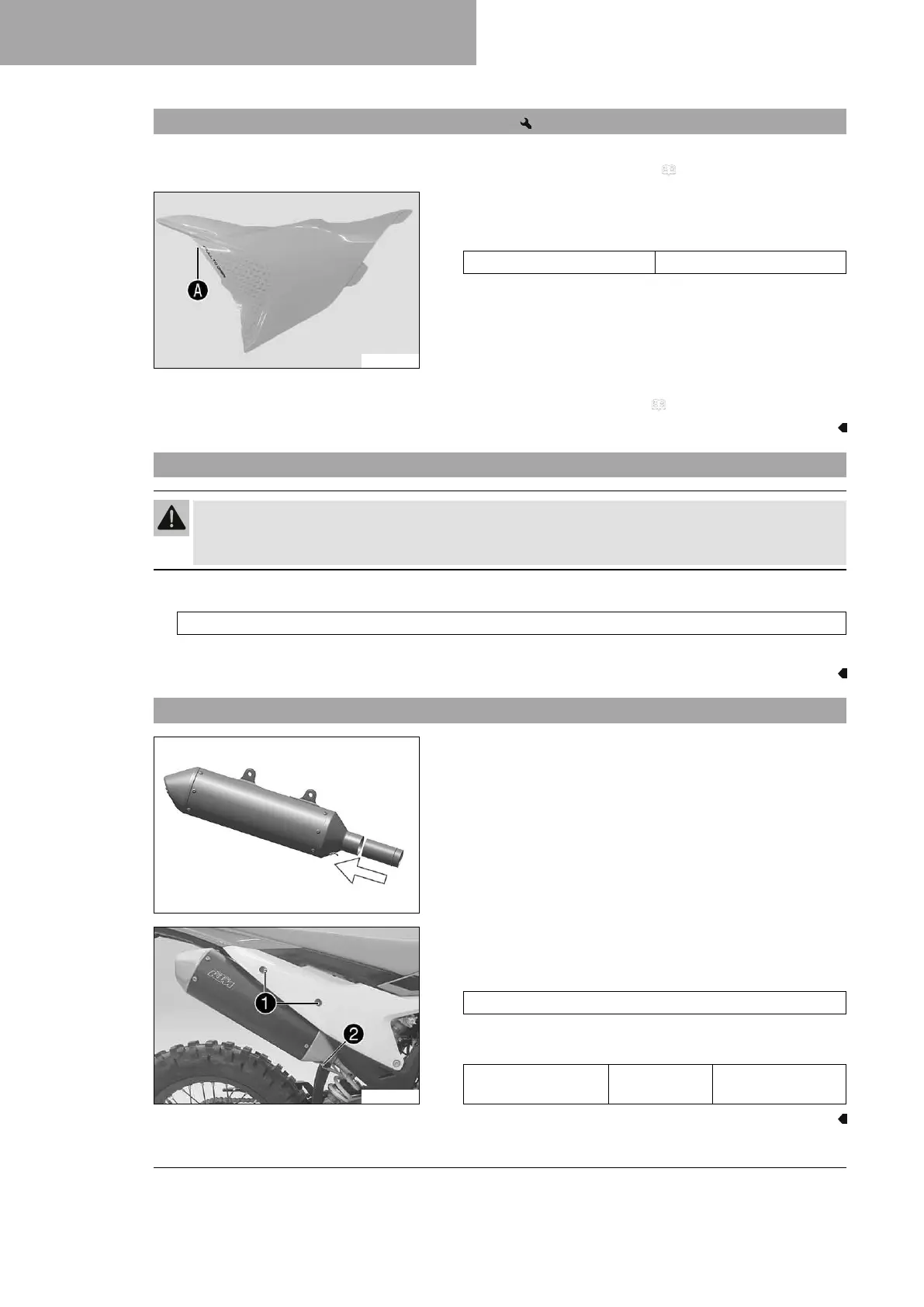

12 SERVICE WORK ON THE CHASSIS
76
12.27 Preparing air filter box cover for securing
Preparatory work
– Remove the air filter box cover. ( p. 73)
W00334-10
Main work
–
Drill a hole at marking
A
.
Guideline
Diameter 6 mm (0.24 in)
Finishing work
– Install the air filter box cover. ( p. 73)
12.28 Removing the main silencer
Warning
Danger of burns The exhaust system gets hot when the vehicle is driven.
–
Allow the exhaust system to cool down before performing any work on the vehicle.
–
Detach spring
1
.
Spring hook (50305017000C1)
–
Remove screws
2
and take off the main silencer.
12.29 Installing the main silencer
S02101-10
– Position the catalytic converter in the main silencer.
W00302-11
–
Position the main silencer. Mount screws
1
, but do not
tighten yet.
–
Attach spring
2
.
Spring hook (50305017000C1)
–
Tighten screws
1
.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)

KTM 500 EXC F 2024 Specifications

General

Displacement	510.9 cm³
Bore x Stroke	95 mm x 72 mm
Starter	Electric starter
Transmission	6-speed
Cooling	Liquid cooled
Front Suspension	WP XPLOR-USD, Ø 48 mm
Rear Suspension	WP XACT Monoshock with linkage
Ground Clearance	355 mm
Seat Height	960 mm
Dry Weight	106.5 kg
ABS	No
Engine Type	Single Cylinder, 4-Stroke Engine
Fuel System	Electronic fuel injection (EFI)
Front Brake	Disc brake 260 mm
Rear Brake	Disc brake 220 mm
Fuel Tank Capacity	8.5 liters
Frame	Central double-cradle type 25CrMo4 steel
