KTM 500 EXC F 2024 User Manual

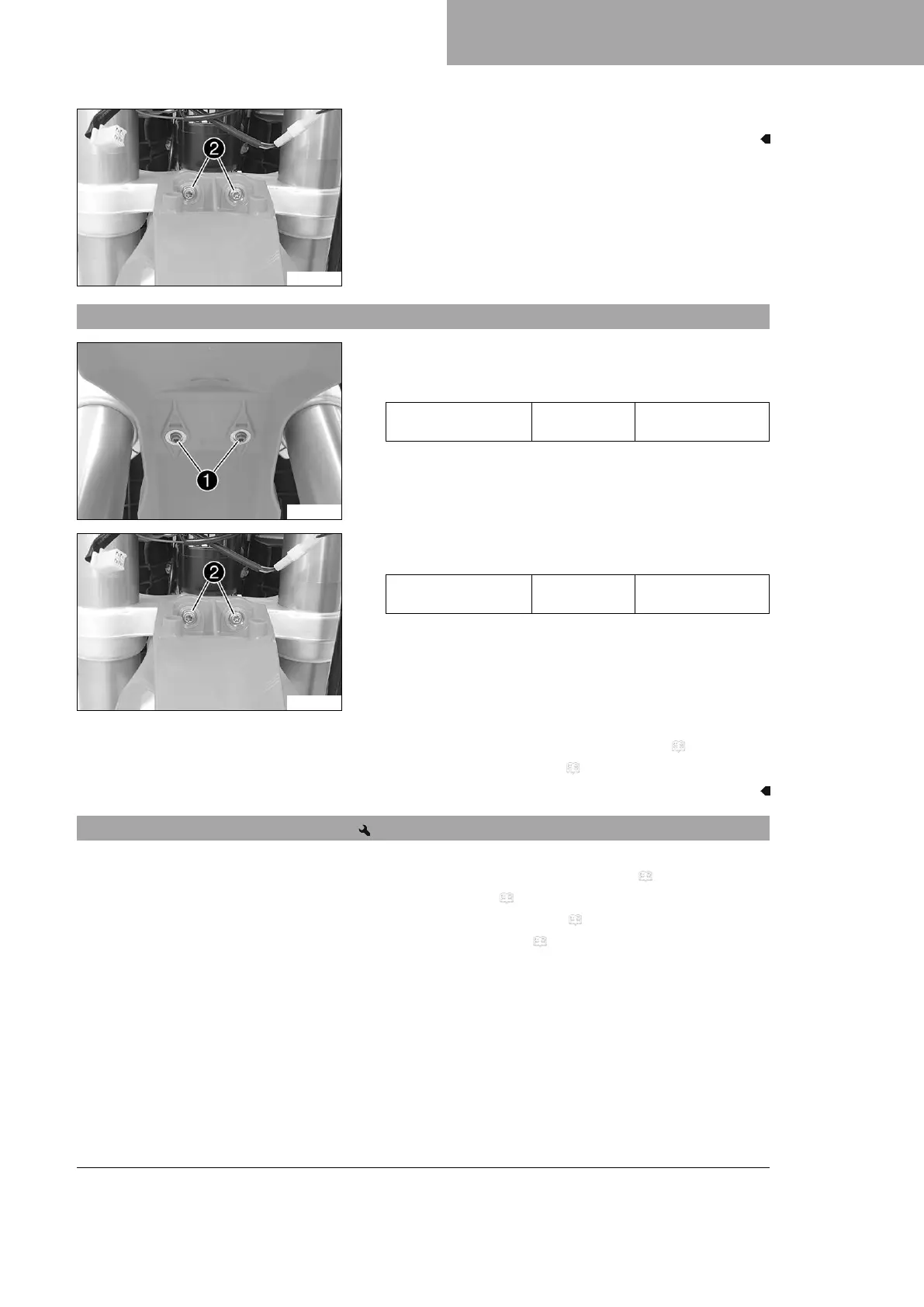

SERVICE WORK ON THE CHASSIS 12
69
V00341-10
–
Remove screws
2
. Take off the front fender.
12.17 Installing the front fender
V00340-10
Main work
–
Position the front fender. Mount and tighten screws
1
.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
V00341-10
–
Mount and tighten screws
2
.
Guideline
Remaining screws,
chassis
M6 10 Nm (7.4 lbf ft)
Finishing work
– Install the headlight mask with the headlight. ( p. 115)
– Check the headlight setting. ( p. 116)
12.18 Removing the shock absorber
Preparatory work
– Raise the motorcycle with the lift stand. ( p. 60)
– Remove the seat. ( p. 72)
– Remove the frame protector. ( p. 62)
– Remove main silencer. ( p. 76)

KTM 500 EXC F 2024 Specifications

General

Displacement	510.9 cm³
Bore x Stroke	95 mm x 72 mm
Starter	Electric starter
Transmission	6-speed
Cooling	Liquid cooled
Front Suspension	WP XPLOR-USD, Ø 48 mm
Rear Suspension	WP XACT Monoshock with linkage
Ground Clearance	355 mm
Seat Height	960 mm
Dry Weight	106.5 kg
ABS	No
Engine Type	Single Cylinder, 4-Stroke Engine
Fuel System	Electronic fuel injection (EFI)
Front Brake	Disc brake 260 mm
Rear Brake	Disc brake 220 mm
Fuel Tank Capacity	8.5 liters
Frame	Central double-cradle type 25CrMo4 steel
