KTM 500 EXC F 2024 User Manual

SERVICE WORK ON THE CHASSIS 12
73

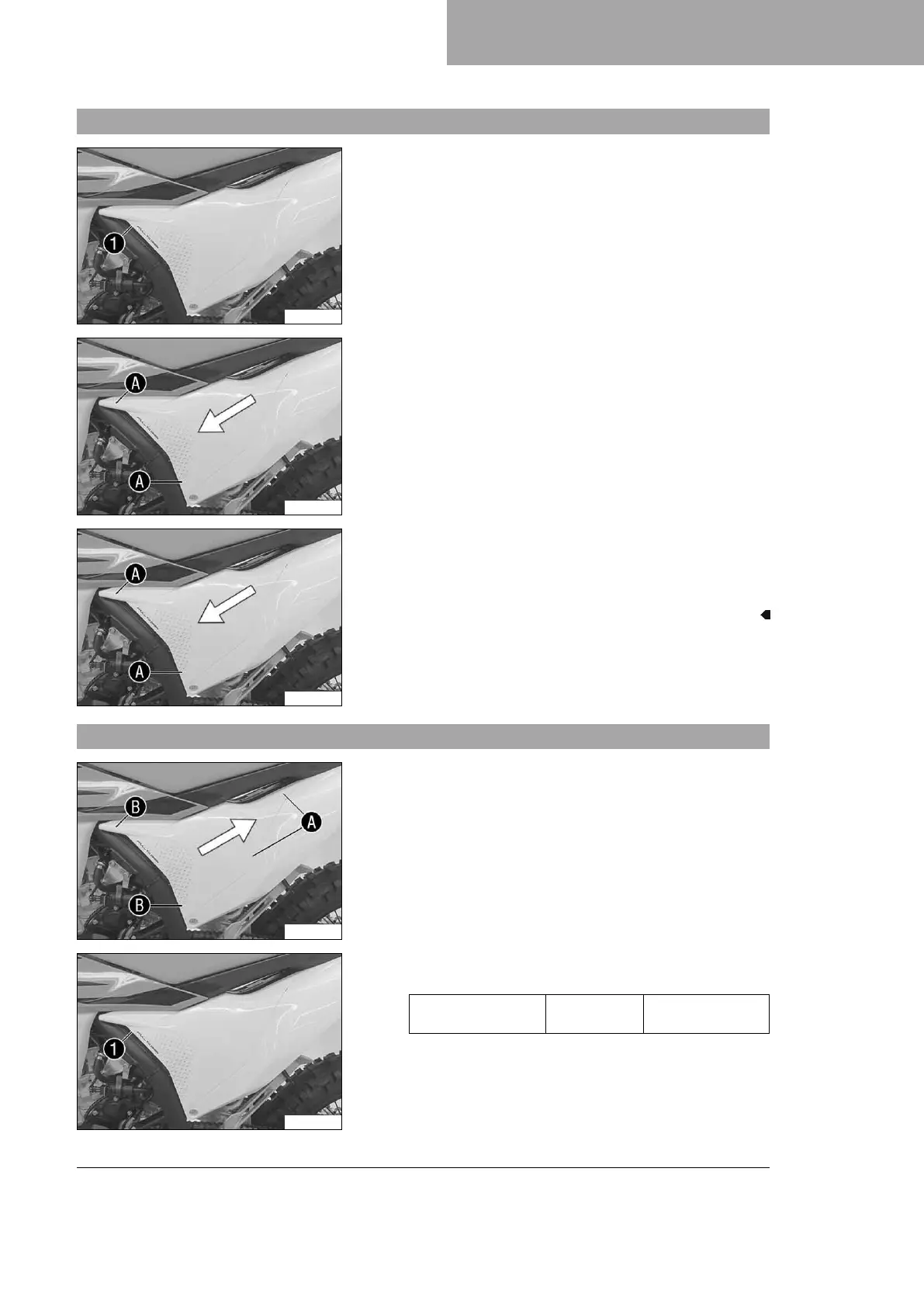

12.22 Removing the air filter box cover
W00335-10
Condition
The air filter box cover is secured.
–
Remove screw
1
.
W00336-10
–
Pull off the air filter box cover in area
A
and push it sideways
and forward. Take off the air filter box cover.
W00336-10
Condition
The air filter box cover is not secured.
–
Pull off the air filter box cover in area
A
and push it side-
ways and forward. Take off the air filter box cover.
12.23 Installing the air filter box cover
W00336-11
Condition
The air filter box cover is secured.
–
Insert the air filter box cover in area
A
and clip it into
area
B
.
W00335-10
–
Mount and tighten screw
1
.
Guideline
Screw, air filter box
cover
EJOT PT
®
K60x20-Z
3 Nm (2.2 lbf ft)

KTM 500 EXC F 2024 Specifications

General

Displacement	510.9 cm³
Bore x Stroke	95 mm x 72 mm
Starter	Electric starter
Transmission	6-speed
Cooling	Liquid cooled
Front Suspension	WP XPLOR-USD, Ø 48 mm
Rear Suspension	WP XACT Monoshock with linkage
Ground Clearance	355 mm
Seat Height	960 mm
Dry Weight	106.5 kg
ABS	No
Engine Type	Single Cylinder, 4-Stroke Engine
Fuel System	Electronic fuel injection (EFI)
Front Brake	Disc brake 260 mm
Rear Brake	Disc brake 220 mm
Fuel Tank Capacity	8.5 liters
Frame	Central double-cradle type 25CrMo4 steel
