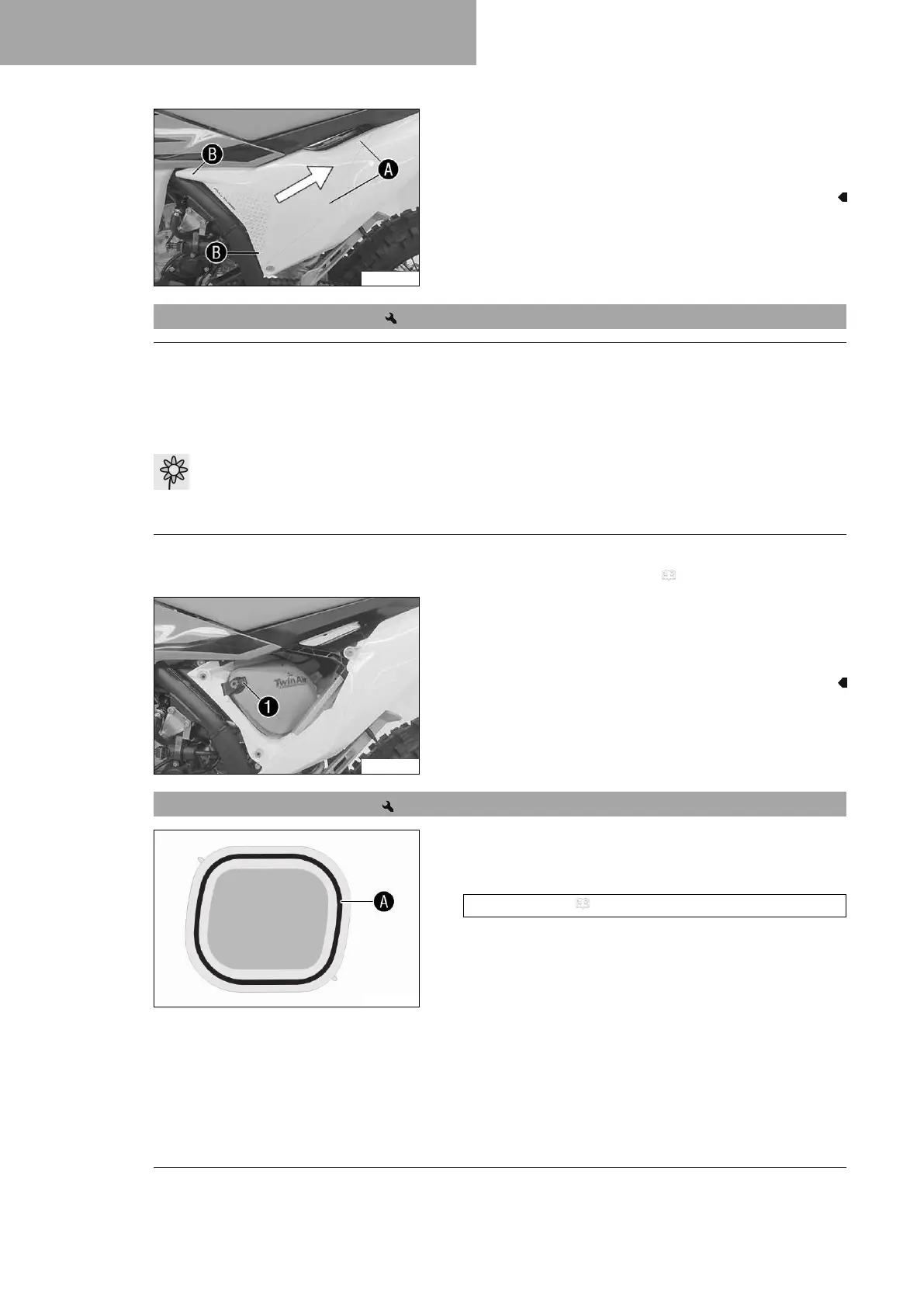

KTM 500 EXC F 2024 User Manual

12 SERVICE WORK ON THE CHASSIS
74
W00336-11
Condition
The air filter box cover is not secured.
–
Insert the air filter box cover in area
A
and clip it into
area
B
.
12.24 Removing the air filter
Note
Engine damage Unfiltered intake air has a negative effect on the service life of the engine.
Dust and dirt will enter the engine without an air filter.
– Only operate the vehicle if it is equipped with an air filter.
Note
Environmental hazard Hazardous substances cause environmental damage.
– Dispose of oils, grease, filters, fuel, cleaning agents, brake fluid, etc., correctly and in compliance with
the applicable regulations.
Preparatory work
– Remove the air filter box cover. ( p. 73)
W00337-10
Main work
–
Detach retaining tab
1
. Remove air filter with air filter sup-
port.
–
Remove air filter from air filter support.
12.25 Installing the air filter
H02459-01
Main work
– Mount the clean air filter on the air filter support.
–
Grease the air filter in area
A
.
Long-life grease ( p. 154)

KTM 500 EXC F 2024 Specifications

General

Displacement	510.9 cm³
Bore x Stroke	95 mm x 72 mm
Starter	Electric starter
Transmission	6-speed
Cooling	Liquid cooled
Front Suspension	WP XPLOR-USD, Ø 48 mm
Rear Suspension	WP XACT Monoshock with linkage
Ground Clearance	355 mm
Seat Height	960 mm
Dry Weight	106.5 kg
ABS	No
Engine Type	Single Cylinder, 4-Stroke Engine
Fuel System	Electronic fuel injection (EFI)
Front Brake	Disc brake 260 mm
Rear Brake	Disc brake 220 mm
Fuel Tank Capacity	8.5 liters
Frame	Central double-cradle type 25CrMo4 steel
