MAINTENANCE WORK ON CHASSIS AND ENGINE 116
– Mount the orange plug.
– Position the diffuser.
– Insert the screw and turn it first anticlockwise until it engages in the thread. Tighten
the screw slightly.
– Check the flasher system function.

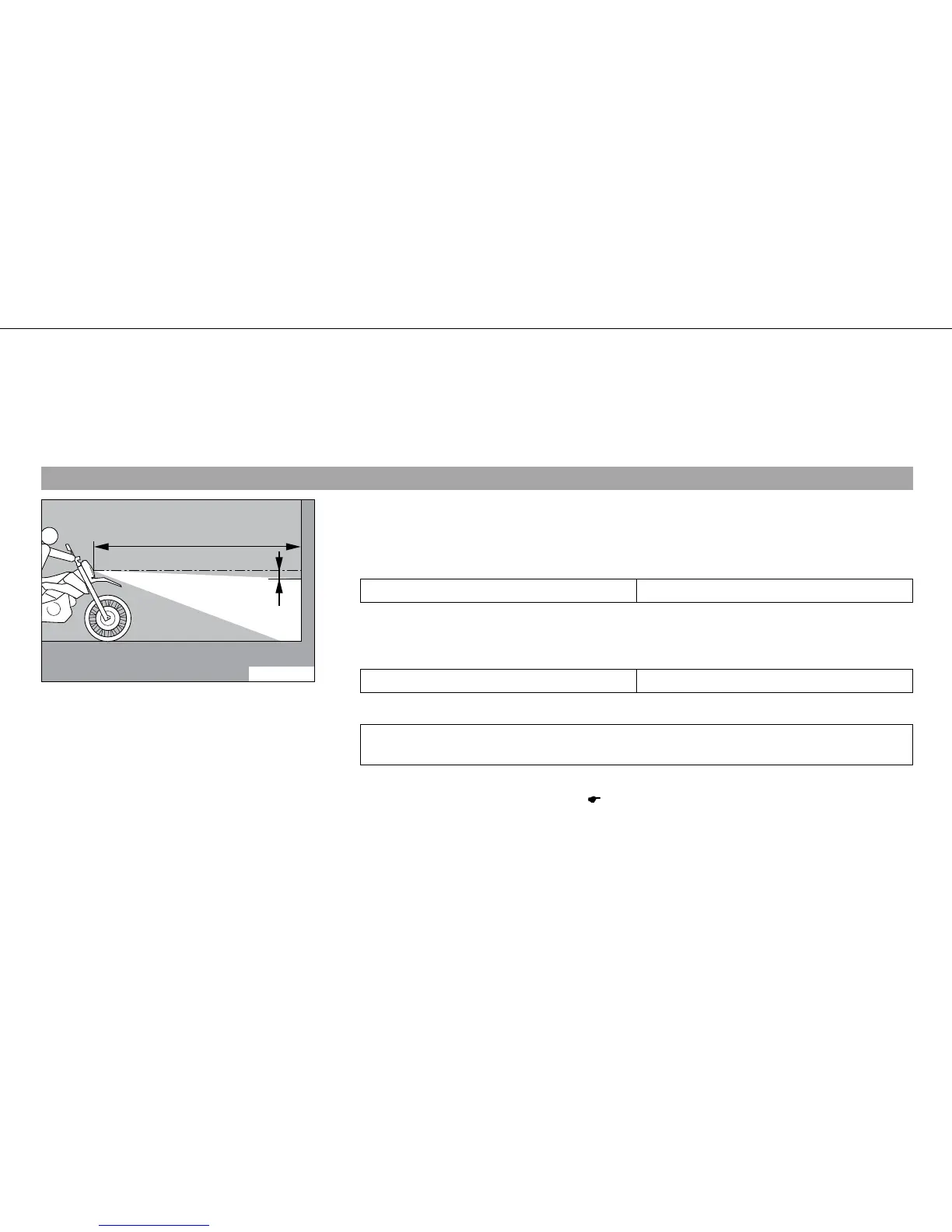

9.59Checking headlamp setting
0
0
BB
0
0
AA
400408-10
– On a light-colored wall with a horizontal area in front of it, make a mark as high as the
center of the low beam headlight.
– Make another mark at a distance of  under the first mark.
Guideline
Distance  5 cm (2 in)
– Stand the motorcycle at a distance of  in front of the wall and switch on the low
beam.
Guideline
Distance  5 m (16 ft)
– Check the headlamp setting.
The boundary between light and dark must be exactly on the lower mark for a motor-
cycle with driver.
» If the boundary between light and dark does not meet specifications:
– Adjust the headlight range. ( p. 117)
