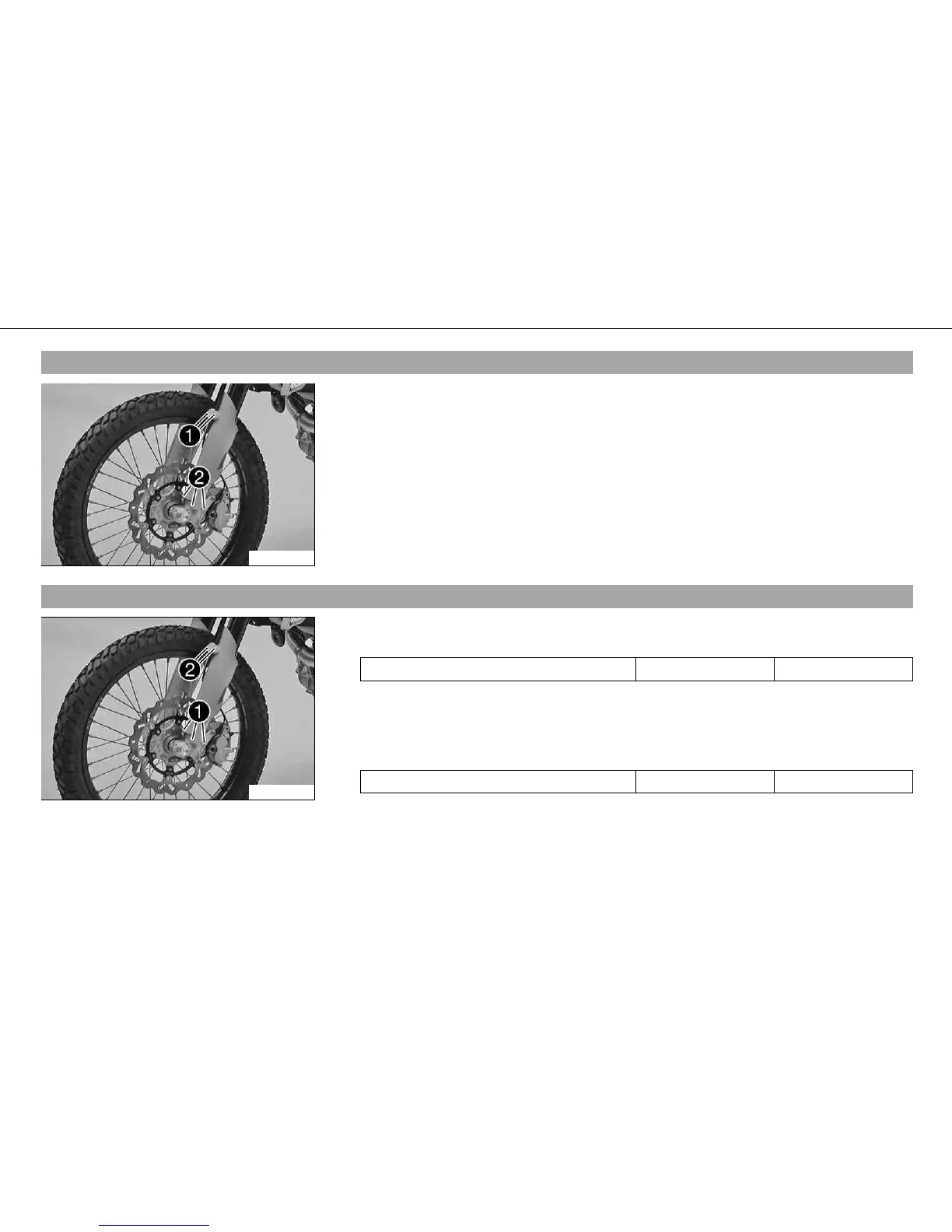

MAINTENANCE WORK ON CHASSIS AND ENGINE 64
9.12Loosening the fork protection
800075-10
– Remove screws and take off clamp.
– Remove screws on left fork leg. Push the fork protection downwards.
– Remove the screws on the right fork leg. Push the fork protection downwards.
9.13Positioning the fork protection
800075-11
– Position the fork protection on the left fork leg. Mount and tighten screws .
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
– Position the brake line and cable harness. Put the clamp on, mount and tighten
screws .
– Position the fork protection on the right fork leg. Mount and tighten screws.
Guideline
Remaining screws, chassis M6 10 Nm (7.4 lbf ft)
