MAINTENANCE WORK ON CHASSIS AND ENGINE 67

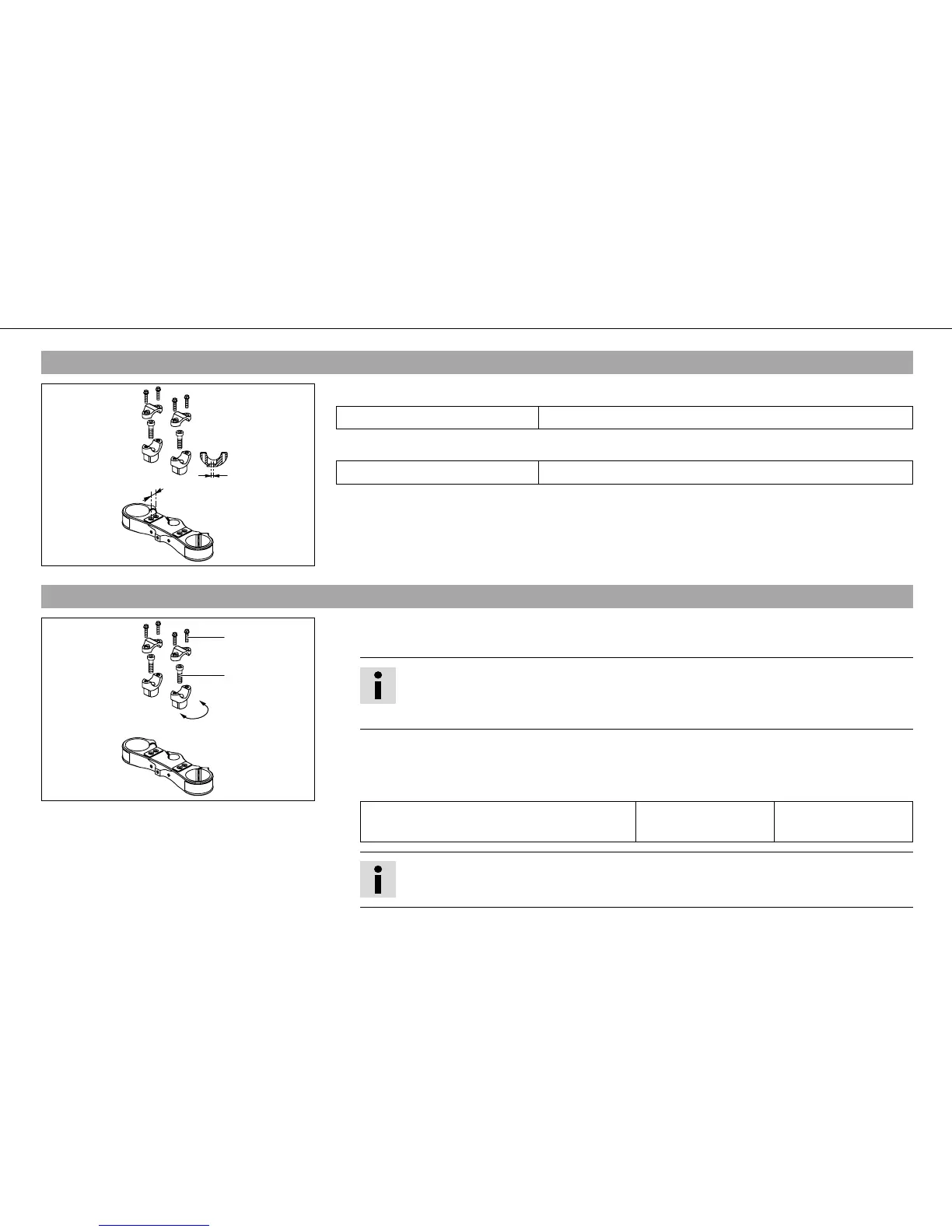

9.16Handlebar position
400271-11
On the upper triple clamp, there are 2 holes at a distance to each other.
Distance between holes 15 mm (0.59 in)
The holes on the handlebar support are placed at a distance from the center.
Distance between holes 3.5 mm (0.138 in)
The handlebar can be mounted in 4 different positions. In this way, the handlebar can be
installed in the position most comfortable for the rider.
9.17Adjusting handlebar position x
400271-10
– Remove the four screws . Remove the handlebar clamp. Remove the handlebar and
lay it to one side.
Info
Protect the motorcycle and its attachments from damage by covering them.
Do not bend the cables and lines.
– Remove the two screws . Remove the handlebar support.
– Place the handlebar support in the required position. Fit and tighten the two screws .
Guideline
Screw, handlebar support M10 40 Nm
(29.5 lbf ft)
Info
Position the left and right handlebar supports evenly.
