93PERIODIC SERVICE

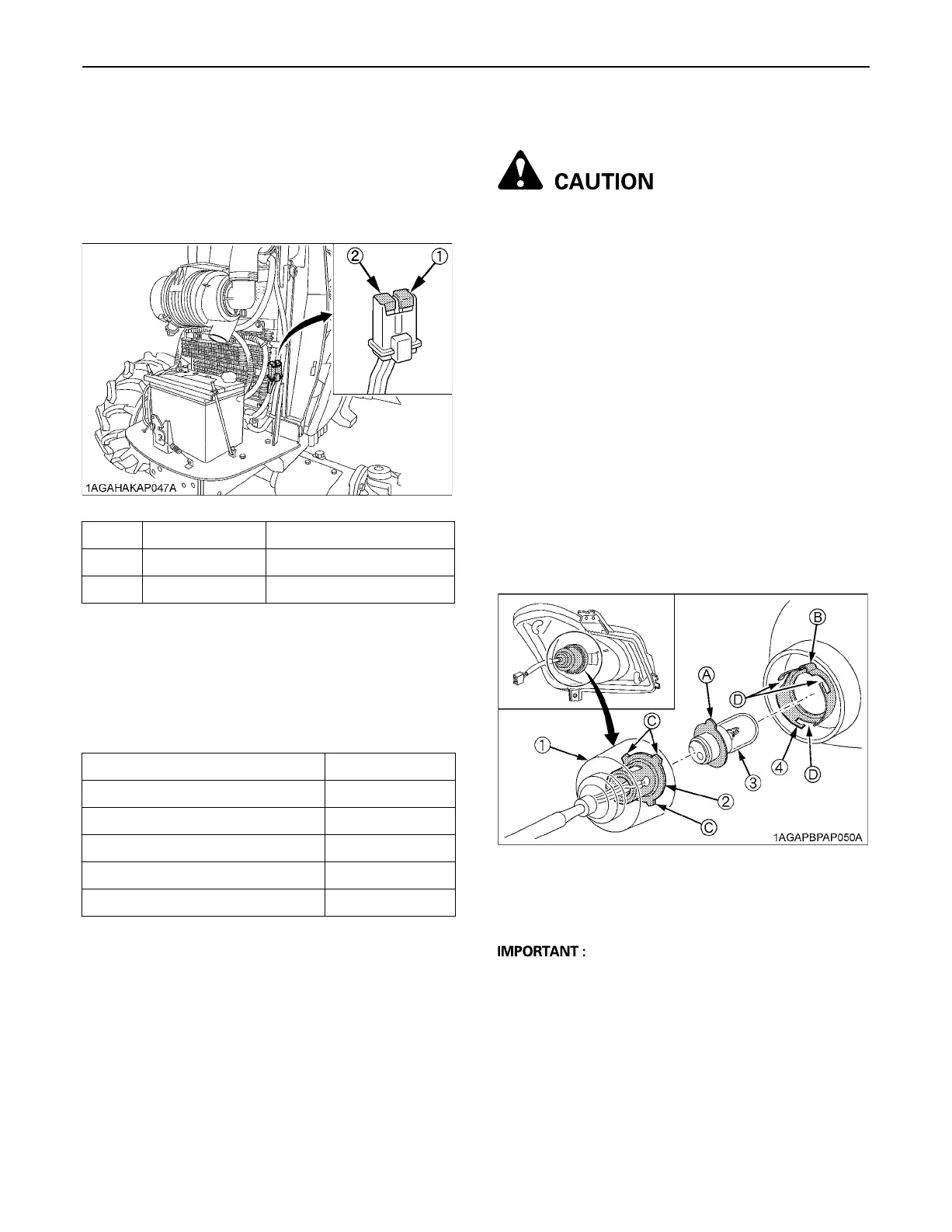

BReplacing Slow-Blow Fuses
The slow-blow fuses are intended to protect the electrical
cabling. If any of them has blown out, be sure to pinpoint
the cause. Never use any substitute, use only a KUBOTA
genuine part.
BReplacing Light Bulb
1. Head light and rear combination lights :
Take the bulb out of the light body and replace with a
new one.
2. Other lights :
Detach the lens and replace the bulb.
BReplacing Head Lamp
To avoid personal injury:
A Be careful not to drop the bulb, hit anything
against the lamp, apply excess force, and get
the lamp scratched. If broken, glass may cause
injury. Pay more attention to halogen lamps in
particular, which have high pressure inside.
A Before replacing the lamp, be sure to turn off
the light and wait until the bulb cools down,
otherwise, you may get burned.
C Removing Bulb
1. Remove the rubber boot.
2. Turn the socket counterclockwise while pressing and
remove it.
3. Remove the bulb.
C Attaching Bulb
1. Align (A) of the bulb with (B) of the lamp case and
attach the bulb.
2. Align (C) of the socket with (D) of the lamp case and
attach the socket.
3. Attach the rubber boot.
A Be sure to use a new bulb of the specified wattage.
A Never touch the bulb surface (glass) with bare hands.
Fingerprints, for example, may break the bulb.
No. Capacity (A) Protected circuit
140LOAD
260BATTERY
Light Capacity
Head lights 35W / 35W
Tail light 5W
Turn signal / Hazard light (Left) 21W
Turn signal / Hazard light (Right) 27W
Instrument panel light 1.7W
(1) Rubber boot
(2) Socket
(3) Bulb
(4) Lamp Case
(A) "Align to (B)"
(C) "Align to (D)"
