3-POINT HITCH & DRAWBAR48
3-POINT HITCH
BCategory 1 & 2
This tractor has both category 1 & 2.
Category 1 type is standard and assemble all parts shown
as below.
To change from category 1 to category 2.
1. Remove adjusting collar from the lower link.
2. Remove adjusting collar from the rear top link pin.
3. Use the correct rear top link pin for category 2.

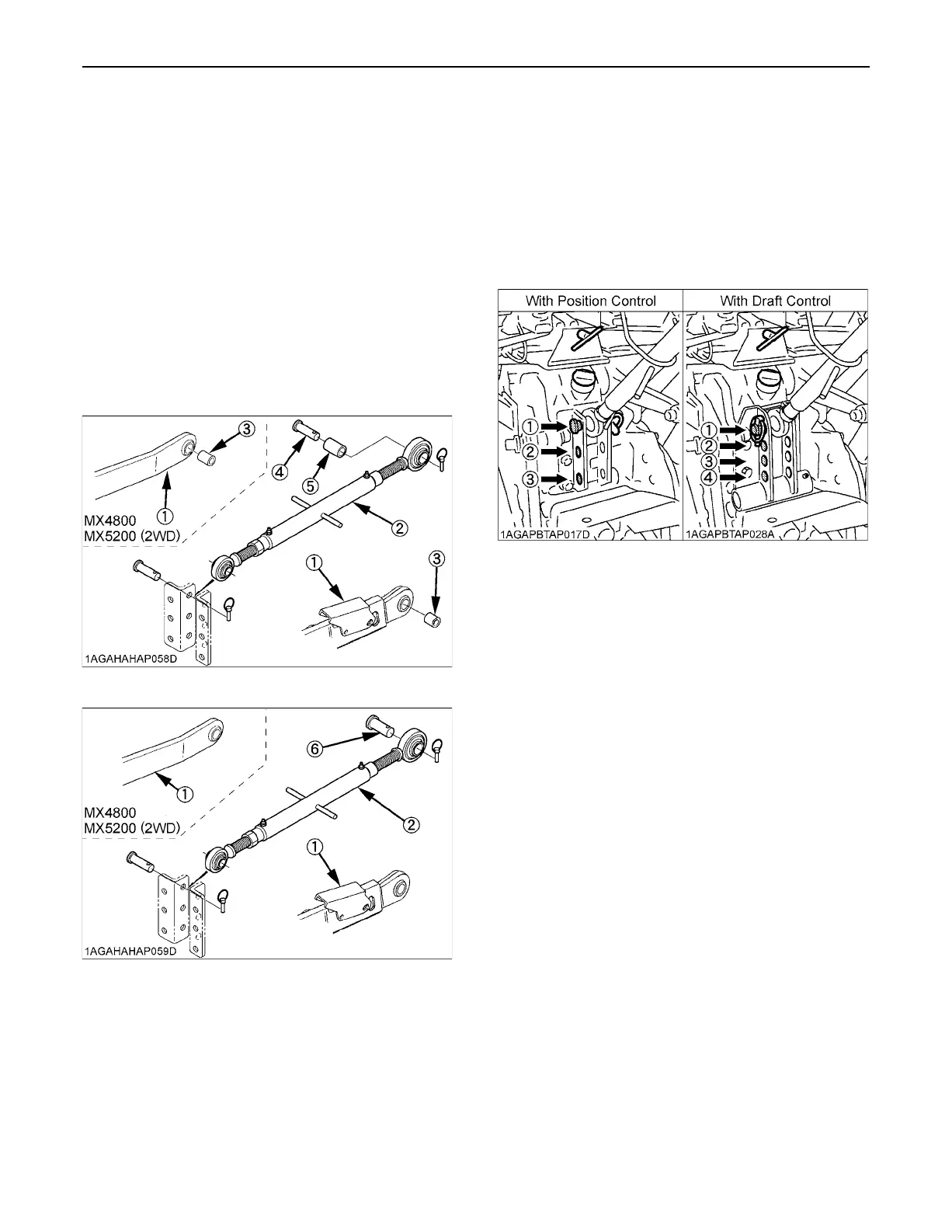

[Category 1 type]
[Category 2 type]
BSelecting the top link mounting holes
Select the proper set of holes by referring to the
"Hydraulic Control Unit Use Reference Chart" in
"HYDRAULIC UNIT" section.
If the hydraulic unit is set for draft control, draft response
is more sensitive when an implement is connected to the
upper set of top link mounting holes. If draft control is not
required, it is recommended to use the low set (4).
BDrawbar
Remove the drawbar if a close mounted implement is
attached.
1. Make preparations for attaching
implement.
(1) Lower link
(2) Top link
(3) Collar, lower link (1)
(4) Top link rear pin (1)
(5) Collar, top link (1)
(6) Top link rear pin (2)
