Kubota MX5200 User Manual

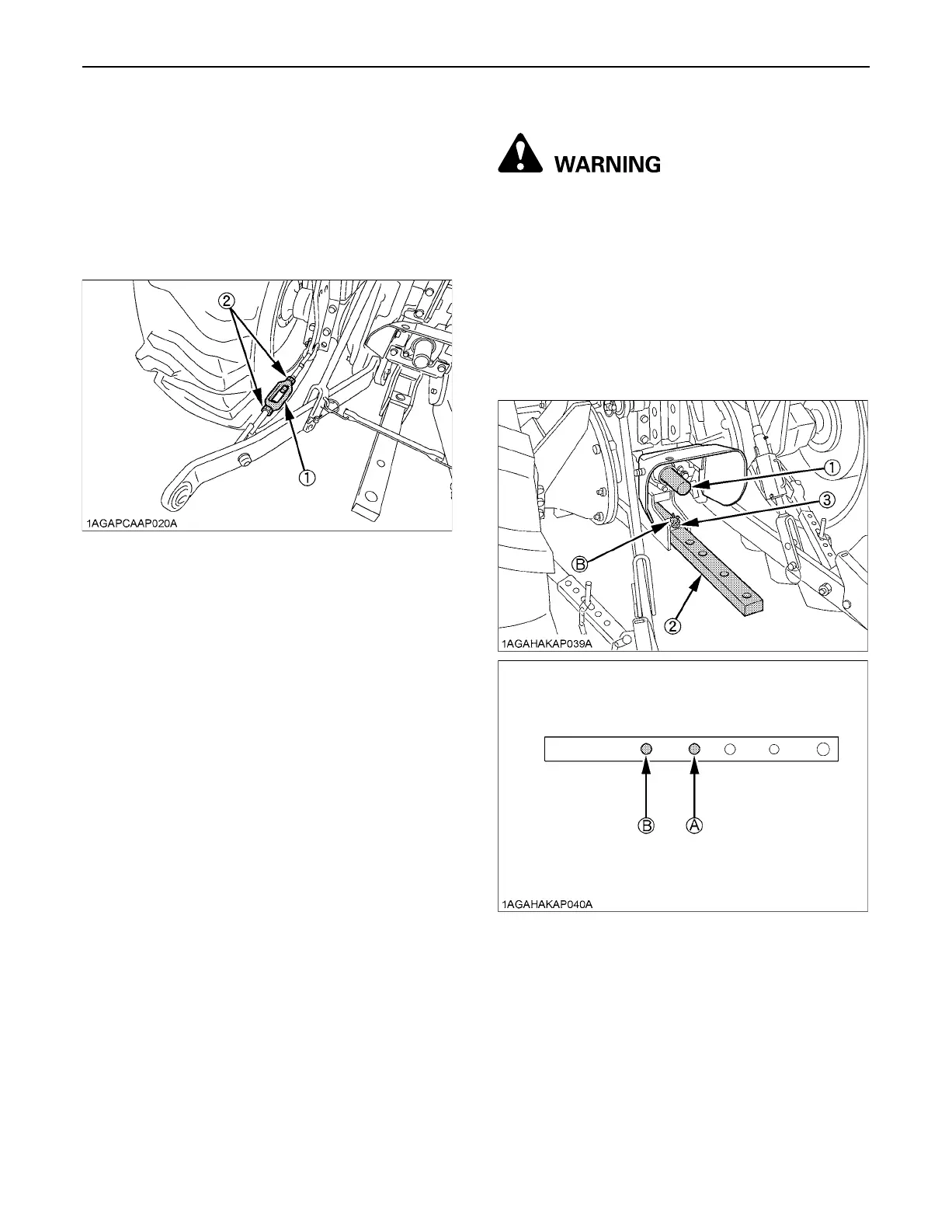

513-POINT HITCH & DRAWBAR
BCheck Chains
[MX4800, MX5200 (2WD)]
Adjust the turnbuckle to control horizontal sway of the
implement. See "Hydraulic Control Unit Use Reference
Chart" in "AUXILIARY HYDRAULICS" in "HYDRAULIC
UNIT" section.
After adjustment, retighten the lock nut.
BLower link holder
When operating the tractor without a 3-point hitch
implement, it is necessary to lock the lower links to
prevent them from hitting the tractor rear wheels.
DRAWBAR
To avoid personal injury or death:
A Never pull from the top link, the rear axle or any
point above the drawbar. Doing so could cause
the tractor to tip over rearward causing
personal injury or death.
BAdjusting Drawbar Length
When towing an implement, recommend use of (B) hole in
drawbar.
The drawbar load is referred to "IMPLEMENT
LIMITATIONS" section.
(1) Turnbuckle
(2) Lock nut
(1) PTO shaft
(2) Drawbar
(3) Pivot pin
Holes : (A),(B)
0000012651.book Page 51 Thursday, October 1, 2015 3:53 PM

Kubota MX5200 Specifications

General

Engine Type	Diesel
Lift Capacity	2, 535 lbs
Fuel Type	Diesel
Number of Cylinders	4
Brakes	Wet disc
Hydraulic System Type	Open center
Hydraulic Pump Capacity	8.7 gpm
PTO Speed	540 RPM
3-Point Hitch	Category I
Transmission Type	Gear, HST
Number of Gears	8 forward, 8 reverse
Tire Size (Front)	7-16
