PERIODIC SERVICE78

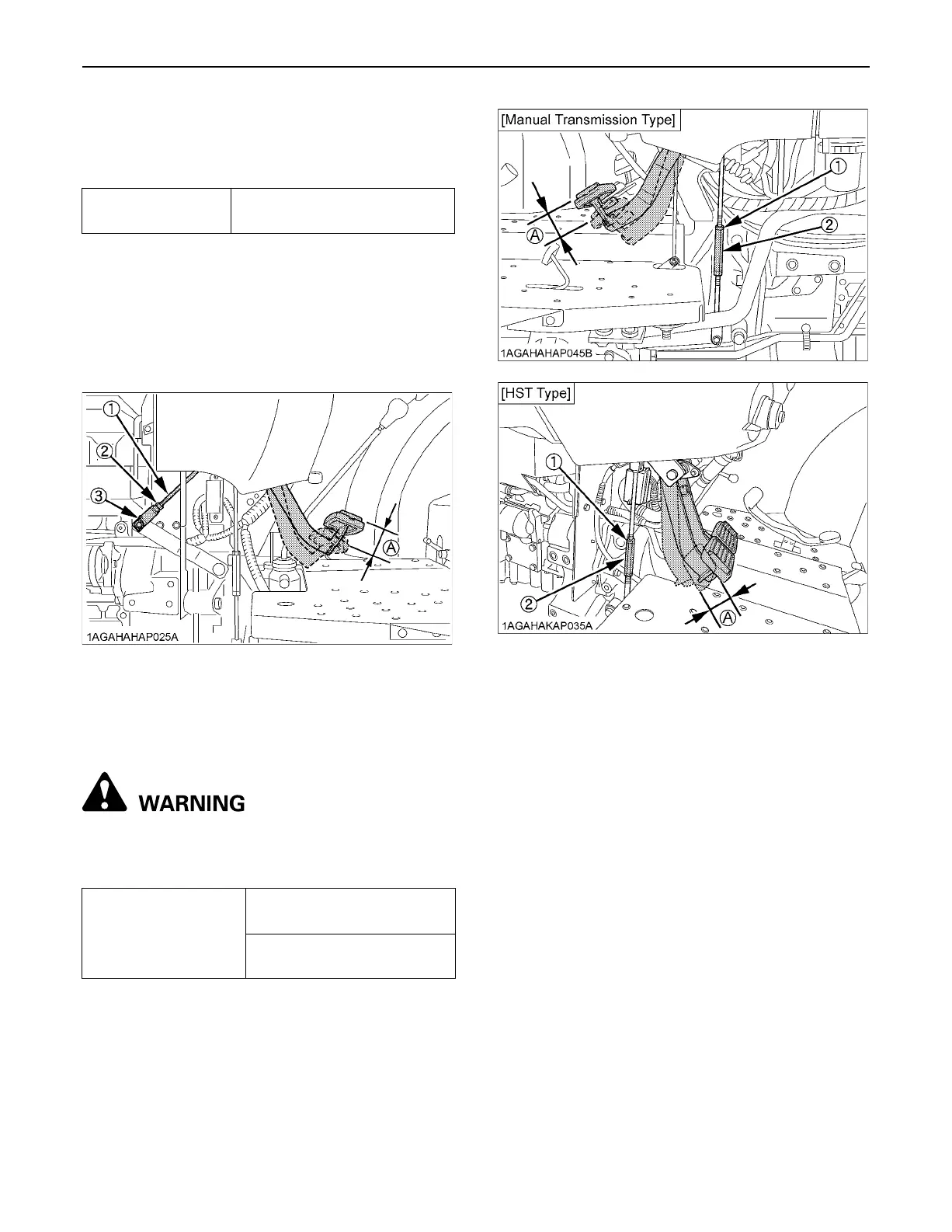

BAdjusting Clutch Pedal
[Manual Transmission Type]
C Adjusting procedure
1. Stop the engine and remove the key.
2. Slightly depress the clutch pedal and measure free
travel at top of pedal stroke.
3. If adjustment is needed, loosen the lock nut, remove
the cotter pin and adjust the rod length within
acceptable limits.
4. Retighten the lock nut and split the cotter pin.
BAdjusting Brake Pedal
To avoid personal injury or death:
A Stop the engine and chock the wheels before
checking brake pedal.
1. Release the parking brake.
2. Slightly depress the brake pedals and measure free
travel at the top of pedal stroke.
3. If adjustment is needed, loosen the lock nut and turn
the turnbuckle to adjust the rod length within
acceptable limits.
4. Retighten the lock nut.
Proper clutch pedal
free travel
20 to 30 mm (0.8 to 1.2 in.)
on the pedal
(1) Clutch rod
(2) Nut
(3) Cotter pin
(A) Free travel
Proper brake pedal
free travel
15 to 20 mm (0.6 to 0.8 in.) on
the pedal
Keep the free travel in the right
and left brake pedals equal.
(1) Lock nut
(2) Turnbuckle
(A) "FREE TRAVEL"
