Kubota MX5200 - To Raise the ROPS to Upright Position

OPERATING THE TRACTOR28
2. Fold the ROPS.
To avoid personal injury:
A Hold the ROPS tightly with both hands and fold
the ROPS slowly and carefully.
3. Align set bolt holes and insert both set bolts. Slightly
tighten the set bolts and secure them with the hair pin
cotters.
To avoid personal injury:
A Make sure that both set bolts are properly
installed and secured with the hair pin cotters.
BTo Raise the ROPS to Upright Position
1. Remove both hair pin cotters and set bolts.
2. Raise ROPS to the upright position.
To avoid personal injury:
A Raise the ROPS slowly and carefully.
3. Align set bolt holes, insert both set bolts. Slightly
tighten the set bolts and secure them with the hair pin
cotters.
To avoid personal injury:
A Make sure that both set bolts are properly
installed as soon as the ROPS is in the upright
position and secured with the hair pin cotters.

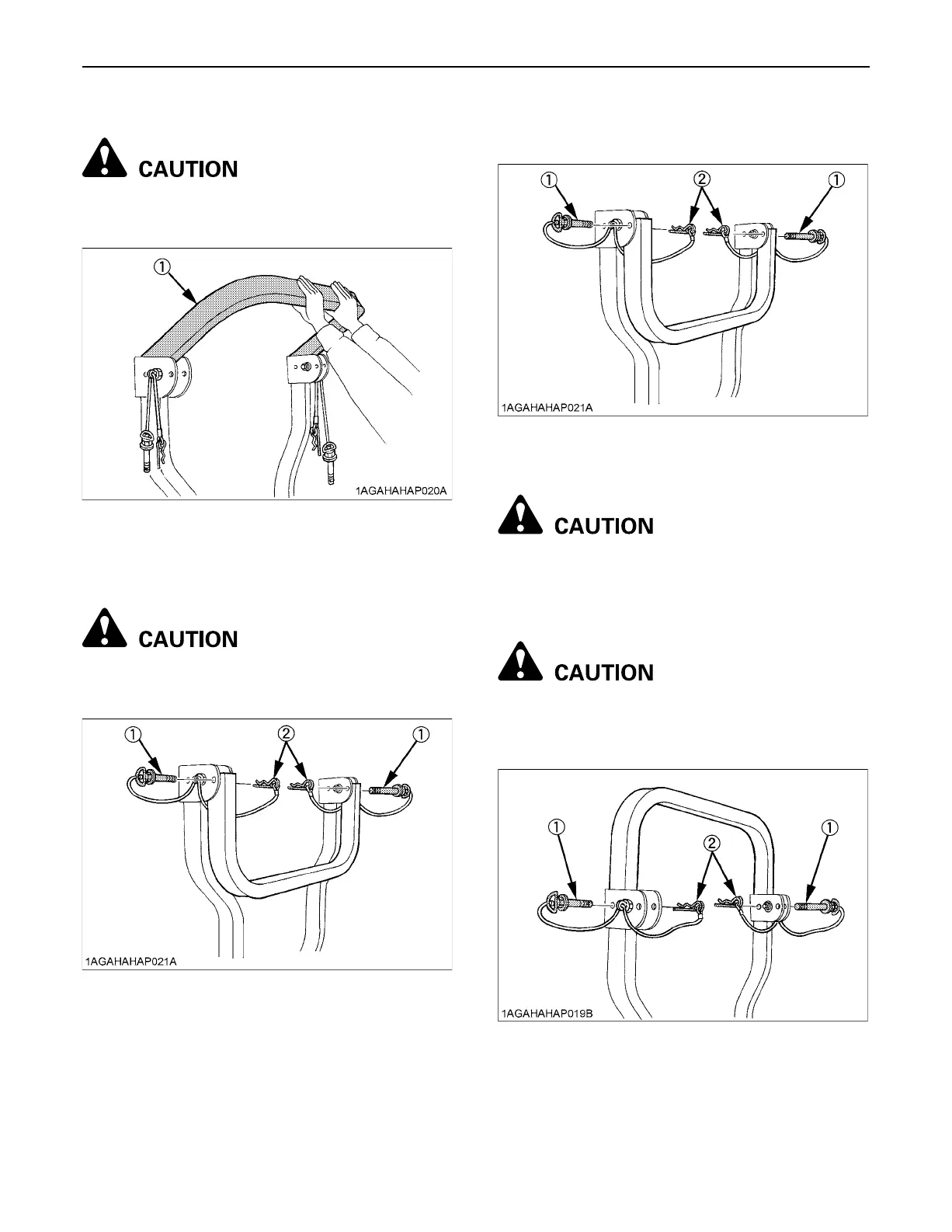

(1) ROPS
(1) Set bolt
(2) Hair pin cotter
(1) Set bolt
(2) Hair pin cotter
(1) Set bolt
(2) Hair pin cotter
