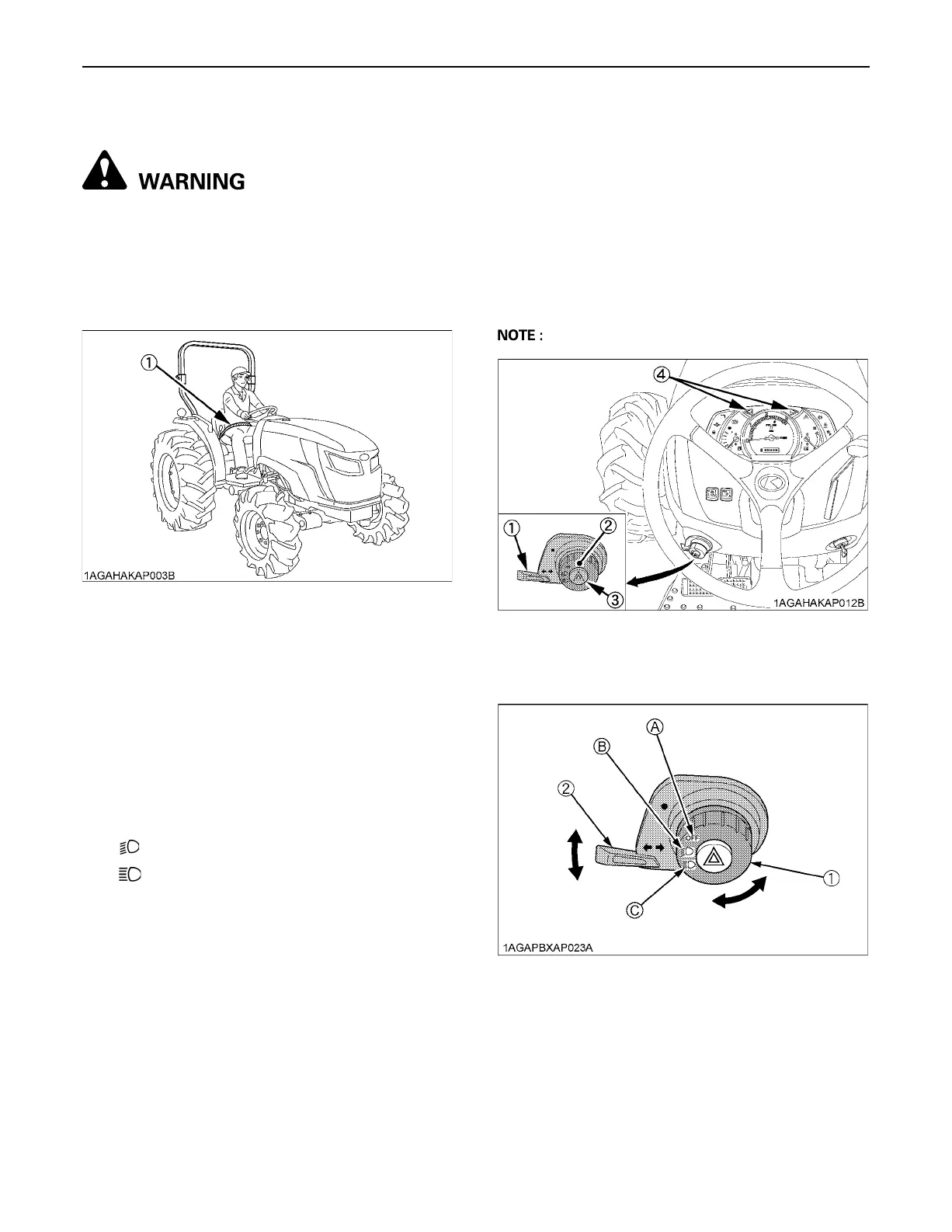

OPERATING THE TRACTOR30
BSeat Belt
To avoid personal injury or death:
A Always use the seat belt when any ROPS or
CAB are installed.
A Do not use the seat belt if a foldable ROPS is
down or there is no ROPS.
Adjust the seat belt for proper fit and connect the buckle.
This seat belt is auto-locking retractable type.
BHead Light / Turn Signal / Hazard Light
Switch
C Head Light Switch
Turn the light switch clockwise, and the following lights are
activated on the switch position.
C Hazard Light Switch
When hazard light switch is pushed, the hazard lights
flash along with the indicator on the instrument panel.
Press the hazard light switch again to turn off the light.
C Turn Signal with Hazard Light
1. To indicate a right turn with the hazard lights already
flashing (hazard on), turn the knob clockwise.
2. To indicate a left turn with the hazard lights already
flashing, turn the knob counterclockwise.
3. When the left or right turn signal is activated in
combination with the hazard lights, the indicated
turning light will flash and the other will stay on.
C Turn Signal without Hazard light
1. To indicate a right turn without hazard lights (hazard
off), turn the knob clockwise.
2. To indicate a left turn without hazard lights, turn the
knob counterclockwise.
3. When the left or right turn signal is activated without
the hazard lights, the indicated turning light will flash
and the other will be on.
A Be sure to return switch to center position after turning.
(1) Seat belt
2. Selecting light switch positions.
(A) OFF.... Head lights OFF.
(B) .... Head lights dimmed, low beam.
(C) .... Head lights ON, high beam.
(1) Turn signal light switch
(2) Head light switch
(3) Hazard light switch
(4) Hazard / Turn signal indicator
(1) Head light switch
(2) Turn signal light switch
(A) "OFF"
(B) "ON (LOW)"
(C) "ON (HIGH)"
0000012651.book Page 30 Thursday, October 1, 2015 3:53 PM
