33OPERATING THE TRACTOR
[Manual Transmission Type]
By combination of using the main gear shift lever, the
range gear shift lever and synchro-shuttle shift lever,
forward speeds and reverse speeds shown in the table
below are obtained.
BMain Gear Shift Lever
The main gear shift is partially synchronized allowing to
shift on the go between 3rd and 4th speeds.
Just depress the clutch and shift, coming to a complete
stop is not necessary.
When changing between 1st and 2nd speeds, depress
the clutch and stop the tractor before shifting.
A To avoid transmission damage, depress clutch pedal
and stop the tractor before shifting 1st or 2nd speeds.
A For road travel, start the tractor in a lower gear (6th
and 7th), and then shift to a higher gear (7th and 8th).
This will prolong the service life of clutch.
BRange Gear Shift Lever
The range gear shift can only be shifted when the tractor
is completely stopped and the clutch is depressed.
A To avoid transmission damage, depress clutch pedal
and stop the tractor before shifting between ranges.

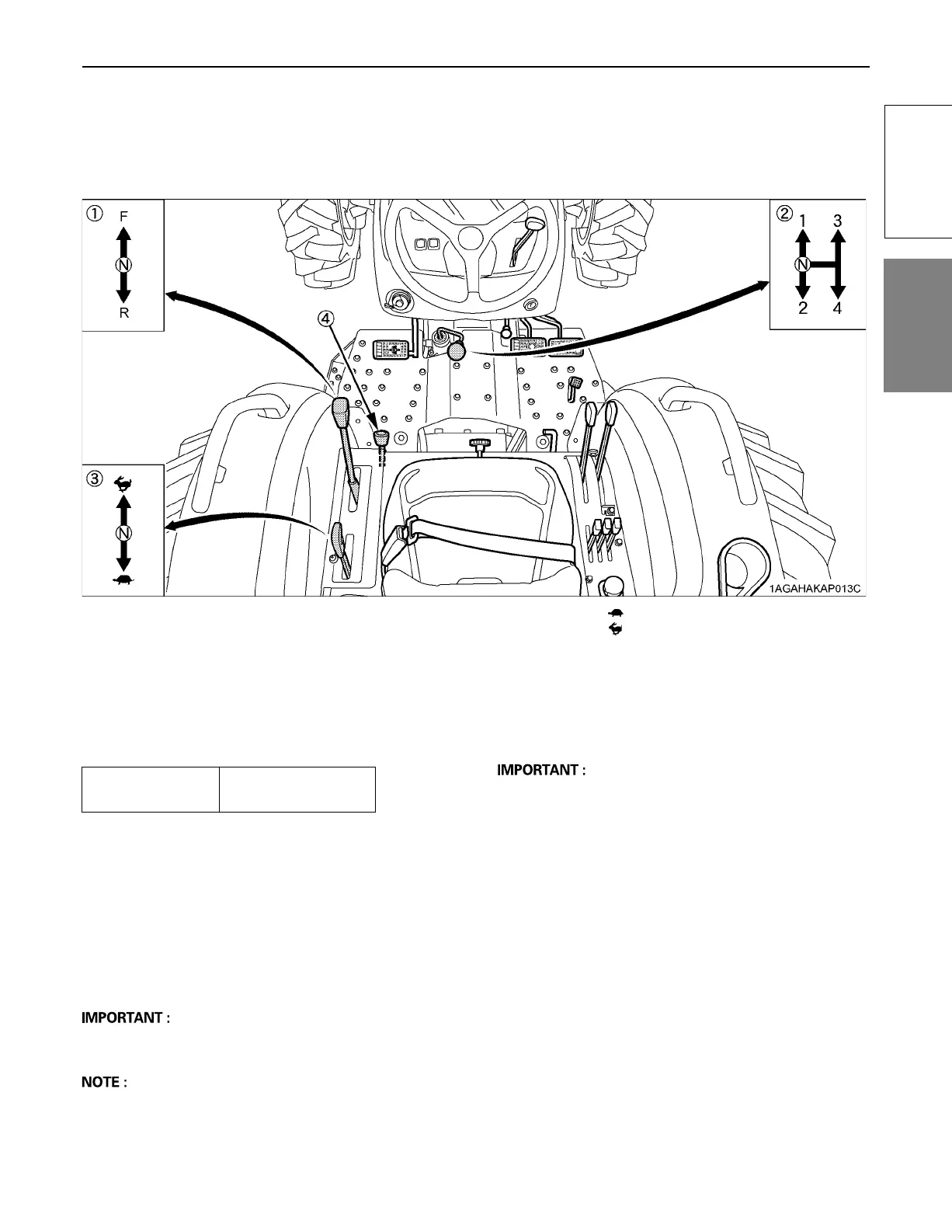

6. Selecting the Travel Speed.
(1) Synchro-shuttle shift lever
(2) Main gear shift lever
(3) Range gear shift lever
(4) Front wheel drive lever [4WD]
(F) "FORWARD"
(N) "NEUTRAL POSITION"
(R) "REVERSE"
"LOW"
"HIGH"
Standard model
8 forward speeds
8 reverse speeds
HST
MT
