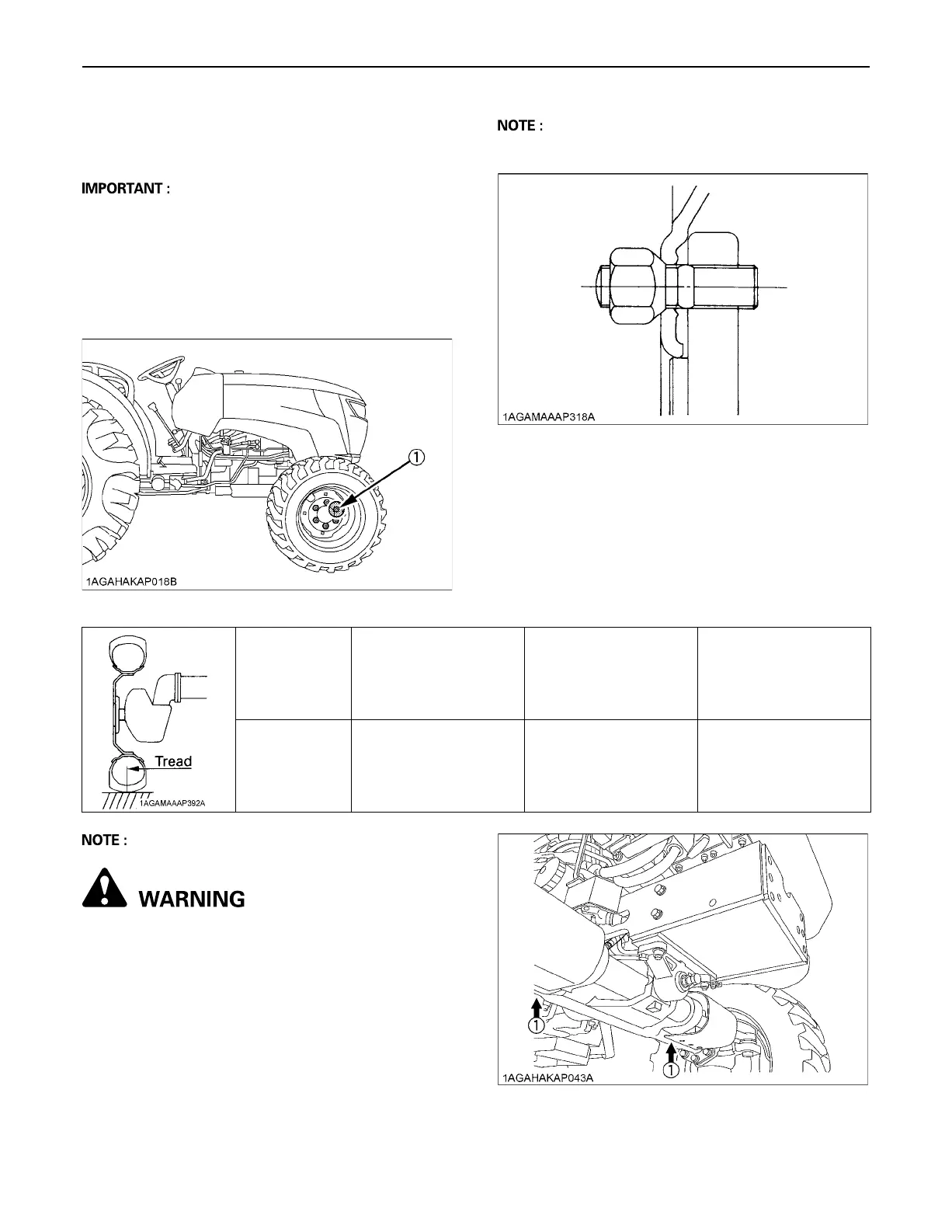

59TIRES, WHEELS AND BALLAST
BFront Wheels (with 4-wheel drive)
Front tread can not be adjusted.
A Do not turn front discs to obtain wider tread.
A When re-fitting or adjusting a wheel, tighten the bolts
to the following torques then recheck after driving the
tractor 200 m (200 yards) and 10 times of shuttle
movement by 5 m (5 yards), and thereafter according
to service interval.
(See "MAINTENANCE" section.)
A Wheels with beveled or tapered holes: Use the
tapered side of lug nut.
A IND...for Industrial
To avoid personal injury or death:
A Before jacking up the tractor, park it on a firm
and level ground and chock the rear wheels.
A Fix the front axle to keep it from pivoting.
A Select jacks that withstand the machine weight
and set them up as shown below.
(1) 124.0 to 147.0 N-m (12.6 to 15.0 kgf-m, 91.5 to 108.4 ft-lbs)
Tire
9.5-16
Farm
12-16.5
IND
29 x 12.5-15
Turf
Tread
1325 mm
(52.2 in.)
1325 mm
(52.2 in.)
1305 mm
(51.4 in.)
(1) Jack points
0000012651.book Page 59 Thursday, October 1, 2015 3:53 PM
