75PERIODIC SERVICE
BChecking Engine Start System
To avoid personal injury or death:
A Do not allow anyone near the tractor while
testing.
A If the tractor does not pass the test, do not
operate the tractor.
C Preparation before testing.
1. Place all control levers in the "NEUTRAL" position.
2. Set the parking brake and stop the engine.
[Manual Transmission Type]
C Test: Switch for the shuttle shift lever.
1. Sit on the operator's seat
2. Shift the shuttle shift lever to the forward or reverse
position.
3. Depress the clutch pedal fully.
4. Disengage the PTO clutch control switch or lever.
5. Turn the key to "START" position.
6. The engine must not crank.
7. If it cranks, consult your local KUBOTA Dealer for this
service.
C Test: Switch for the PTO clutch control switch or
lever.
1. Sit on the operator's seat.
2. Engage the PTO clutch control switch or lever.
3. Depress the clutch pedal fully.
4. Shift the shuttle shift lever to the neutral position.
5. Turn the key to "START" position.
6. The engine must not crank.
7. If it cranks, consult your local KUBOTA Dealer for this
service.
[HST Type]
C Test: Switch for the speed control pedal.
1. Sit on the operator's seat.
2. Depress the speed control pedal to the desired
direction.
3. Disengage the PTO clutch control switch or lever.
4. Turn the key to "START" position.
5. The engine must not crank.
6. If it cranks, consult your local KUBOTA Dealer for this
service.
C Test: Switch for the PTO clutch control switch or
lever.
1. Sit on the operator's seat.
2. Engage the PTO clutch control switch or lever.
3. Place the speed control pedal in neutral position.
4. Turn the key to "START" position.
5. The engine must not crank.
6. If it cranks, consult your local KUBOTA Dealer for this
service.

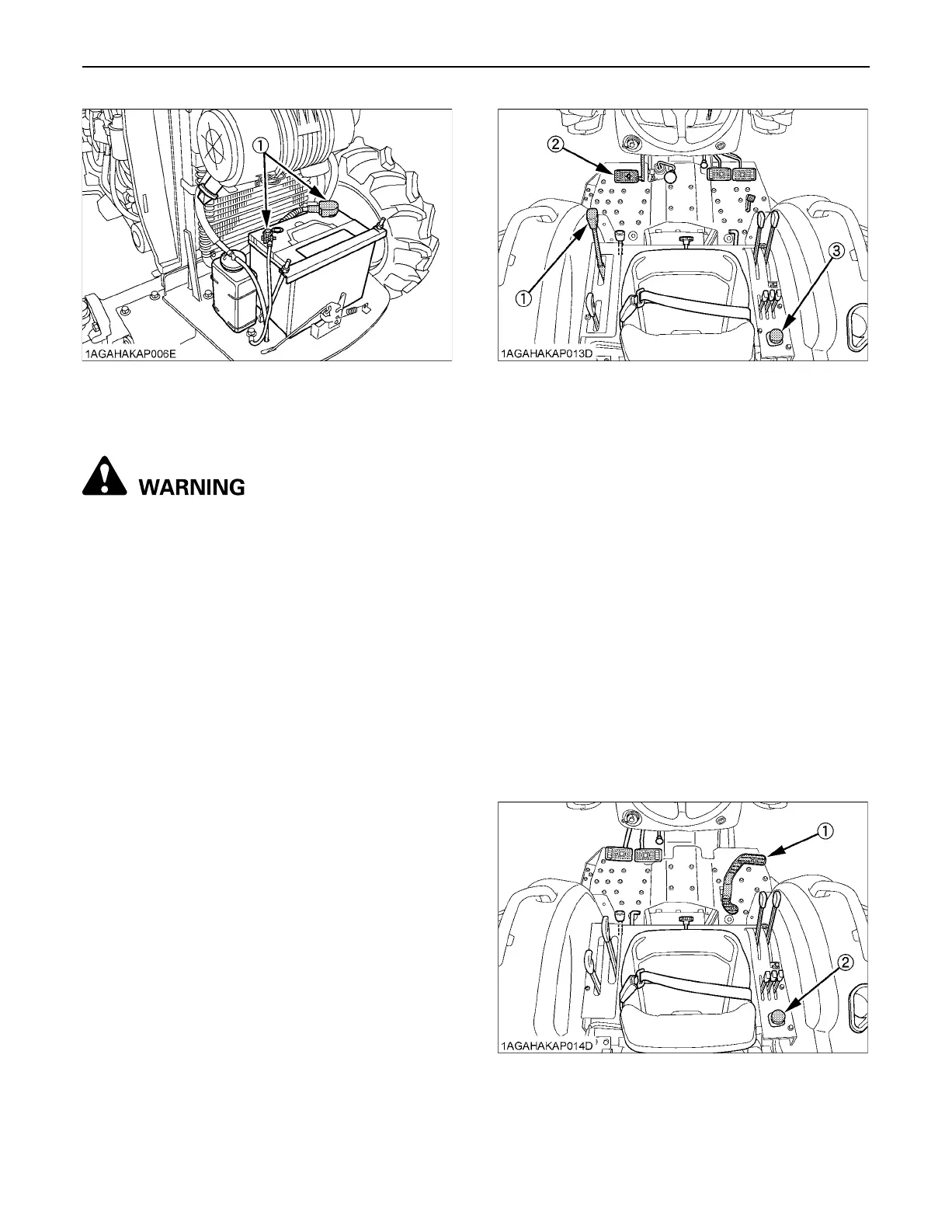

(1) Battery terminals (1) Shuttle shift lever
(2) Clutch pedal
(3) PTO clutch control switch
(1) Speed control pedal
(2) PTO clutch control switch
