OPERATING THE TRACTOR42
PARKING
BParking
[Manual Transmission Type]
To avoid personal injury or death:
BEFORE DISMOUNTING TRACTOR
A ALWAYS SET PARKING BRAKE AND LOWER
ALL IMPLEMENTS TO THE GROUND.
A STOP THE ENGINE AND REMOVE THE KEY.
1. When parking, be sure to set the parking brake.
To set the parking brake;
(1) Interlock the brake pedals.
(2) Depress the brake pedals.
(3) Latch the brake pedals with the parking brake
lever.
A To prevent damage to the parking brake lever, make
sure that brake pedals are fully depressed before
pulling the parking brake lever.
2. Before getting off the tractor, disengage the PTO,
lower all implements to the ground, place all control
levers in their neutral positions, set the parking brake,
stop the engine and remove the key.
3. If it is necessary to park on an incline, be sure to chock
the wheels to prevent accidental rolling of the
machine.
BParking
[HST Type]
To avoid personal injury or death:
BEFORE DISMOUNTING TRACTOR
A ALWAYS SET PARKING BRAKE AND LOWER
ALL IMPLEMENTS TO THE GROUND.
Leaving transmission in gear with the engine
stopped will not prevent tractor with HST
transmission from rolling.
A STOP THE ENGINE AND REMOVE THE KEY.
1. When parking, be sure to set the parking brake.
To set the parking brake;
(1) Interlock the brake pedals.
(2) Depress the brake pedals.
(3) Latch the brake pedals with the parking brake
lever.
A To prevent damage to the parking brake lever, make
sure that brake pedals are fully depressed before
pulling the parking brake lever.
2. Before getting off the tractor, disengage the PTO,
lower all implements to the ground, place all control
levers in their neutral positions, set the parking brake,
stop the engine and remove the key.
3. If it is necessary to park on an incline, be sure to chock
the wheels to prevent accidental rolling of the
machine.

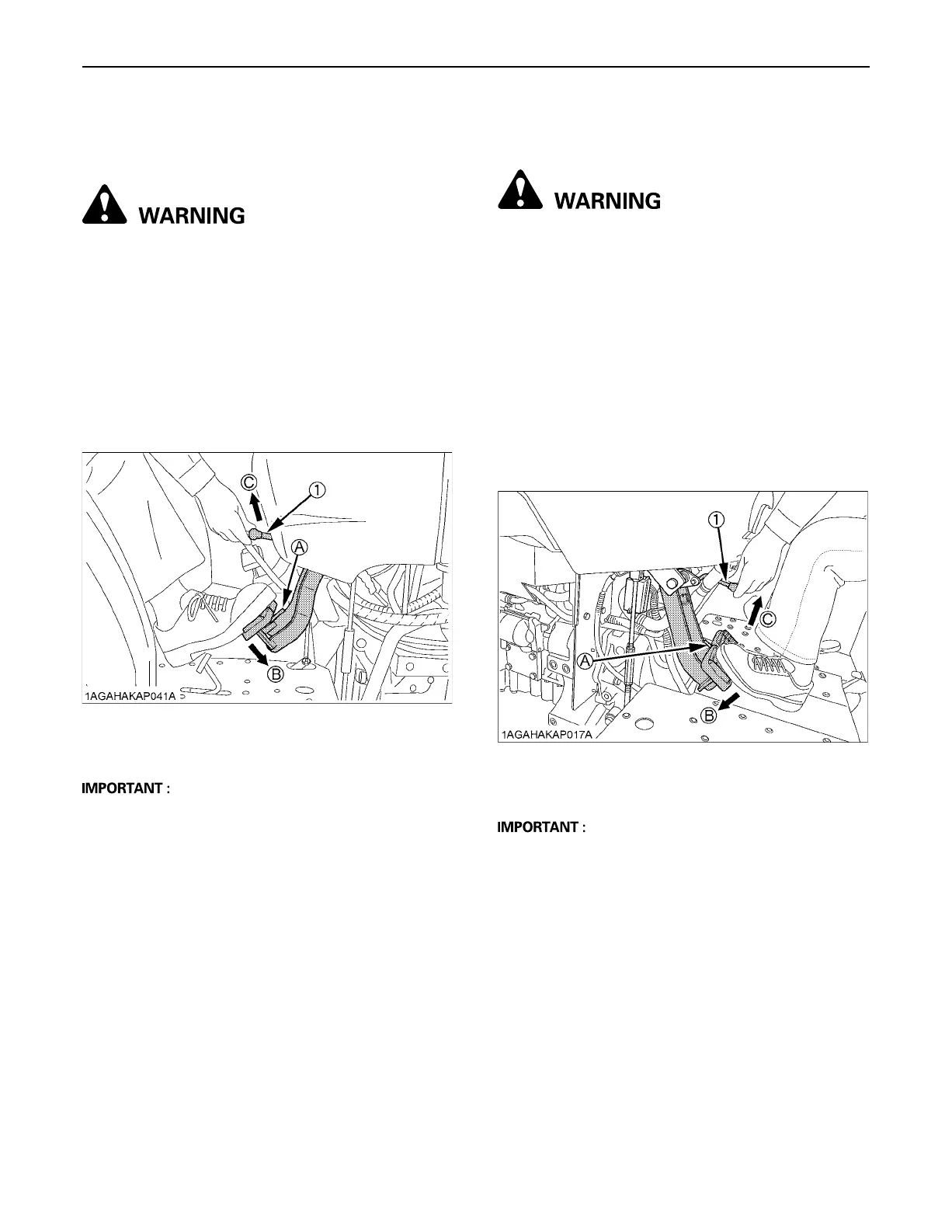

(1) Parking brake lever (A) Interlock the brake pedals
(B) "DEPRESS"
(C) "PULL"
(1) Parking brake lever (A) Interlock the brake pedals
(B) "DEPRESS"
(C) "PULL"
