53HYDRAULIC UNIT
BMixed Control
In draft control, when draft decreases, the implement
automatically lowers to increase draft. However, the
implement sometimes lowers too much. To limit the
degree, the implement can be lowered, set the position
control lever at the lowest working depth desired for the
implement. Lower the draft control lever to the point where
the implement is at the desired depth.
This stops the implement from going too deep and
causing loss of traction and ground speed.
BFloat Control
[with Draft control]
Place both the draft control lever and the position control
lever in the float position to make the lower links move
freely along with the ground conditions.
[with Position control]
Place the position control lever in the float position to
make the lower links move freely along with the ground
conditions.
B3-point Hitch Lowering Speed
To avoid personal injury or death:
A Fast lowering speed may cause damage or
injury. Lowering speed of implement should be
adjusted to 2 or more seconds.
The lowering speed of the 3-point hitch can be controlled
by adjusting the 3-point hitch lowering speed knob.

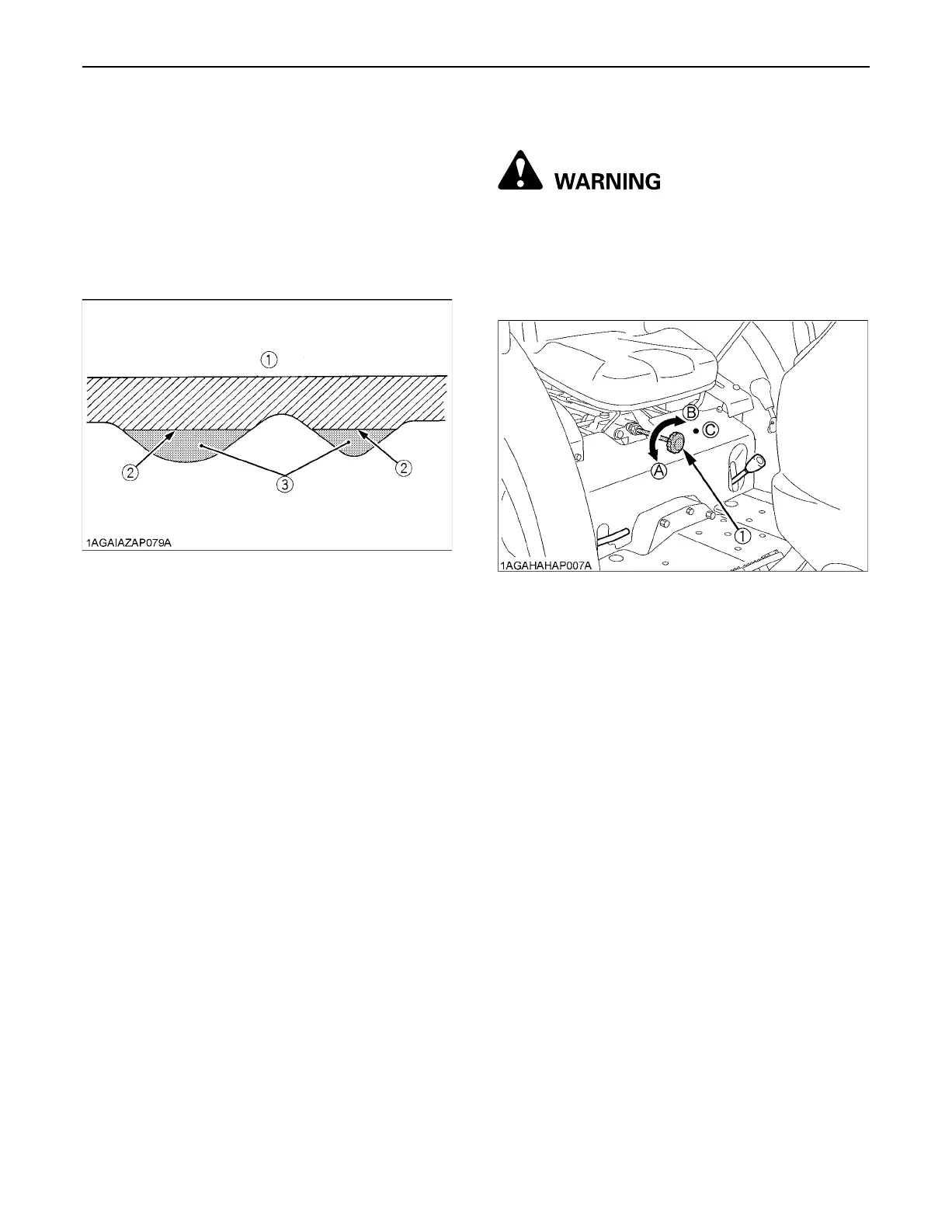

(1) Ground surface
(2) Implement penetrate limit
(3) Light soil
(1) 3-point hitch lowering speed knob (A) "FAST"
(B) "SLOW"
(C) "LOCK"
