Kubota WSM L6060 User Manual

ENGINE
L3560, L4060, L4760, L5060, L5460, L6060, WSM
1-M4
4. COOLING SYSTEM
[1] THERMOSTAT
This thermostat uses a wax-pellet type. When
temperature goes up, wax (6) in metal container (pellet
(5)) changes to a liquid from a solid.
The volume of the wax (6) starts to expand in this
process. As spindle (4) is fixed, pellet (5) goes down and
valve (2) goes down.
There is a jiggle valve (1) on the top depending on
the specification.
When you put coolant and thermostat is closed,
coolant can not go in easily because air at the engine
side can not go out.
The jiggle valve helps to remove air from this hole,
and then coolant can go in easily.
9Y1210824ENM0051US0

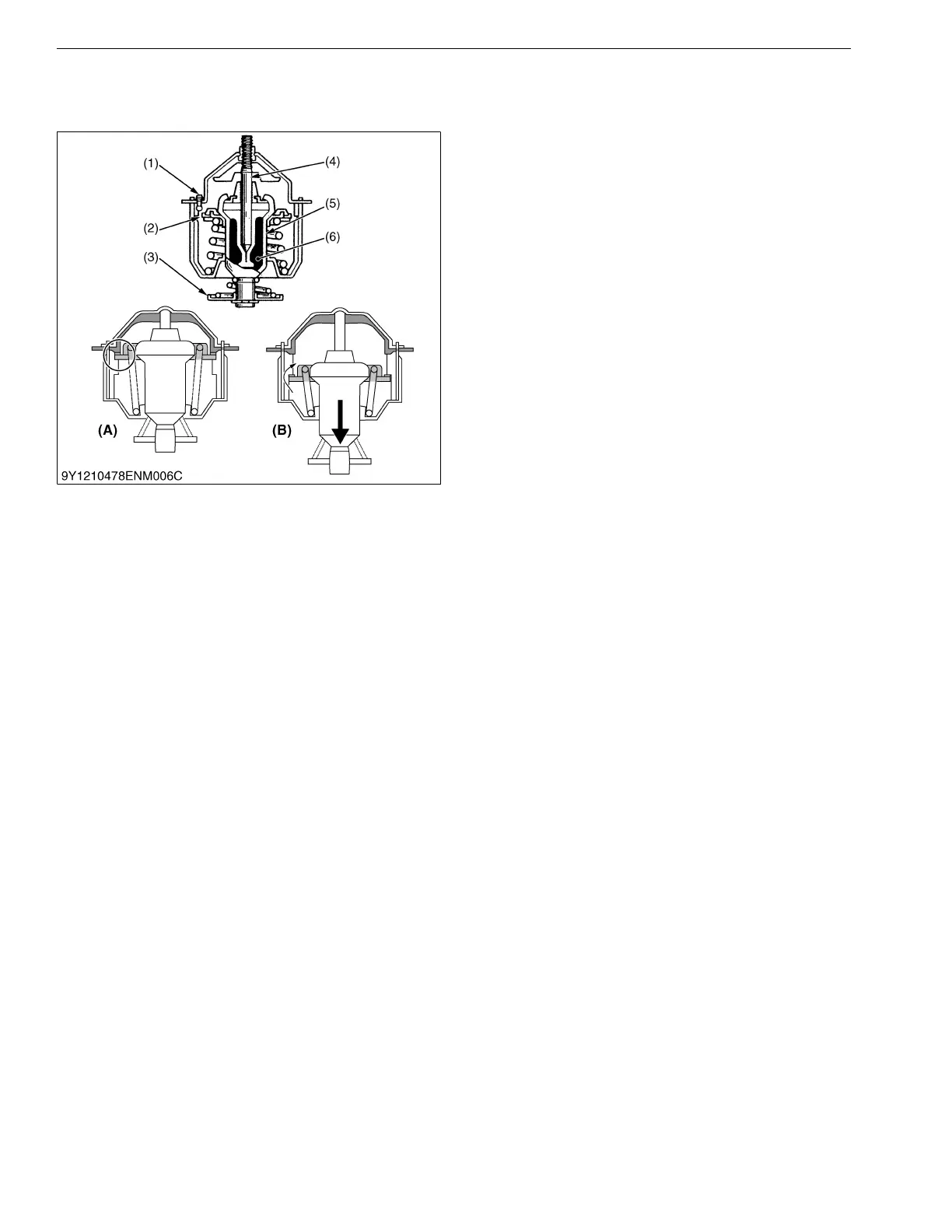

(1) Jiggle Valve
(2) Valve
(3) Bypass Valve
(4) Spindle
(5) Pellet
(6) Wax
(A) When The Valve is Closed
(B) When The Valve is Opened
KiSC issued 03, 2016 A

Kubota WSM L6060 Specifications

General

Engine Model	Kubota V2403-CR-TE4
Horsepower	62 HP
3-Point Hitch	Category I & II
Type	Compact Utility Tractor
Fuel Type	Diesel
Drive	4WD
Engine Type	4-cylinder, liquid-cooled diesel
Transmission	Hydrostatic (HST)
PTO Power	54 hp
Wheelbase	74.6 inches
Displacement	148.5 cu in (2.4 L)
Tire Size (Front)	12.4-16
