Checking Head Light / Turn Signal / Hazard Light etc.
1. Inspect the light for broken bulbs and lenses.
2. Replace if broken.
9Y1210824GEG0024US0
Checking Seat Belt and ROPS
1. Always check condition of seat belt and ROPS attaching
hardware before operating tractor.
2. Replace if damaged.
9Y1210824GEG0025US0
Checking Movable Parts
1. If any of the movable parts, such as levers and pedals, is not
smoothly moved because of rust or anything sticky, do not
attempt to force it into motion.
In the above case, remove the rust or the sticky thing, and apply
oil or grease on the relevant spot.
Otherwise, the machine may get damaged.
9Y1210824GEG0026US0
[2] CHECK POINTS OF INITIAL 50 HOURS
Checking Clutch Pedal Free Travel (GST / Manual
Transmission)
1. See page G-20.
9Y1210824GEG0027US0
Changing Engine Oil
• Be sure to stop the engine before changing the oil.
• Allow engine to cool down sufficiently, oil can be hot and
can burn.
1. To drain the used oil, remove the drain plug at the bottom of the
engine and drain the oil completely into the oil pan.
All the used oil can be drained out easily when the engine is still
warm.
2. After draining reinstall the drain plug.
3. Fill with the new oil up to the upper notch on the dipstick. (Refer
to "4. LUBRICANTS, FUEL AND COOLANT" on page G-9.)
• Use DPF-compatible oil (CJ-4) for the engine.
9Y1210824GEG0028US0
Engine oil capacity
(with filter)
L3560
6.7 L
7.1 U.S.qts
5.9 Imp.qts
L4060
L4760
8.2 L
8.7 U.S.qts
7.2 Imp.qts
L5060
L5460
L6060
9.4 L
9.9 U.S.qts
8.3 Imp.qts

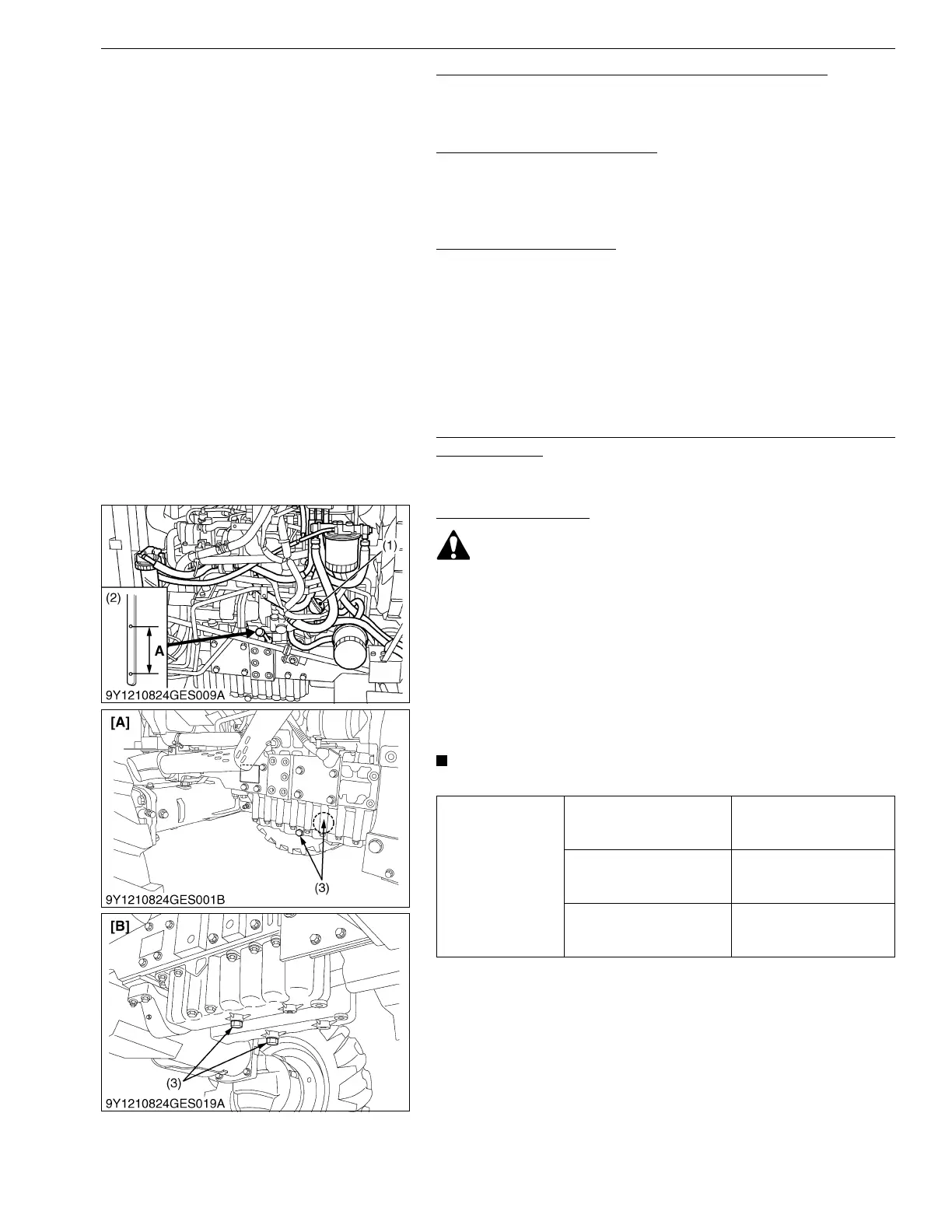

(1) Oil Inlet
(2) Dipstick
(3) Drain Plug
[A] L3560
[B] L4060, L4760, L5060, L5460,
L6060
A: Oil level is acceptable within this
range.
To Next Page
