Kubota WSM L6060 User Manual

BRAKES
L3560, L4060, L4760, L5060, L5460, L6060, WSM
5-S4
4. CHECKING AND ADJUSTING

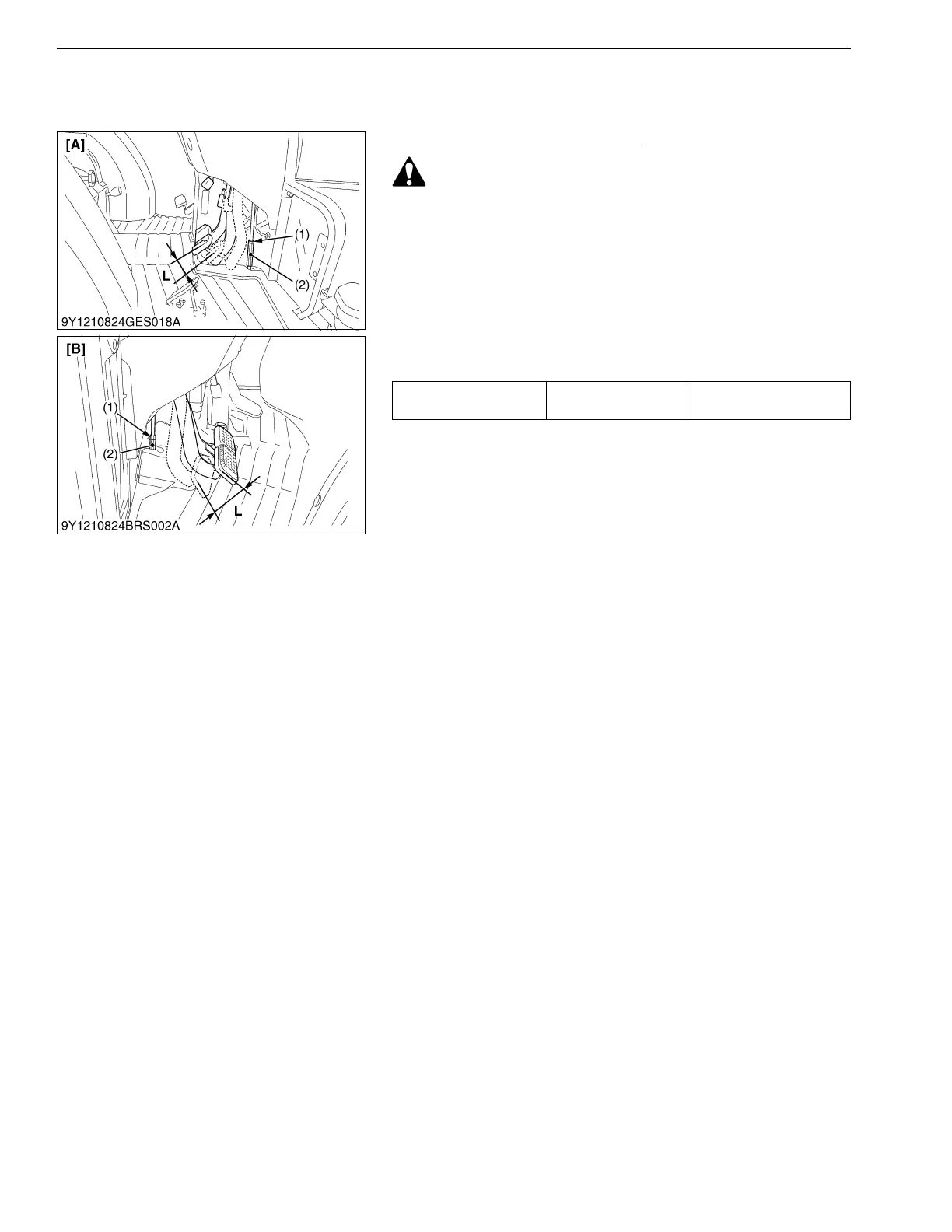

[1] BRAKE PEDAL
Checking Brake Pedal Free Travel
CAUTION
• Stop the engine and chock the wheels before checking
brake pedal.
1. Release the parking brake.
2. Slightly depress the brake pedal and measure free travel "L" at
top of pedal stroke.
3. If the measurement is not within the factory specifications,
loosen the lock nut (1) and turn the turnbuckle (2) to adjust the
rod length within acceptable limits.
4. Retighten the lock nut (1) securely.
Keep the free travel in the right and left brake pedals equal.
9Y1210824GEG0022US0
Brake pedal free travel
"L"
Factory specification
15 to 20 mm
0.59 to 0.78 in.
(1) Lock Nut
(2) Turnbuckle
[A] GST / Manual Transmission
[B] HST
L: Free Travel
KiSC issued 03, 2016 A

Kubota WSM L6060 Specifications

General

Engine Model	Kubota V2403-CR-TE4
Horsepower	62 HP
3-Point Hitch	Category I & II
Type	Compact Utility Tractor
Fuel Type	Diesel
Drive	4WD
Engine Type	4-cylinder, liquid-cooled diesel
Transmission	Hydrostatic (HST)
PTO Power	54 hp
Wheelbase	74.6 inches
Displacement	148.5 cu in (2.4 L)
Tire Size (Front)	12.4-16
