ELECTRICAL SYSTEM
L3560, L4060, L4760, L5060, L5460, L6060, WSM
9-M28
[3] BASIC CONTROL SYSTEM

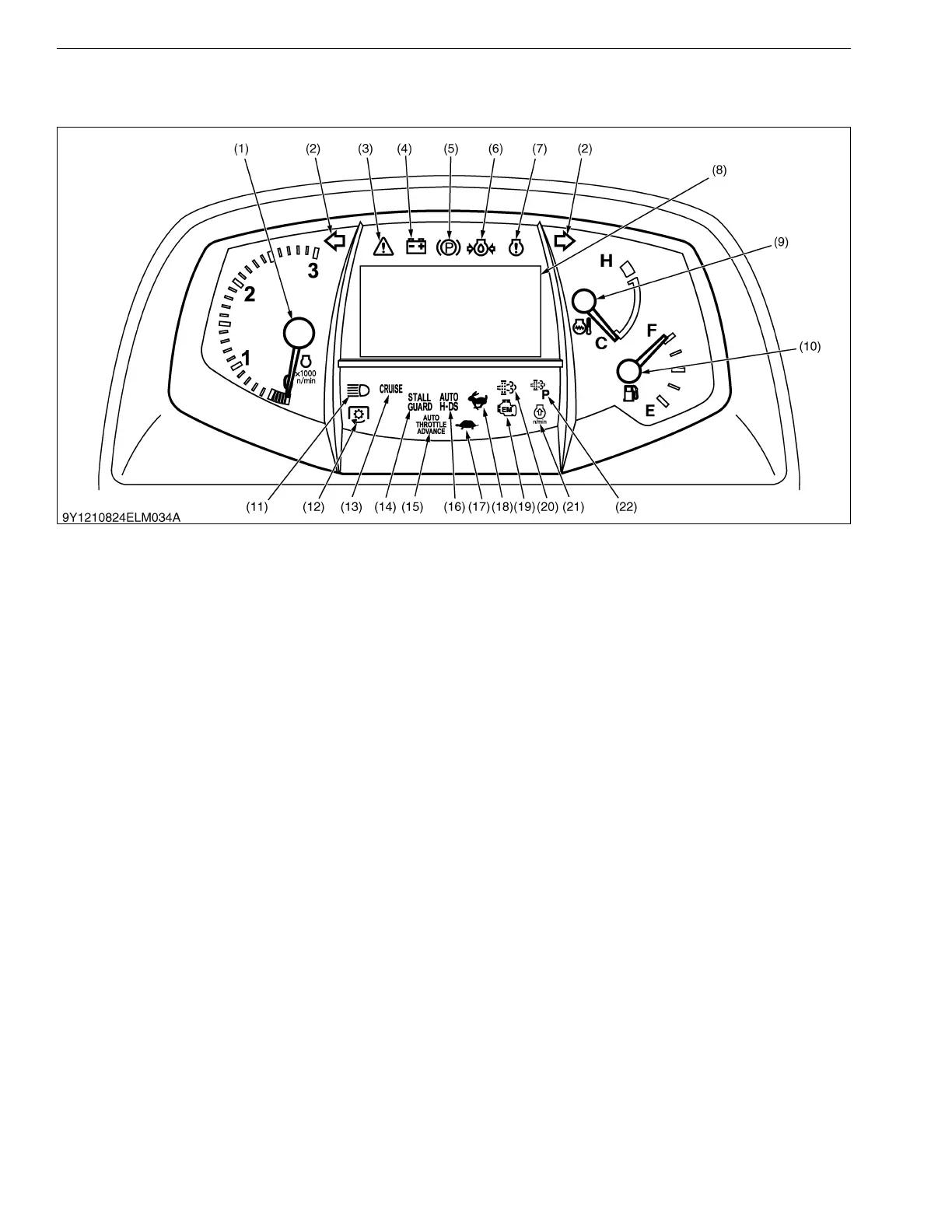

(1) Indication Items of Meter Panel
9Y1210824ELM0047US0
(1) Tachometer
(2) Turn signal / hazard indicator
(3) Master system warning
indicator
(4) Electrical charge warning
indicator
(5) Parking brake warning
indicator
(6) Engine oil pressure warning
indicator
(7) Engine warning indicator
(8) IntelliPanelâ„¢ display
(9) Coolant temperature gauge
(10) Fuel gauge
(11) High beam indicator
(12) PTO indicator
(13) Cruise control indicator [HST]
(14) Stall guard indicator [HST]
(15) ATA indicator [HST]
(16) Auto H-DS indicator [HST]
(17) H-DS Low speed range
indicator [HST]
(18) H-DS High speed range
indicator [HST]
(19) Emission indicator
(20) Regeneration indicator
(21) Engine RPM increase
indicator
(22) Parked regeneration indicator
