HYDRAULIC SYSTEM
L3560, L4060, L4760, L5060, L5460, L6060, WSM
8-M6
3. HYDRAULIC PUMP
The gear type hydraulic pump is adopted for these
tractor. This pump is tandem type consists of two pair of
gears, side plates, bushings and other components as

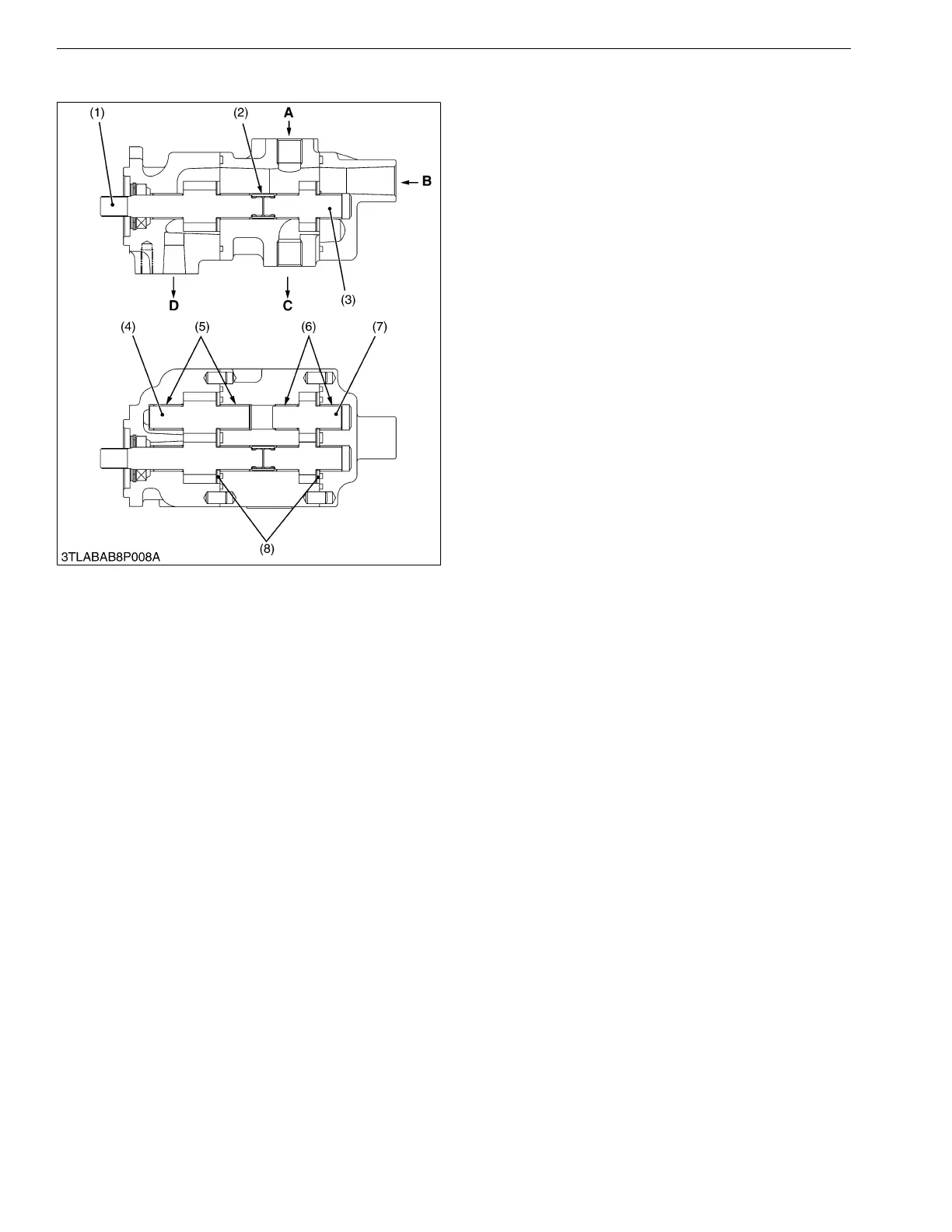

shown in the figure.
The hydraulic pump pressure-fed the oil drawn from
the transmission case through oil filter to power steering
circuit and main hydraulic circuit.
9Y1210824HYM0006US0
(1) Drive Gear 1
(2) Coupling
(3) Drive Gear 2
(4) Driven Gear 1
(5) Bushing
(6) Bushing
(7) Driven Gear 2
(8) Side Plate
A: From Power Steering
Controller
B: From Transmission Case
C: To Power Steering
Controller
D: To Main Hydraulic Circuit
KiSC issued 03, 2016 A

Kubota WSM L6060 Specifications

General

Engine Model	Kubota V2403-CR-TE4
Horsepower	62 HP
3-Point Hitch	Category I & II
Type	Compact Utility Tractor
Fuel Type	Diesel
Drive	4WD
Engine Type	4-cylinder, liquid-cooled diesel
Transmission	Hydrostatic (HST)
PTO Power	54 hp
Wheelbase	74.6 inches
Displacement	148.5 cu in (2.4 L)
Tire Size (Front)	12.4-16
