CLUTCH
L3560, L4060, L4760, L5060, L5460, L6060, WSM
2-S26

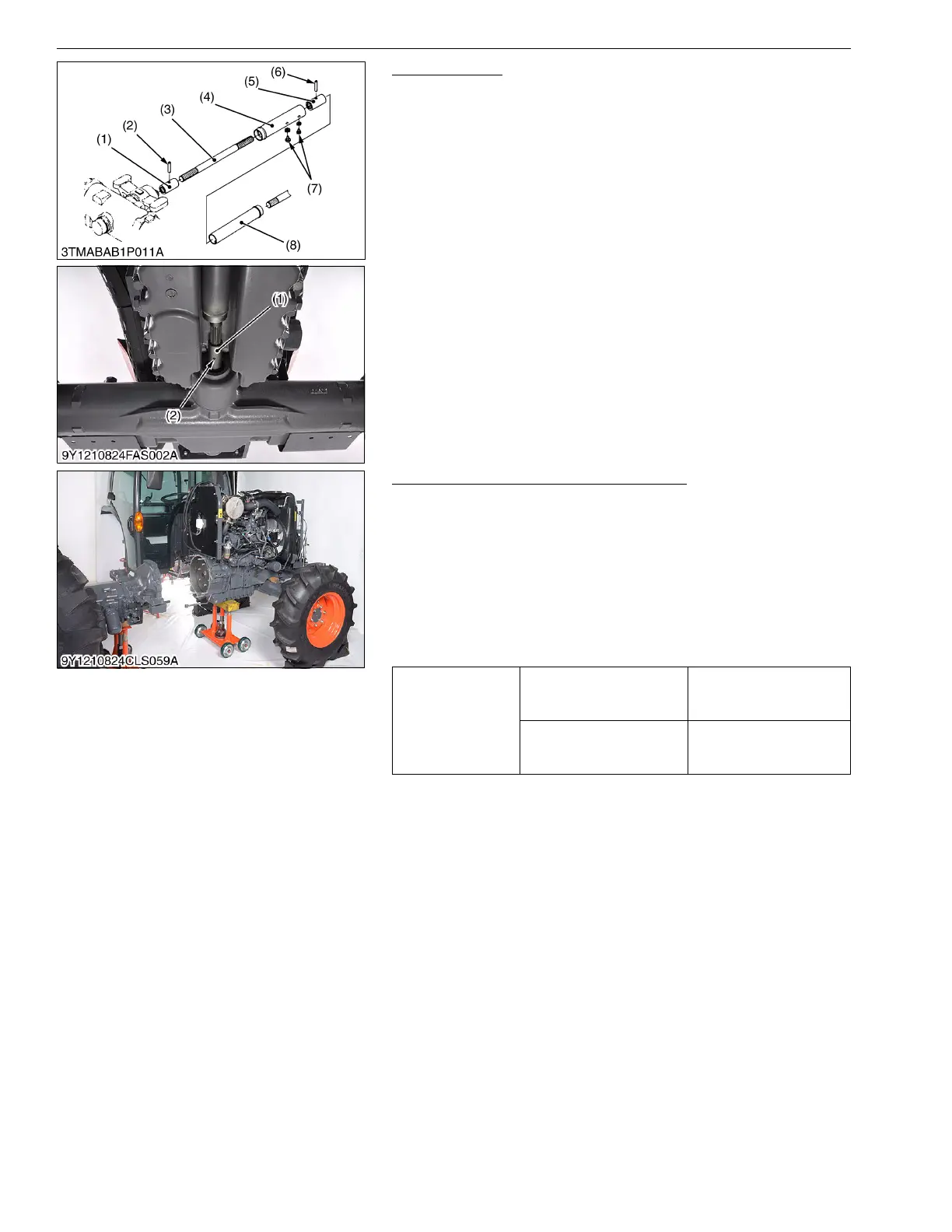

Propeller Shaft
1. Slide the propeller shaft cover (4) and (8) after removing the
screws (7).
2. Tap out the spring pins (2), (6) and slide the couplings (1), (5)
and then remove the propeller shaft with covers (4), (8).
(When reassembling)
• Apply grease to the splines of propeller shaft (3).
9Y1210824FAS0009US0
Separating Engine from Clutch Housing
1. Place the disassembling stands under the engine and clutch
housing.
2. Remove the engine and clutch housing mounting screws and
nuts.
3. Separate the engine from clutch housing.
(When reassembling)
• Apply grease to the spline of clutch shaft.
• Apply liquid gasket (Three Bond 1211 or equivalent) to joint face
of the flywheel housing and clutch housing.
9Y1210824CLS0025US0
(1) Coupling
(2) Spring Pin
(3) Propeller Shaft
(4) Propeller Shaft Cover
(5) Coupling
(6) Spring Pin
(7) Screws
(8) Propeller Shaft Cover
Tightening torque
Engine and clutch housing
mounting screw
78 to 90 N·m
7.9 to 9.2 kgf·m
58 to 66 lbf·ft
Engine and clutch housing
mounting nut
103 to 117 N·m
10.5 to 12.0 kgf·m
76.0 to 86.7 lbf·ft
