TRANSMISSION
L3560, L4060, L4760, L5060, L5460, L6060, WSM
3-S75

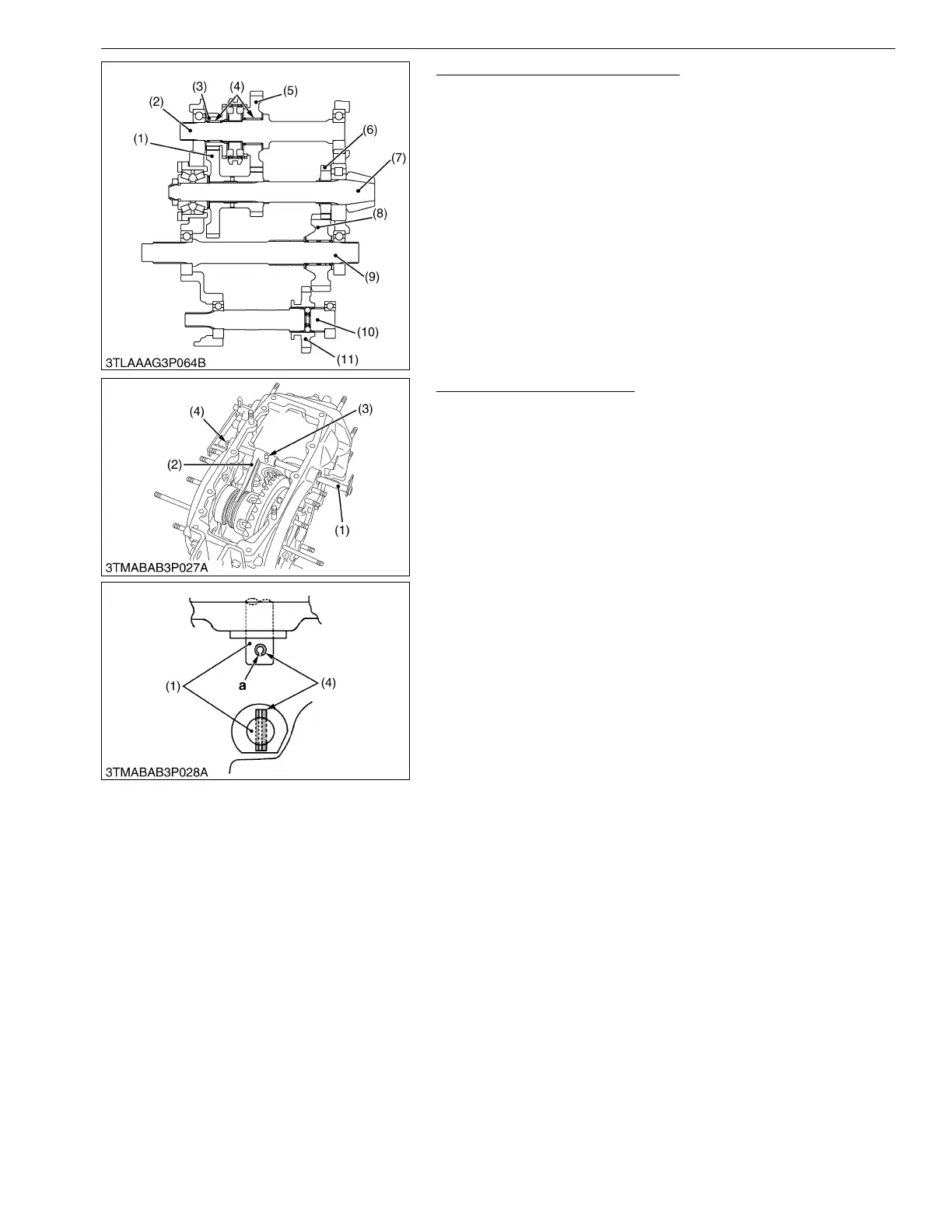

Disassembling Shaft Assemblies
1. Disassembling the each shaft referring to the figure.
9Y1210824TRS0041US0
Differential Lock Shift Fork
1. Tap out the left side spring pin (4).
2. Remove the cotter pin and clevis pin (3).
3. Draw out the differential lock fork shaft (1) and remove
differential lock shift fork (2).
(When reassembling)
• Apply grease to the left and right oil seals on the transmission
case.
• Insert the clevis pin (3) from the top and install the washer and
cotter pin.
• Tap in the spring pin (4) so that its split portion "a" may face
outward as shown in the figure.
9Y1210824TRS0042US0
(1) 20T-49T Gear
(2) Range Gear Shaft
(3) 17T Gear
(4) Needle Bearing
(5) 34T Gear
(6) 18T Gear (L3560)
19T Gear (L4060)
(7) Spiral Bevel Pinion Shaft
(8) 29T Gear (L3560)
31T Gear (L4060)
(9) PTO Drive Shaft
(10) Front Wheel Drive Shaft
(11) 24T Shifter Gear
(1) Differential Lock Fork Shaft
(2) DIfferential Lock Shift Fork
(3) Clevis Pin
(4) Spring Pin
a: Split Portion
