TRANSMISSION
L3560, L4060, L4760, L5060, L5460, L6060, WSM
3-S122

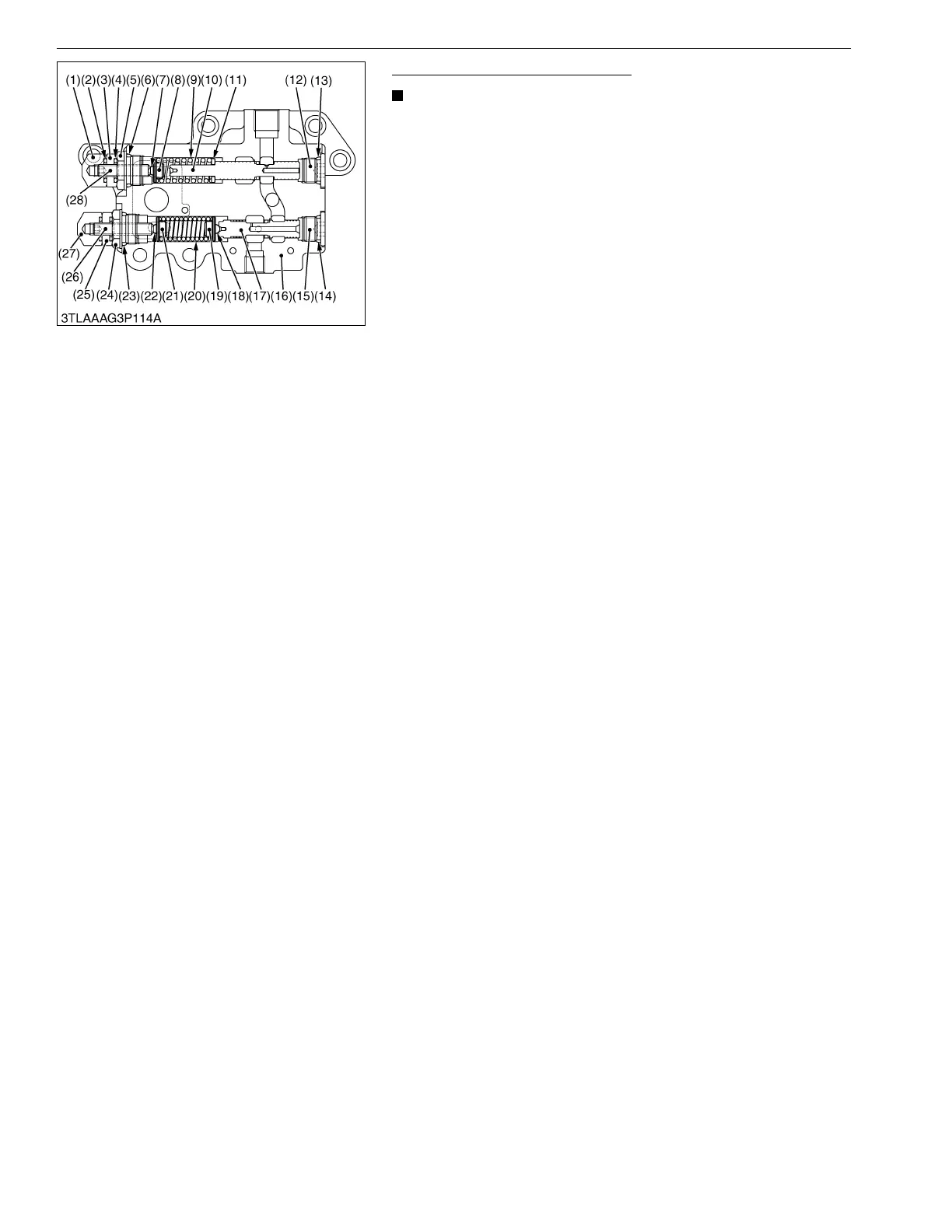

Disassembling Regulating Valve
NOTE
• The regulating valve has been precisely machined and
assembled. It is advisable not to disassemble it as long as
there is no necessary.
1. Remove the cap nuts (1), (27) and lock nuts (3), (25).
2. Remove the plugs (5), (24) with adjustor (28), (26).
3. Remove the plugs (12), (15).
4. Remove the spring retainers (8), (21) with balls (7), (22).
5. Remove the springs (9), (20).
6. Remove the collar (11) and retainer (8) with ball (7).
7. Remove the spools (10), (17).
(When reassembling)
• Be careful not to damage the O-rings.
9Y1210824TRS0126US0
(1) Cap Nut
(2) O-ring
(3) Lock Nut
(4) O-ring
(5) Plug
(6) O-ring
(7) Ball
(8) Retainer
(9) Spring
(10) Spool
(11) Collar
(12) Plug
(13) O-ring
(14) O-ring
(15) Plug
(16) Valve Body
(17) Spool
(18) Ball
(19) Retainer
(20) Spring
(21) Retainer
(22) Ball
(23) O-ring
(24) Plug
(25) Lock Nut
(26) Adjustor
(27) Cap Nut
(28) Adjustor
KiSC issued 03, 2016 A
