BRAKES
L3560, L4060, L4760, L5060, L5460, L6060, WSM
5-S7

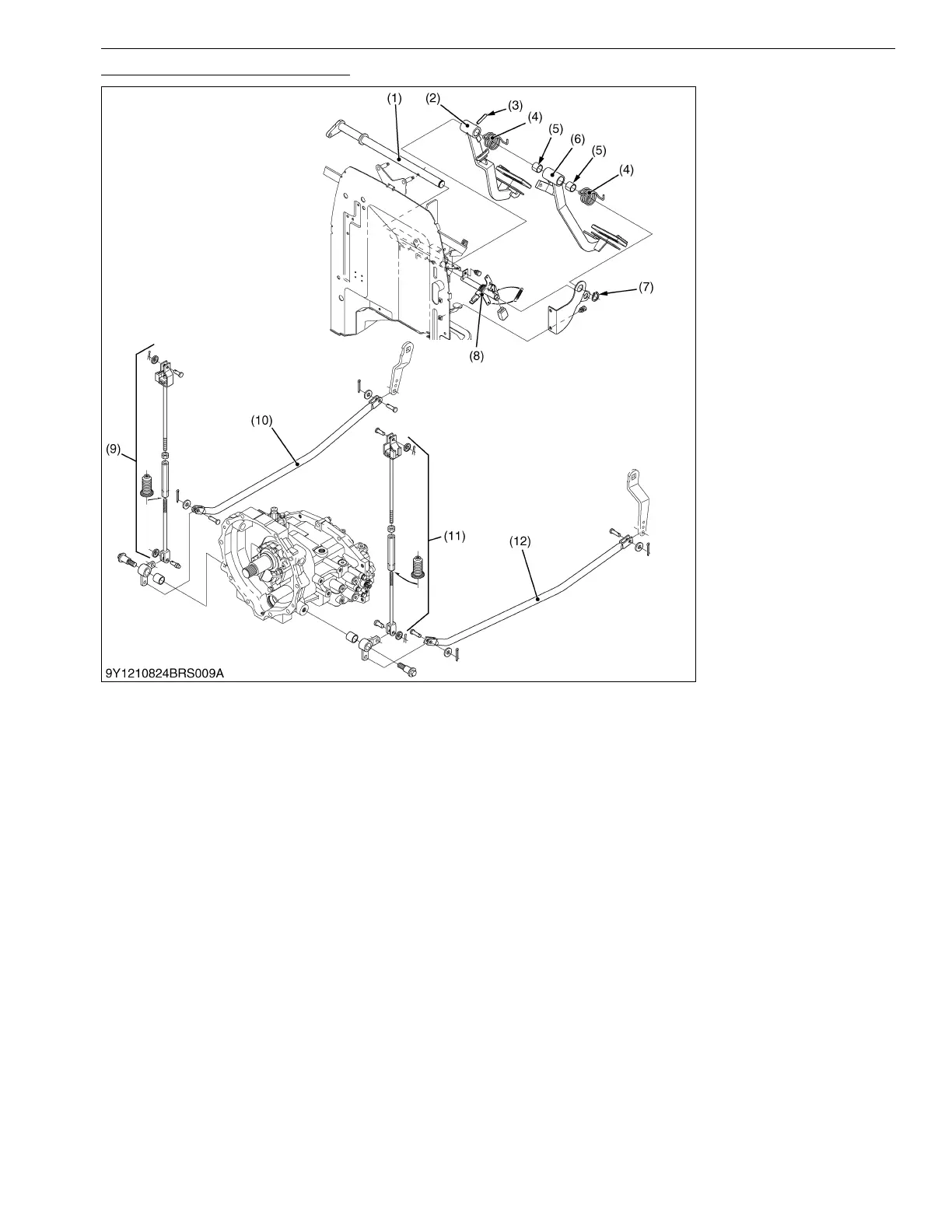

Brake Pedal and Brake Rod (HST)
1. Remove the brake rods (10), (12).
2. Remove the brake pedal rods (9), (11).
3. Disconnect the clutch pedal rod.
4. Remove the external snap ring (7).
5. Tap out the spring pin (3) and pull out the brake pedal shaft (11).
6. Remove the brake pedals (2), (6) and springs (4).
7. Remove the parking brake lever (8).
9Y1210824BRS0008US0
(1) Brake Pedal Shaft
(2) Brake Pedal RH
(3) Spring Pin
(4) Spring
(5) Bush
(6) Brake Pedal LH
(7) External Snap Ring
(8) Parking Brake Lever
(9) Brake Pedal Rod RH
(10) Brake Rod RH
(11) Brake Pedal Rod LH
(12) Brake Rod LH
KiSC issued 03, 2016 A

Kubota WSM L6060 Specifications

General

Engine Model	Kubota V2403-CR-TE4
Horsepower	62 HP
3-Point Hitch	Category I & II
Type	Compact Utility Tractor
Fuel Type	Diesel
Drive	4WD
Engine Type	4-cylinder, liquid-cooled diesel
Transmission	Hydrostatic (HST)
PTO Power	54 hp
Wheelbase	74.6 inches
Displacement	148.5 cu in (2.4 L)
Tire Size (Front)	12.4-16
