Kubota WSM L6060 User Manual

BRAKES
L3560, L4060, L4760, L5060, L5460, L6060, WSM
5-S9

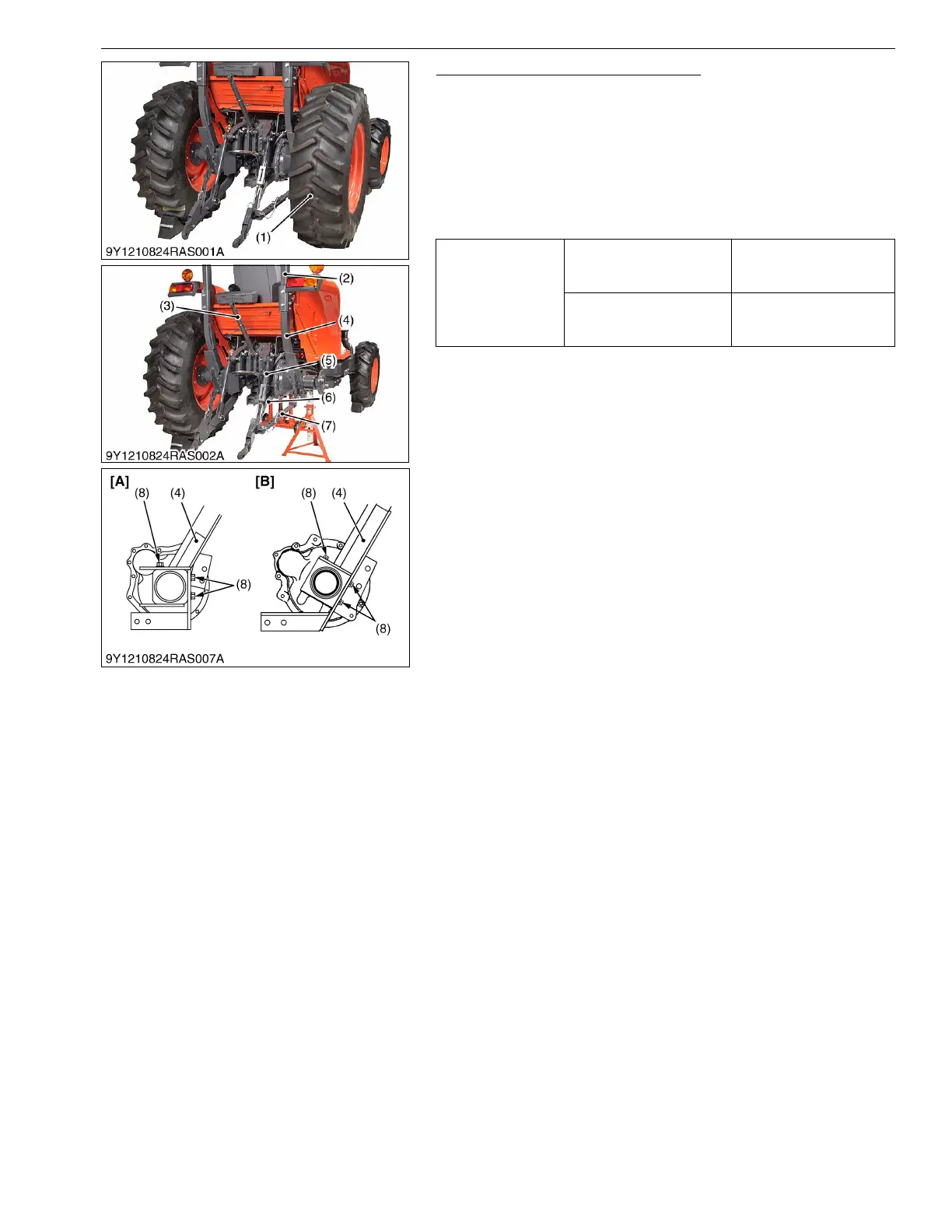

Rear Wheel and ROPS (ROPS Type)
1. Place the disassembling stand under the transmission case.
2. Remove the rear wheel mounting screws and nuts.
3. Remove the rear wheels (1).
4. Remove the top link (3) and lift rod (5).
5. Disconnect the stabilizer (7) and remove the lower link (6).
6. Remove the ROPS lower frame mounting screws (8).
7. Dismount the ROPS assembly (2), (4).
(When reassembling)
9Y1210824RAS0004US0
Tightening torque
Rear wheel mounting
screw and nut
197 to 225 N·m
20.0 to 23.0 kgf·m
145 to 166 lbf·ft
ROPS lower frame
mounting screw
167 to 196 N·m
17.0 to 20.0 kgf·m
123 to 144 lbf·ft
(1) Rear Wheel
(2) ROPS Upper Frame
(3) Top Link
(4) ROPS Lower Frame
(5) Lift Rod
(6) Lower Link
(7) Stabilizer
(8) Screw (M14 × 30)
[A] L3560
[B] L4060, L4760, L5060, L5460,
L6060
KiSC issued 03, 2016 A

Kubota WSM L6060 Specifications

General

Engine Model	Kubota V2403-CR-TE4
Horsepower	62 HP
3-Point Hitch	Category I & II
Type	Compact Utility Tractor
Fuel Type	Diesel
Drive	4WD
Engine Type	4-cylinder, liquid-cooled diesel
Transmission	Hydrostatic (HST)
PTO Power	54 hp
Wheelbase	74.6 inches
Displacement	148.5 cu in (2.4 L)
Tire Size (Front)	12.4-16
