HYDRAULIC SYSTEM
L3560, L4060, L4760, L5060, L5460, L6060, WSM
8-S26
Front Loader Control Valve

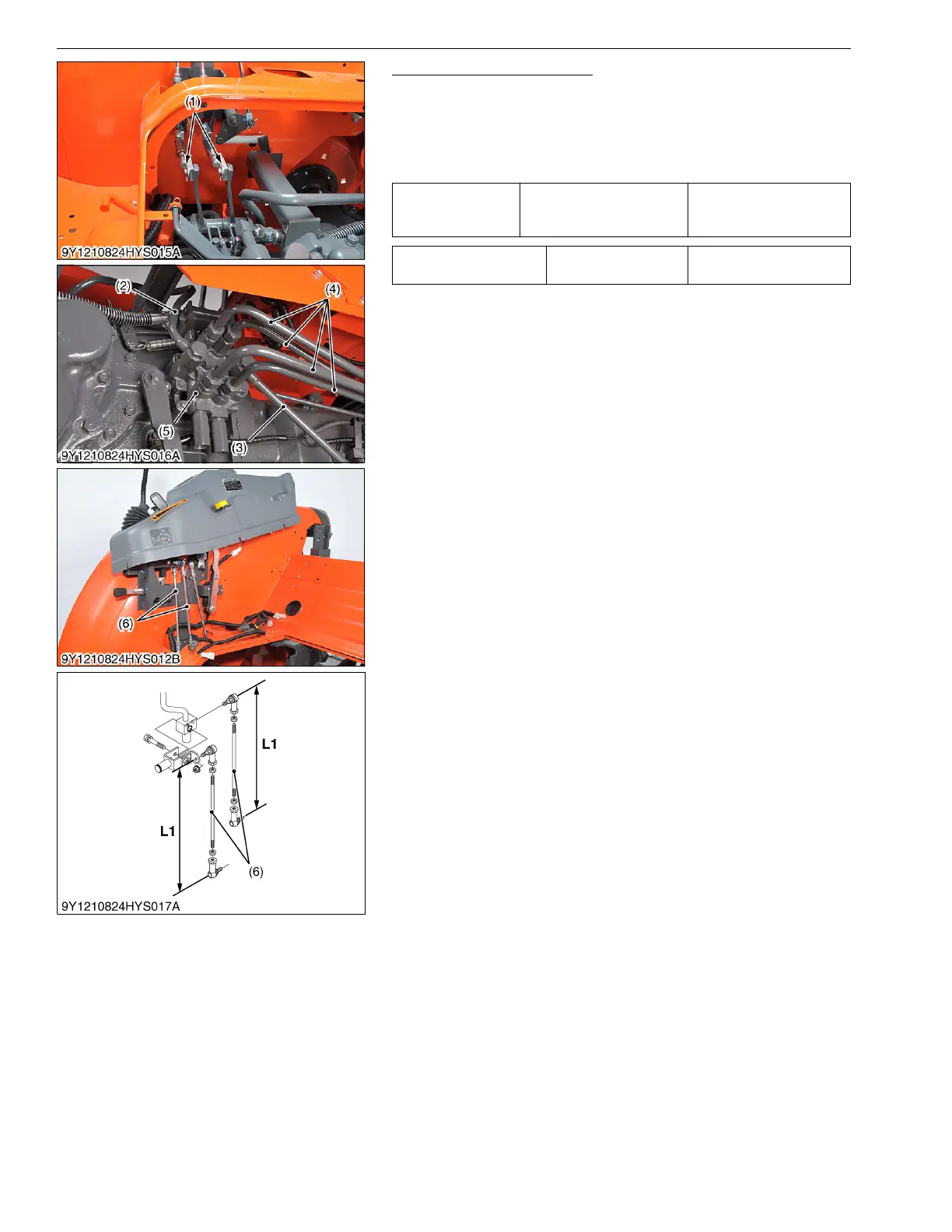

1. Remove the ß pin (1).
2. Remove the delivery pipe 2 (2) and delivery pipe 1 (3).
3. Remove the front loader pipes (4).
4. Remove the front loader control valve assembly (5).
(When reassembling)
9Y1210824HYS0032US0
Tightening torque
Joint bolt for delivery pipe 1
and 2
118 to 137 N·m
12.0 to 14.0 kgf·m
46.8 to 101 lbf·ft
Length "L1" Reference value
283 mm
11.1 in.
(1) ß Pin
(2) Delivery Pipe 2
(3) Delivery Pipe 1
(4) Front Loader Pipe
(5) Front Loader Control Valve
Assembly
(6) Front Loader Lever Rod
KiSC issued 03, 2016 A
