ELECTRICAL SYSTEM
L3560, L4060, L4760, L5060, L5460, L6060, WSM
9-M22
Oil Pressure Switch: For GST
This switch (1) is designed to detect that the gear
shift completion of GST and pressurizing of GST clutch
pressure, and is mounted at the side of GST valve. It is
turned on when the pilot pressure has become higher
than 0.49 MPa (5 kgf/cm
2
, 71 psi) and is turned off when
the pressure has become lower than 0.34 MPa
(3.5 kgf/cm
2
, 50 psi).
9Y1210824ELM0025US0
Cruise Release Switch : For HST
This switch (1) is mounted close to the fulcrum of the
brake pedal. This switch (1) is turned on when the brake
pedal is depressed.
9Y1210824ELM0026US0
Cruise Control Switch : For HST
The cruise control switch (1) is located right of the
electronic instrument pane.
With this device, you can set or cancel the cruise
speed function and can increase or decrease the cruise
control speed.
9Y1210824ELM0027US0
Throttle-Up Switch : For HST
The throttle-up switch (1) is located on the front
loader control valve lever (2).
When holding down the throttle-up switch (1), the
engine revolution increases to a preset revolution.
9Y1210824ELM0028US0

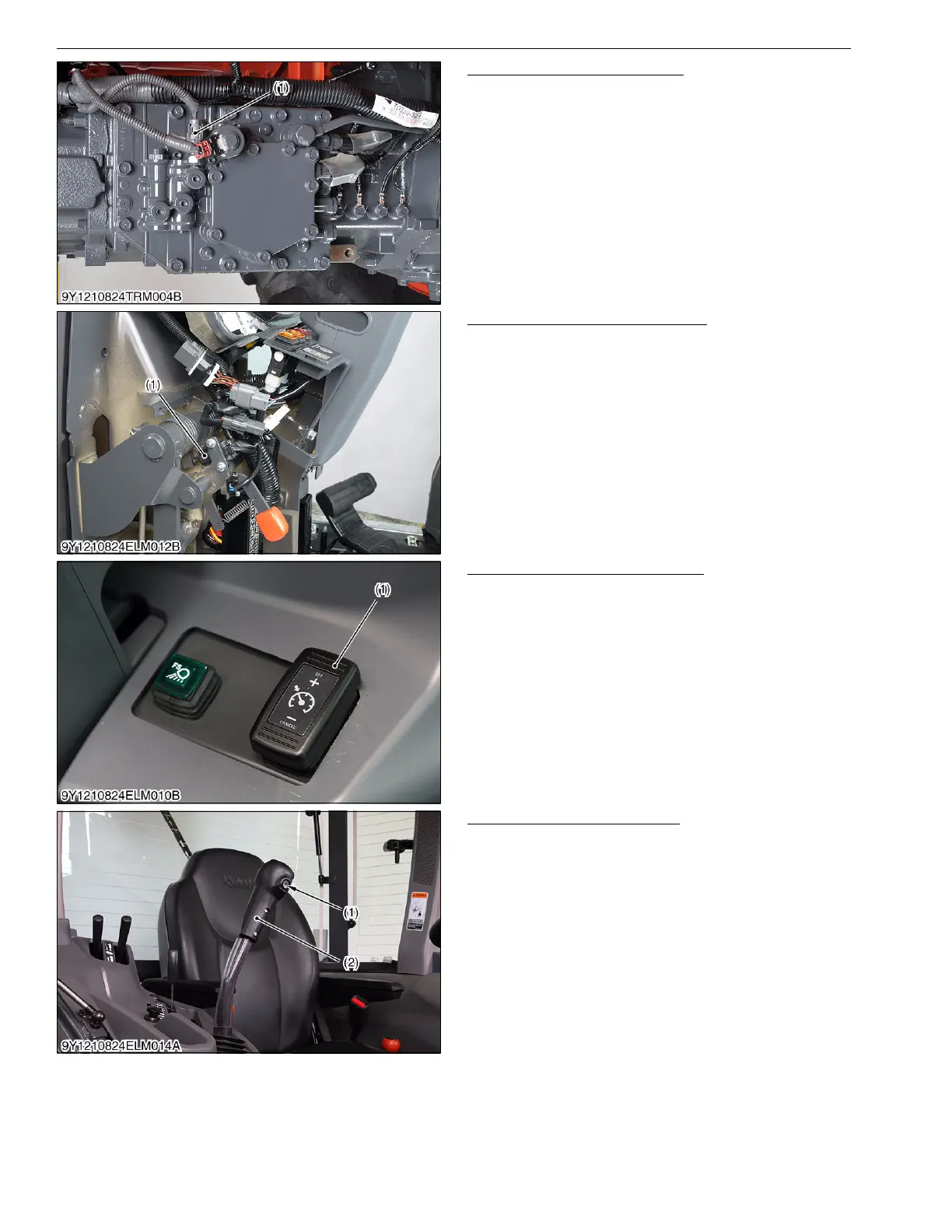

(1) Oil Pressure Switch
(1) Cruise Release Switch
(1) Cruise Control Switch
(1) Throttle-Up Switch (2) Front Loader Control Valve
Lever
