ELECTRICAL SYSTEM
L3560, L4060, L4760, L5060, L5460, L6060, WSM
9-M24

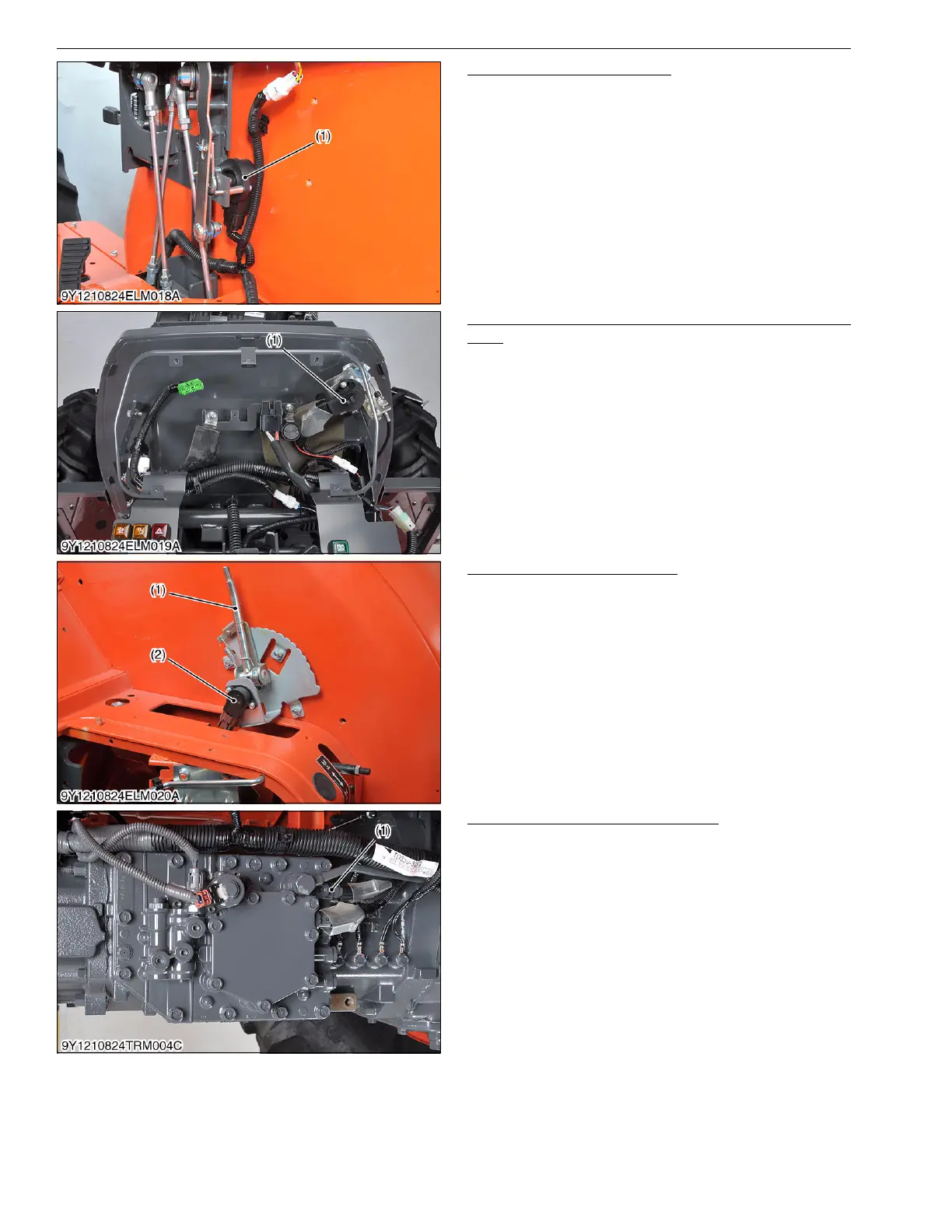

Hand Throttle Lever Sensor
The hand throttle lever sensor detects amount of
hand throttle lever operation.
9Y1210824ELM0033US0
Foot Throttle Sensor : For Manual Transmission and
GST
The foot throttle sensor detects the amount of
depressing of foot throttle pedal.
9Y1210824ELM0034US0
GST Lever Sensor : For GST
This sensor (2) is designed to detect the position at
which the GST lever changes speed, and is mounted at
the bottom of the GST lever (1). It has the variable
resistor of revolution angle type, the maximum
resistance value is 2 kΩ, and the electrically effective
angle is 140 degrees. It also outputs the position of the
lever from N to 12th speed stage in the range of
approximately 0.4 to 4.5 V, and then sends a signal to
the electronic instrument panel and ECU.
9Y1210824ELM0035US0
Oil Temperature Sensor : For GST
This sensor (1) is designed to detect the temperature
of transmission oil and is mounted at the side of GST
valve. It is provided in order to compensate the operating
time and electric current of the proportional reducing
valve within GST valve, according to the transmission oil
temperature.
The sensor employs the thermistor in which a rise in
oil temperature causes smaller resistance and a fall in
the temperature causes larger one.
9Y1210824ELM0036US0
(1) Hand Throttle Lever Sensor
(1) Foot Throttle Sensor
(1) GST Lever (2) GST Lever Sensor
(1) Oil Temperature Sensor
To Next Page
