ELECTRICAL SYSTEM
L3560, L4060, L4760, L5060, L5460, L6060, WSM
9-S71

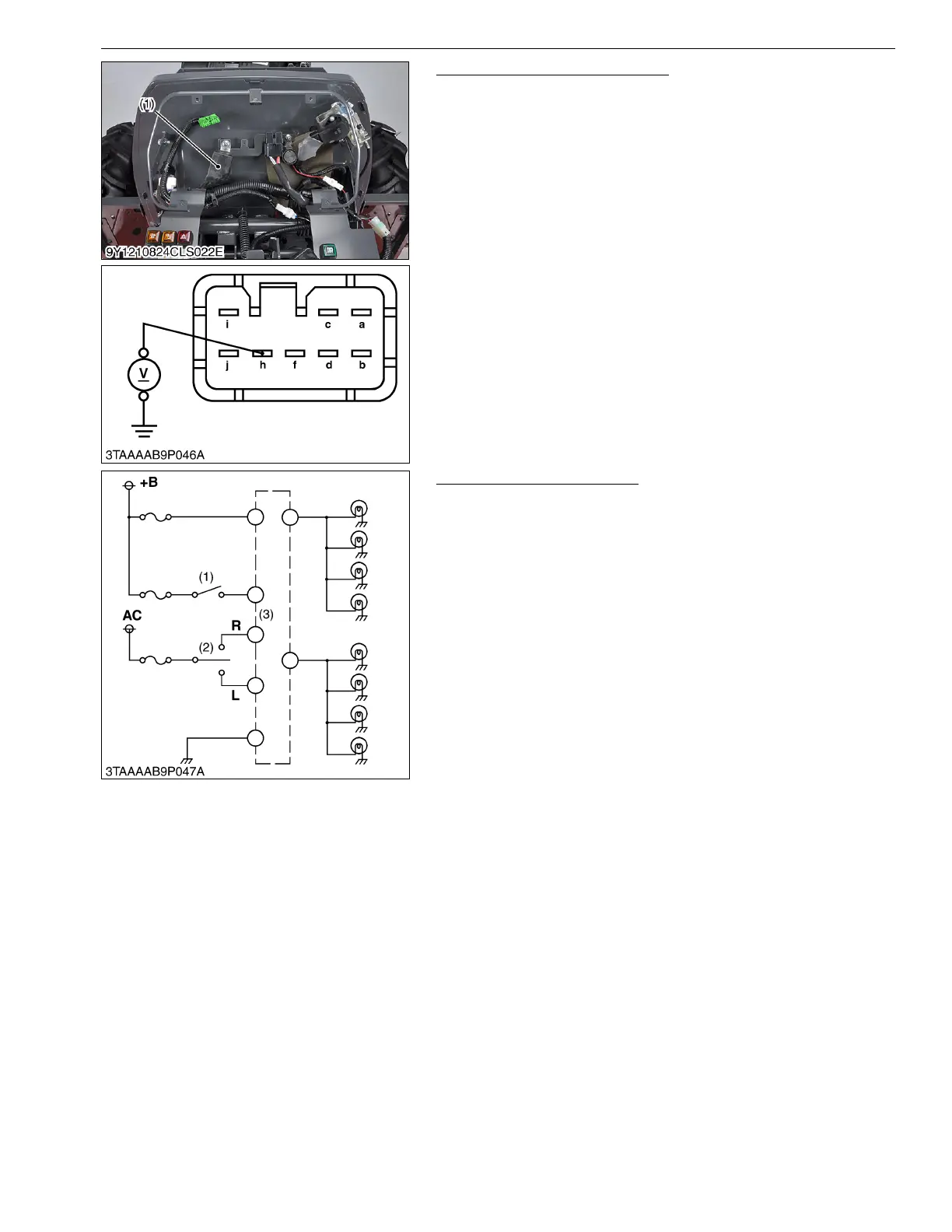

Flasher Unit Connector Voltage
1. Remove the instrument panel.
2. Disconnect the connector from the flasher unit (1).
3. Measure the voltage with a voltmeter across the h terminal and
chassis.
4. If the voltage differ from the battery voltage, the wiring harness
is faulty.
9Y1210824ELS0090US0
Flasher Unit Actuation Test
1. Set the hazard switch to the "ON" position, and make sure the
hazard light gives 60 to 85 flashes for a minute.
2. With the main switch and the hazard switch at the "ON"
positions, respectively, move the turn signal switch to the left.
Make sure that the right-hand light stays on and the left-hand
light gives flashes earlier (by about 20 flashes) than when the
hazard lamp is activated. Then move the turn signal switch to
the right and make sure the corresponding actions take place.
3. Now set the main switch to the "ON" position and move the turn
signal switch alone. Make sure the same actions as above
result.
4. If both the hazard switch and the turn signal switch function but
the above actions do not take place, replace the flasher unit with
new one.
9Y1210824ELS0091US0
(1) Flasher Unit a : Frame Earth
b : Hazard Input
c : Vacant
d : Turn Signal (Left) Input
f : Turn Signal (Right) Output
h : Battery
i : Turn Signal (Left) Output
j : Turn Signal (Right) Input
(1) Hazard Switch
(2) Turn Signal Switch
(3) Flasher Unit
